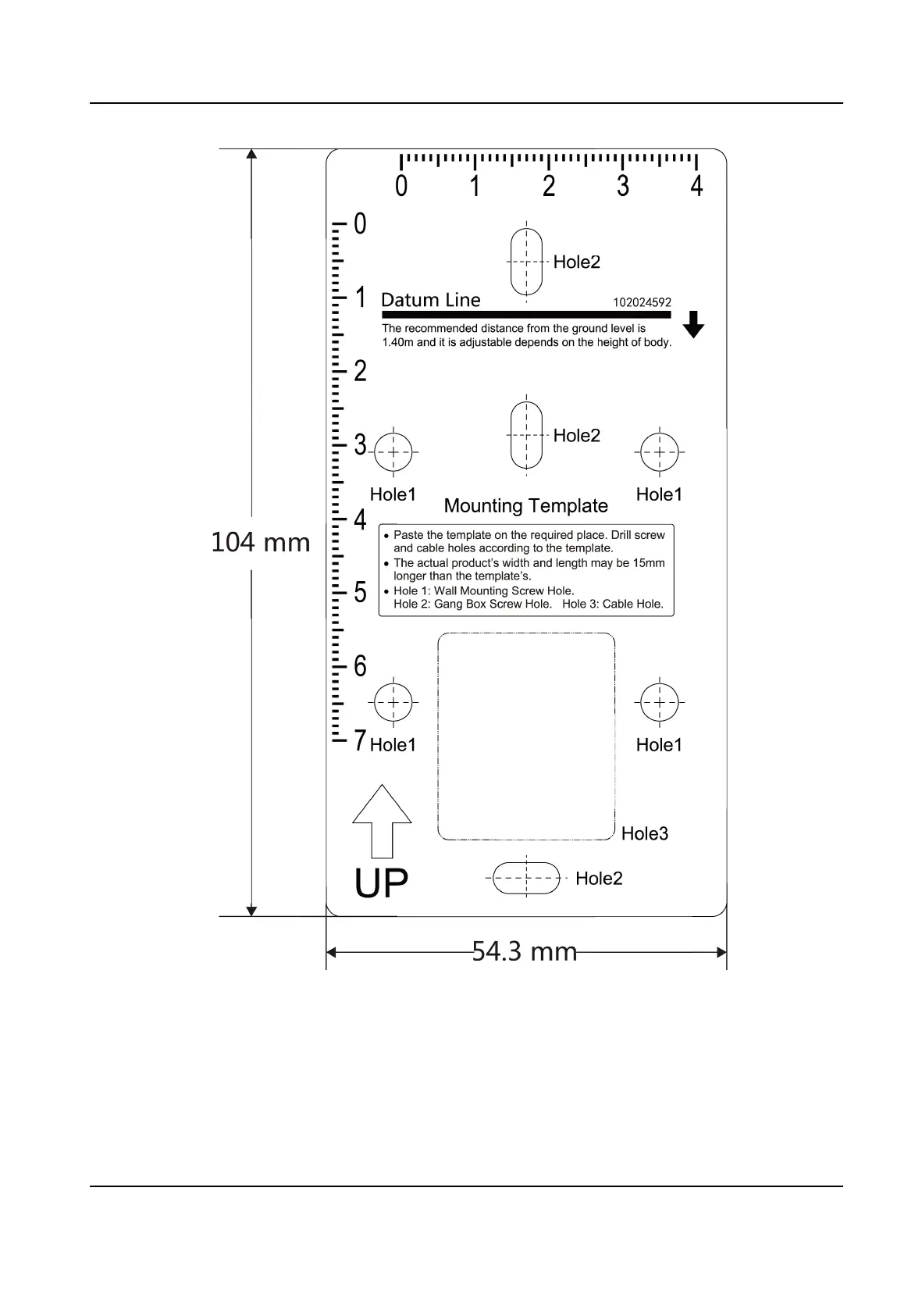

Figure 3-7 Mounng Template
2. Drill holes on the w
all or other surface according to the instrucons on the mounng template.
3. Route the cable through the cable hole of the mounng plate, and connect to corresponding
external devices' cables.
4. Align the holes to the mounng plate and secure the mounng plate on the wall with the 4
supplied screws.
DS-K1T341A Series Face
Recognion Terminal User Manual
8
