HIKVISION DS-KB8113-IME1(B) Series User Manual

2.2 Wiring Descripon
2.2.1 Door Lock Wiring
Terminal NC/COM is set as default for connecng magnec lock/electric bolt; terminal NO/ COM is
set as default for connecng electric strike.
To connect electric lock, it is required to set the output of terminal NC/COM/NO to be electric lock
via Batch
Conguraon Tool or iVMS-4200 client soware or the web browser.

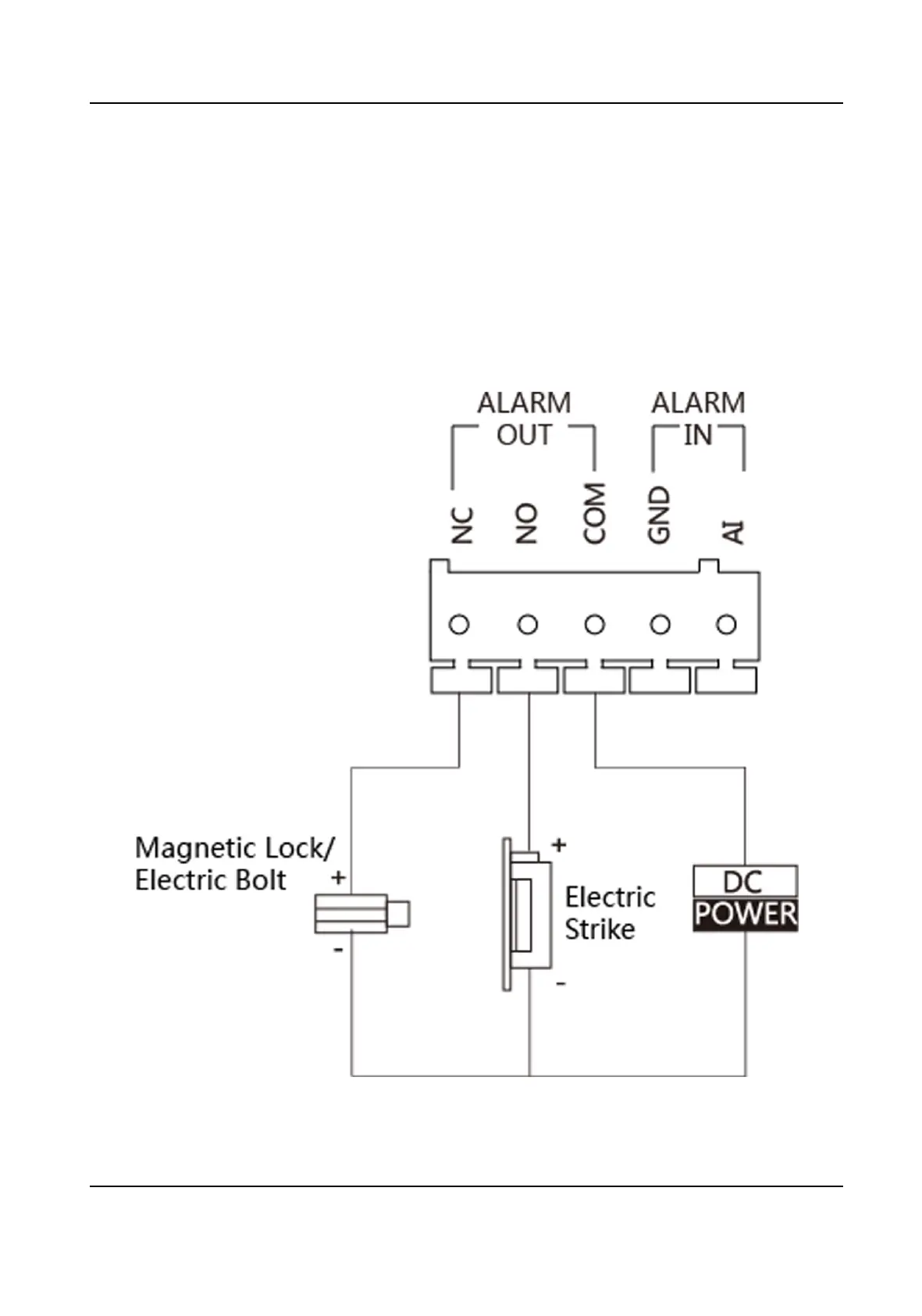

Figure 2-2 Door Lock Wiring
DS-KB8113-IME1(B) Series Vandal-Resistant Door Staon User Manual
4

HIKVISION DS-KB8113-IME1(B) Series Specifications

General

Brand	HIKVISION
Model	DS-KB8113-IME1(B) Series
Category	Intercom System
Language	English
