Chapter 3 Door Staon Installaon
3.1 Wall Mounng Plate
To install the door staon onto the wall, you are required to use a matched mounng plate.

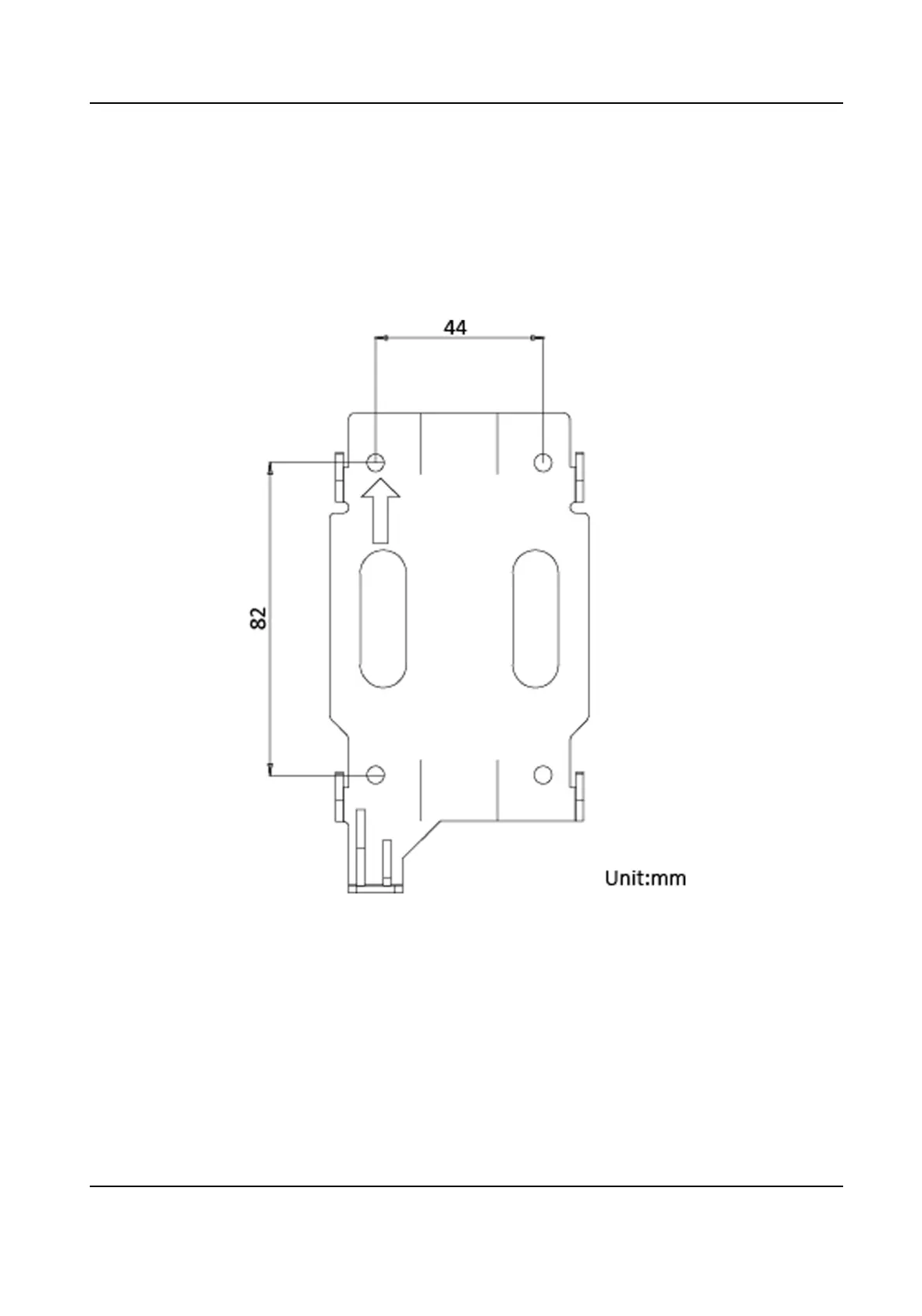

Figure 3-1 Wall Mounng Plate
3.2 Wall
Mounng
Steps
1.
Fix the wall
mounng plate to the wall with 4 expansion screws.
