HIKVISION DS-KB8113-IME1(B) Series User Manual

2.2.2 Door Contact Wiring
To connect door contact, it is required to set the output of terminal AI to be door status via Batch
Conguraon Tool or iVMS-4200 client soware or the web browser.

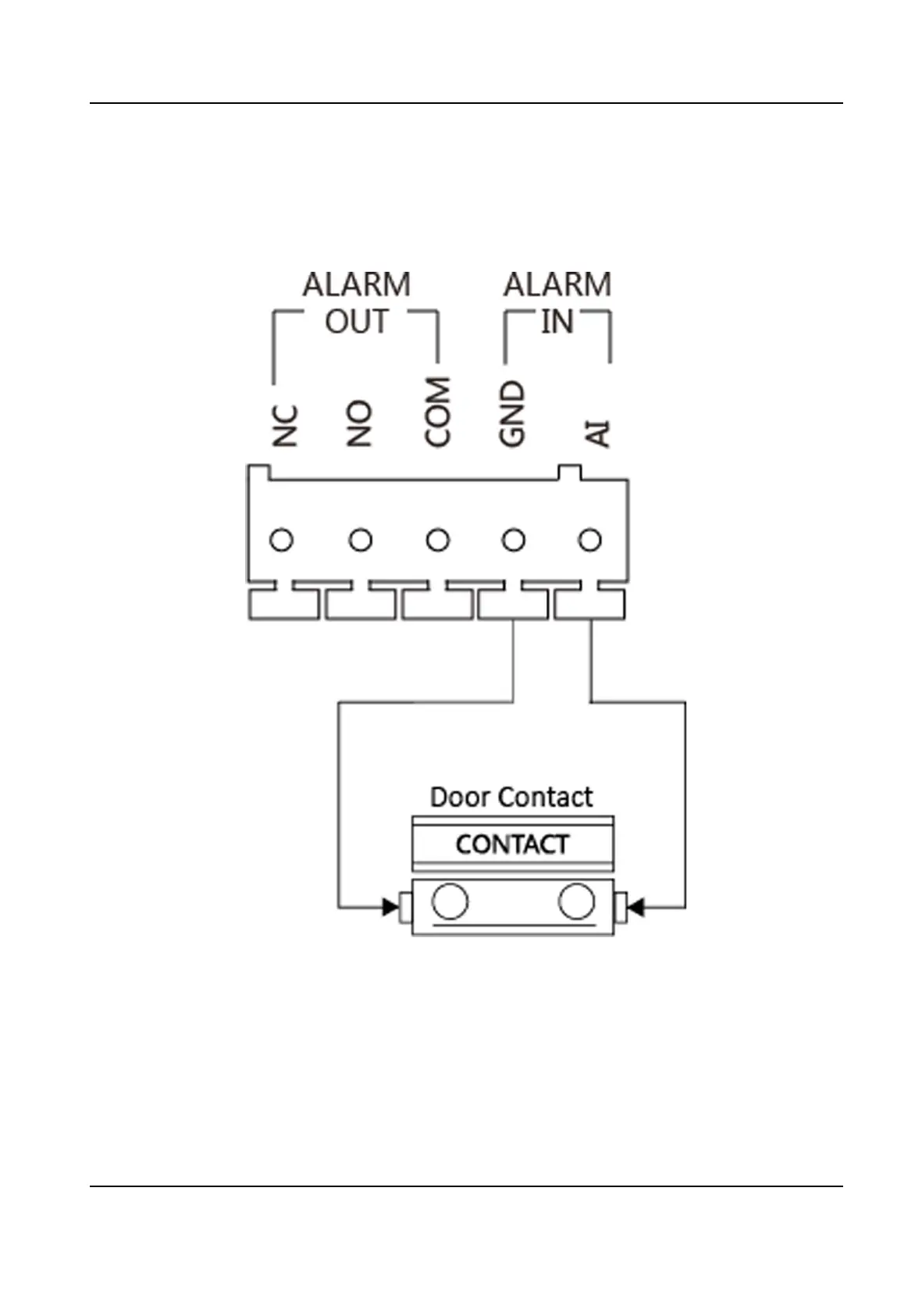

Figure 2-3 Door Contact Wiring
2.2.3 Exit
Buon Wiring
To connect exit buon, it is required to set the output of terminal AI to be door status via Batch
Conguraon Tool or iVMS-4200 client soware or the web browser.
DS-KB8113-IME1(B) Series Vandal-Resistant Door Staon User Manual
5
