HIKVISION DS-KD3002-VM User Manual

Video Intercom Door Station·User Manual
15
 Please set the DIP switch first before connecting the card reader.
 If the DIP switch should be configured when the card reader is power-on, please
reboot the card reader after configuring the DIP switch.
 The DIP switch description is shown in the following table:
No.
Description
How to Configure
1-4
Set the RS-485 address
ON: 1
OFF: 0
6
Select Wiegand protocol
or RS-485 protocol
ON: Wiegand
OFF: RS-485
7
Set the Wiegand protocol
(It is invalid when setting
OFF in 6.)
ON: Wiegand 26
OFF: Wiegand 34

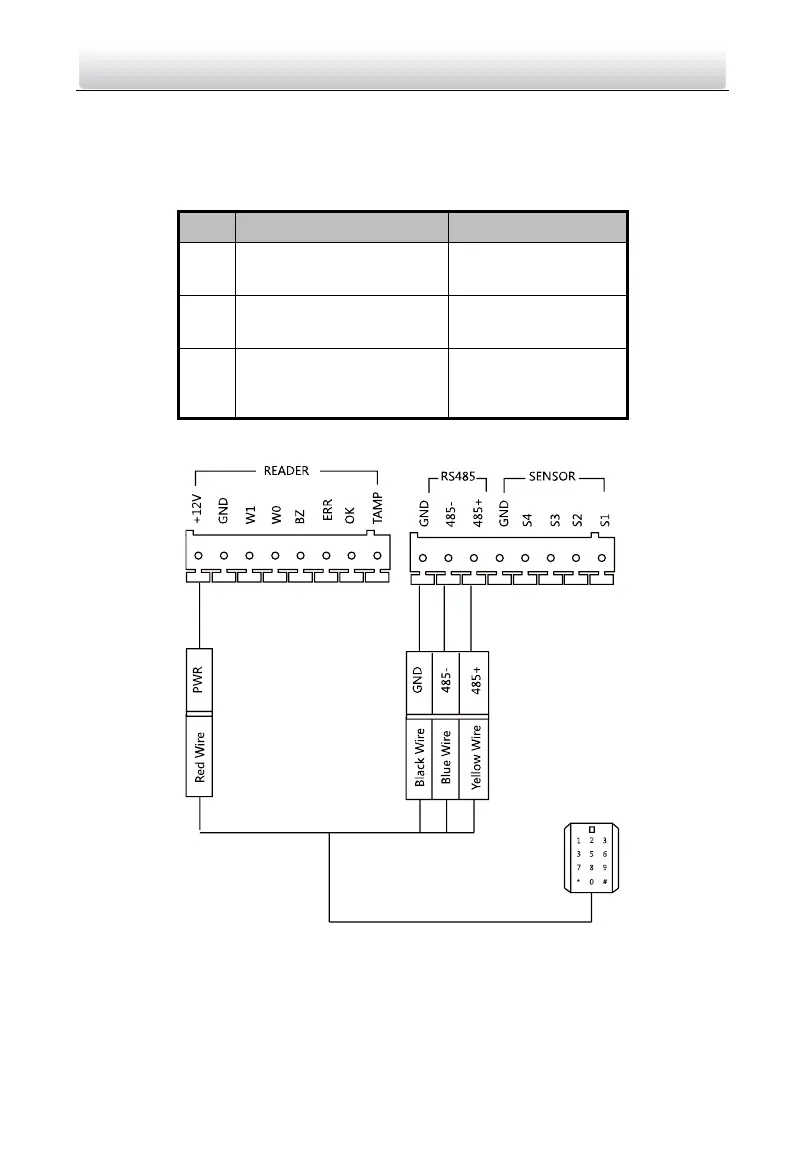

RS-485 Card Reader Wiring
Figure 4-10 RS-485 Card Reader Wiring

HIKVISION DS-KD3002-VM Specifications

General

Operating system installed	Linux
Display diagonal	3.5 \
Display resolution	480 x 320 pixels
Display technology	LCD/TFT
Video formats supported	H.264
Megapixel	1.3 MP
Sensor type	CMOS
Maximum frame rate	30 fps
Supported video modes	720p
Maximum video resolution	1280 x 720 pixels
Proper use	Outdoor
Product color	Black, White
Placement supported	Vertical
Outdoor unit housing material	Aluminum
International Protection (IP) code	IP65
Indoor unit included	No
Outdoor unit included	Yes
Speakerphone	-
Certification	FCC, IC, CE, C-TICK, REACH, WEEE
Connectivity technology	Wired
Sustainability certificates	RoHS
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, RTSP
Outdoor unit power type	DC
Power consumption (typical)	15 W
Operating temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	10 - 90 %
Voice codecs	G.711u

Weight and Dimensions

Depth	55 mm
Width	124 mm
Height	357 mm
