Video Intercom Door Station·User Manual
49
General
Click the General button to enter device general parameters settings interface. You can
view and edit the device name and device ID.

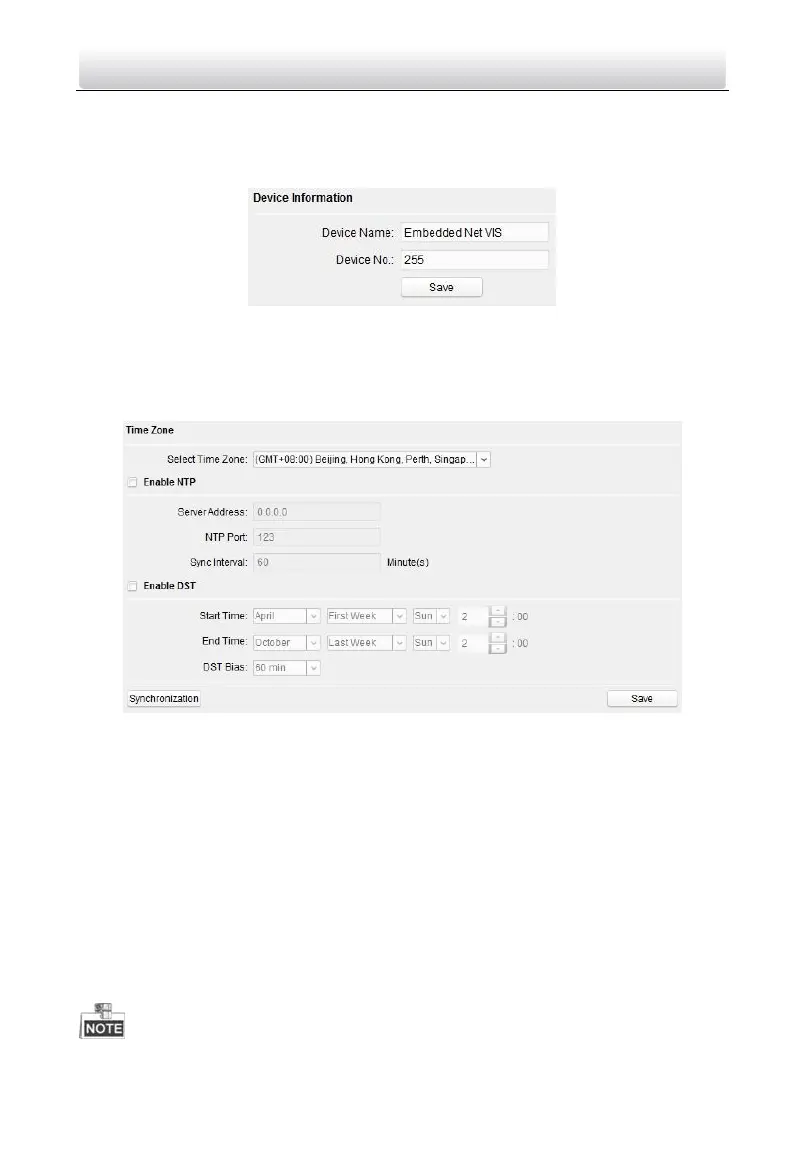

Figure 8-13 General
Time
Steps:
1. Click the Time button to enter the device time settings interface.
Figure 8-14 Time Settings
2. Select Time Zone or Enable NTP.
 Time Zone
1) Select a time zone from the drop-down list menu.
2) Click the Synchronization button.
 NTP
1) Check the checkbox of Enable NTP to enable NTP.
2) Enter the server address, NTP port, and synchronization interval.
 DST
1) Check the checkbox of Enable DST to enable DST.
2) Enter the start time and end time of DST, and set the DST bias.
3. Click the Save button to save and realize the time settings.

HIKVISION DS-KD3002-VM Specifications

General

Operating system installed	Linux
Display diagonal	3.5 \
Display resolution	480 x 320 pixels
Display technology	LCD/TFT
Video formats supported	H.264
Megapixel	1.3 MP
Sensor type	CMOS
Maximum frame rate	30 fps
Supported video modes	720p
Maximum video resolution	1280 x 720 pixels
Proper use	Outdoor
Product color	Black, White
Placement supported	Vertical
Outdoor unit housing material	Aluminum
International Protection (IP) code	IP65
Indoor unit included	No
Outdoor unit included	Yes
Speakerphone	-
Certification	FCC, IC, CE, C-TICK, REACH, WEEE
Connectivity technology	Wired
Sustainability certificates	RoHS
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, RTSP
Outdoor unit power type	DC
Power consumption (typical)	15 W
Operating temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	10 - 90 %
Voice codecs	G.711u

Weight and Dimensions

Depth	55 mm
Width	124 mm
Height	357 mm
