DS-KV8x13-WME1 Video Intercom Villa Door Station User Manual
UM DS-KV8x13-WME1 Villa Door Station 062321NA 13
2. Terminal and Wiring Description
2.1. Terminal Description

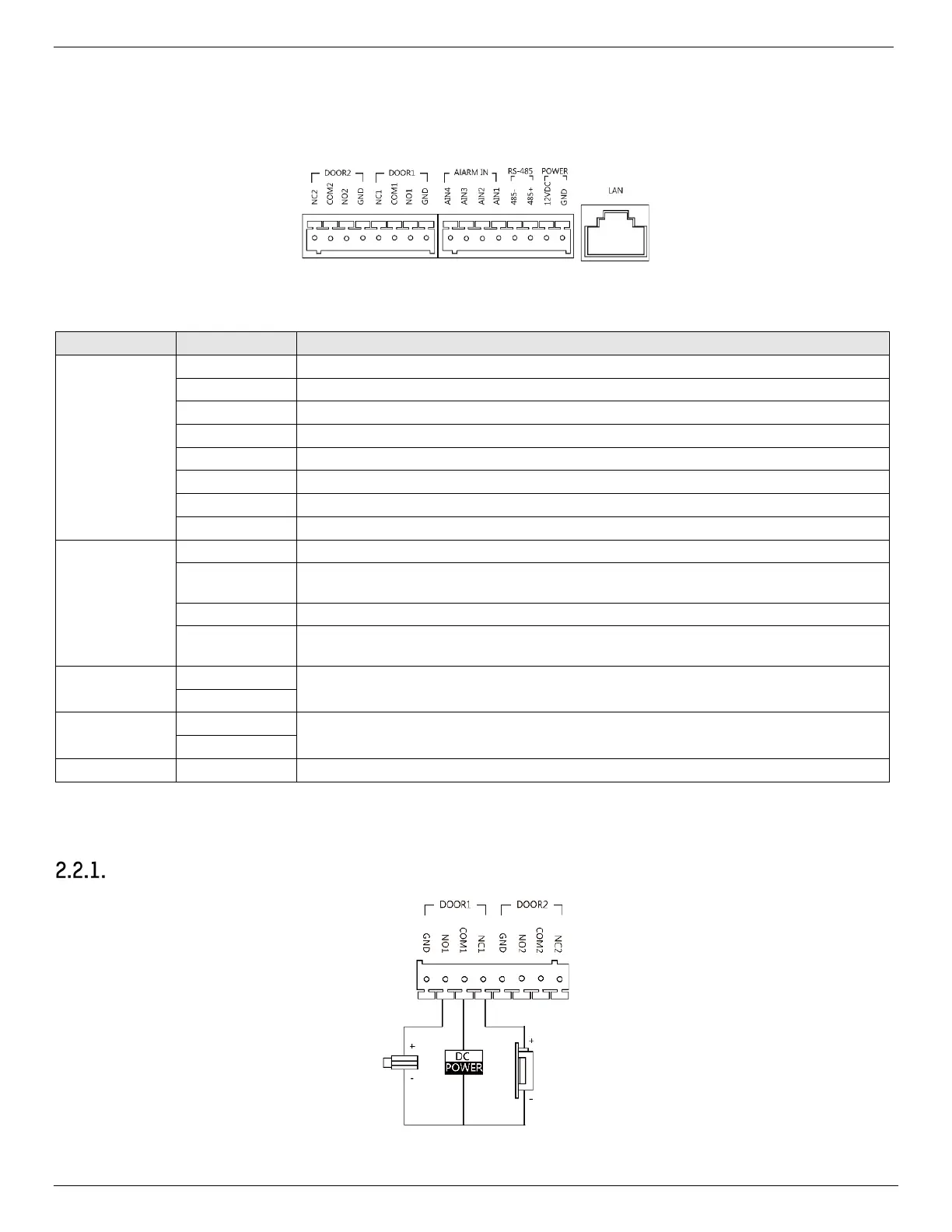

Figure 4, Terminal Description
Table 2-1 Description of Terminal and Interfaces
Name
Interface
Description
DOOR
NC2
Door Lock Relay Output 2 (NC)
COM2
Common Interface
NO2
Door Lock Relay Output 2 (NO)
GND
Grounding
NC1
Door Lock Relay Output 1 (NO)
COM1
Common Interface
NO1
Door Lock Relay Output 1 (NO)
GND
Grounding
ALARM IN
AI1
Alarm Input 1 (for Door Contact access)
AI2
Alarm Input 2 (for Door Contact access)
NOTE: Before accessing the Door Contact, select Input as Door Status in the I/O Settings page
AI3
Alarm Input 3 (for Exit Button access)
AI4
Alarm Input 4 (for Exit Button access)
NOTE: Before accessing the Exit Button, select Input as Exit Button in the I/O Settings page
RS-485
485+
RS-485 Communication Interface
485-
Power Input
12 VDC
12 VDC Input
GND
Network
LAN
Network Interface
2.2. Wiring Description
Door Lock Wiring
Figure 5, Door Lock Wiring

HIKVISION DS-KV8113-WME1 Specifications

General

Color	Yes
Number of buttons	4 buttons
Connectivity technology	Wired
Number of displays supported	-
Megapixel	2 MP
Maximum frame rate	30 fps
Supported video modes	720p, 1080p
Viewing angle, vertical	75 °
Maximum video resolution	1920 x 1080 pixels
Viewing angle, horizontal	129 °
Voice codecs	G.711u
LED type	IR
Night vision distance	3 m
Outdoor unit power type	DC
AC adapter output voltage	12 V
Power consumption (typical)	10 W
Operating temperature (T-T)	-40 - 53 °C
Operating relative humidity (H-H)	10 - 95 %
Display diagonal	- \
Proper use	Outdoor
Product color	Black, Grey
Placement supported	Vertical
International Protection (IP) code	IP65
Package depth	120 mm
Package width	140 mm
Package height	220 mm
Indoor unit included	No
Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, RSTP
