HIKVISION DS-KV8113-WME1 User Manual

DS-KV8x13-WME1 Video Intercom Villa Door Station User Manual
UM DS-KV8x13-WME1 Villa Door Station 062321NA 20
5. Remote Configuration via Web
5.1. Live View
Enter the device IP address in the browser address bar, and press Enter to enter the login page.
Enter the user name and password and click Login, or click Live View, to enter the Live View page.

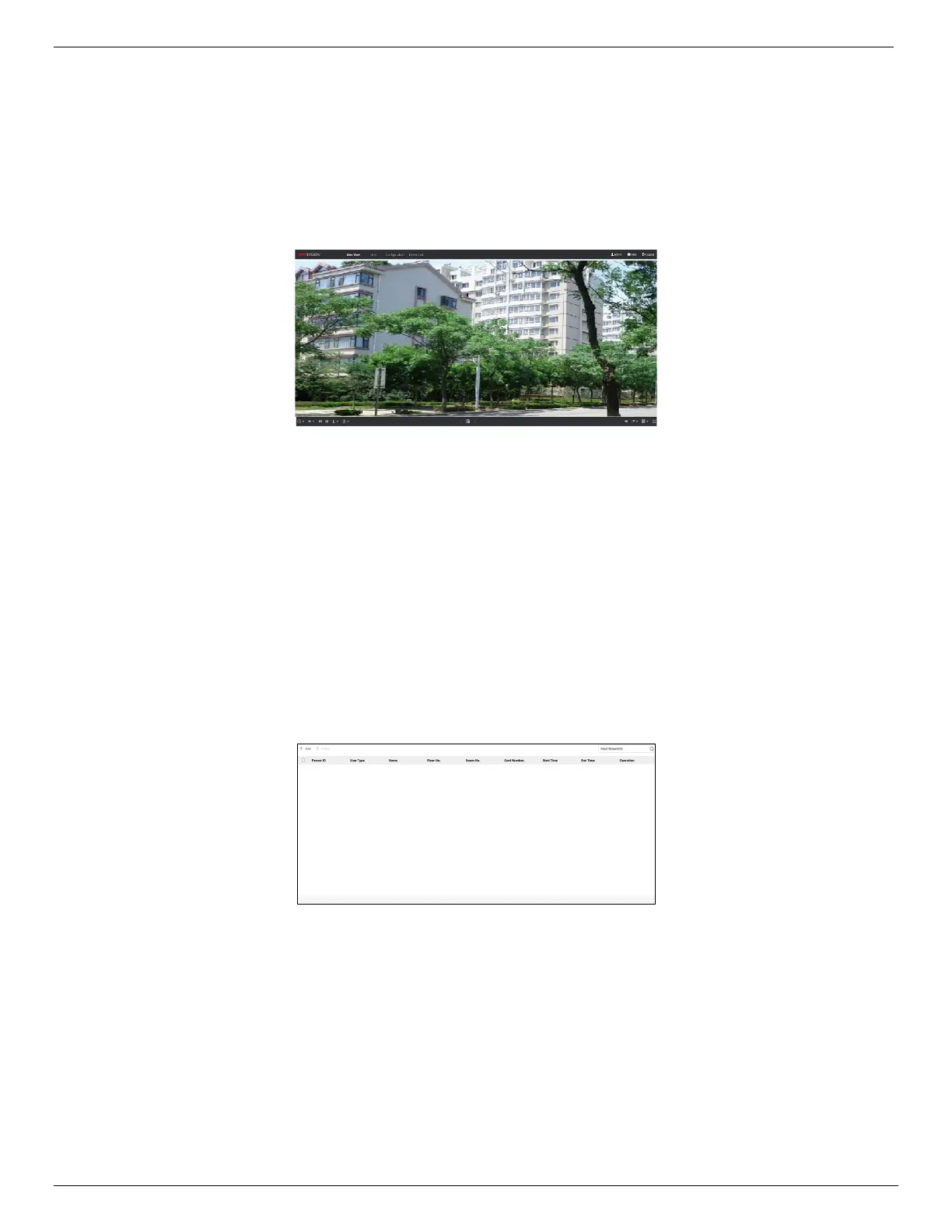

Figure 14, Live View
• You can start/stop live view, capture, record, audio on/off, two-way audio, etc.
• The stream type can be set as main stream or sub stream.
• For IE (Internet Explorer) or Google users, the device supports two-way audio communication.
NOTE: The Live View function may vary by model. Please refer to the actual product.
5.2. User Management
You can add, delete, or search the user information. Click User to enter the settings page.
Figure 15, User Management
• Click Add and enter the Name, Floor No. and Room No. to add.
• Click Edit to modify the user information.
• Check the user box, and click Delete to delete the selected user.
• Enter the keyword and click the search icon. The information will display in the list.
NOTE: The User Management function may vary by model. Please refer to the actual
product.

HIKVISION DS-KV8113-WME1 Specifications

General

Color	Yes
Number of buttons	4 buttons
Connectivity technology	Wired
Number of displays supported	-
Megapixel	2 MP
Maximum frame rate	30 fps
Supported video modes	720p, 1080p
Viewing angle, vertical	75 °
Maximum video resolution	1920 x 1080 pixels
Viewing angle, horizontal	129 °
Voice codecs	G.711u
LED type	IR
Night vision distance	3 m
Outdoor unit power type	DC
AC adapter output voltage	12 V
Power consumption (typical)	10 W
Operating temperature (T-T)	-40 - 53 °C
Operating relative humidity (H-H)	10 - 95 %
Display diagonal	- \
Proper use	Outdoor
Product color	Black, Grey
Placement supported	Vertical
International Protection (IP) code	IP65
Package depth	120 mm
Package width	140 mm
Package height	220 mm
Indoor unit included	No
Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, RSTP
