DS-KV8x13-WME1 Video Intercom Villa Door Station User Manual
UM DS-KV8x13-WME1 Villa Door Station 062321NA 17

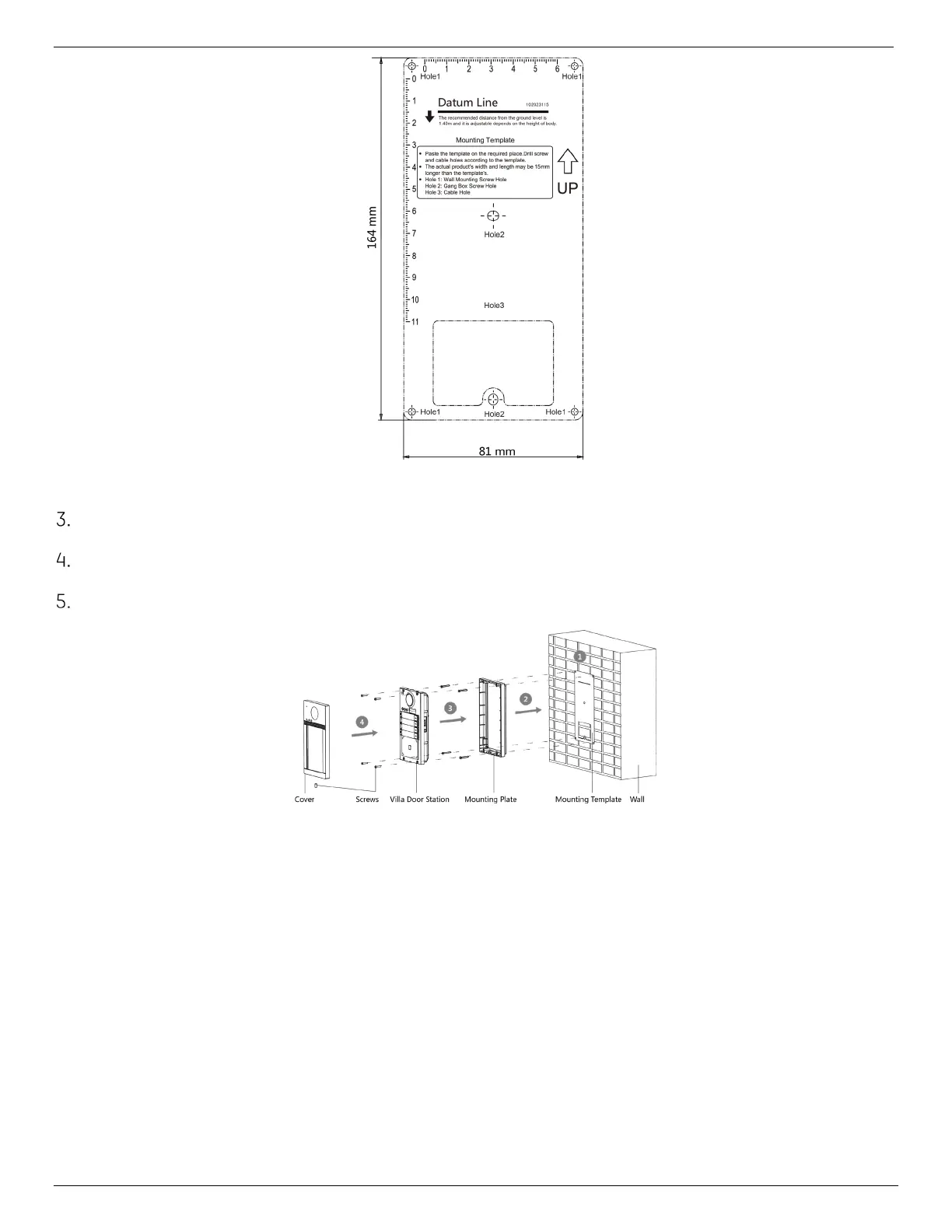

Figure 12, Mounting Template
Secure the mounting plate on the wall with four supplied screws according to the screw holes.
Secure the device on the mounting plate with the four supplied set screws.
Fix the cover onto the device with the screw.
Figure 13, Surface Mounting without Protective Shield

HIKVISION DS-KV8113-WME1 Specifications

General

Color	Yes
Number of buttons	4 buttons
Connectivity technology	Wired
Number of displays supported	-
Megapixel	2 MP
Maximum frame rate	30 fps
Supported video modes	720p, 1080p
Viewing angle, vertical	75 °
Maximum video resolution	1920 x 1080 pixels
Viewing angle, horizontal	129 °
Voice codecs	G.711u
LED type	IR
Night vision distance	3 m
Outdoor unit power type	DC
AC adapter output voltage	12 V
Power consumption (typical)	10 W
Operating temperature (T-T)	-40 - 53 °C
Operating relative humidity (H-H)	10 - 95 %
Display diagonal	- \
Proper use	Outdoor
Product color	Black, Grey
Placement supported	Vertical
International Protection (IP) code	IP65
Package depth	120 mm
Package width	140 mm
Package height	220 mm
Indoor unit included	No
Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, RSTP
