HIKVISION DS-PEA1-21 - Power Supply Wiring; Network Wiring

Panic Alarm Station User Manual
11

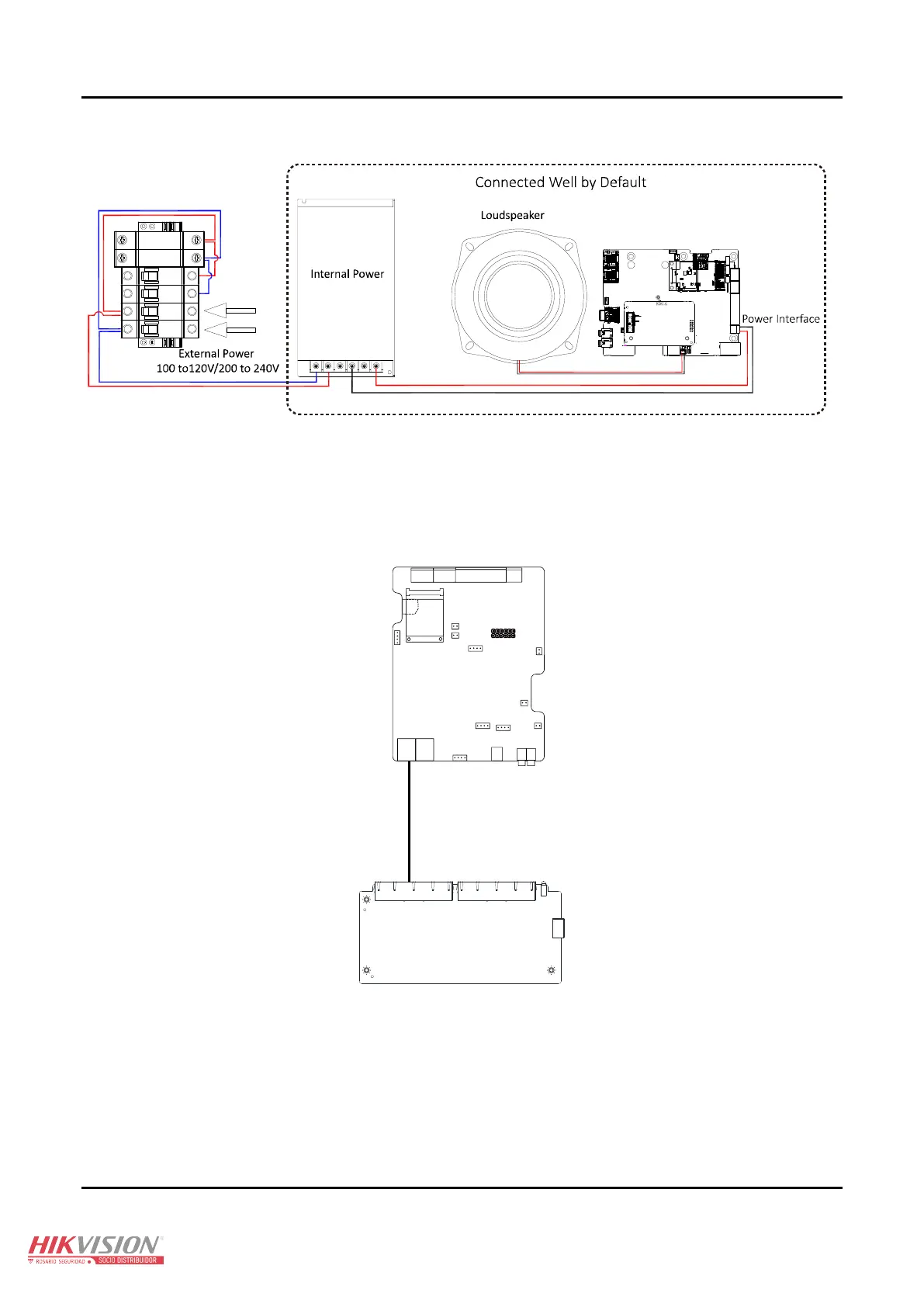

Power Supply Wiring 2.3.1
Power Supply Wiring Figure 2-5
Network Wiring 2.3.2
Switch
Power Interface
Mainboard
Port
1
Port
2
Network Wiring Figure 2-6
