HIKVISION DS-PHA64-LP User Manual

17

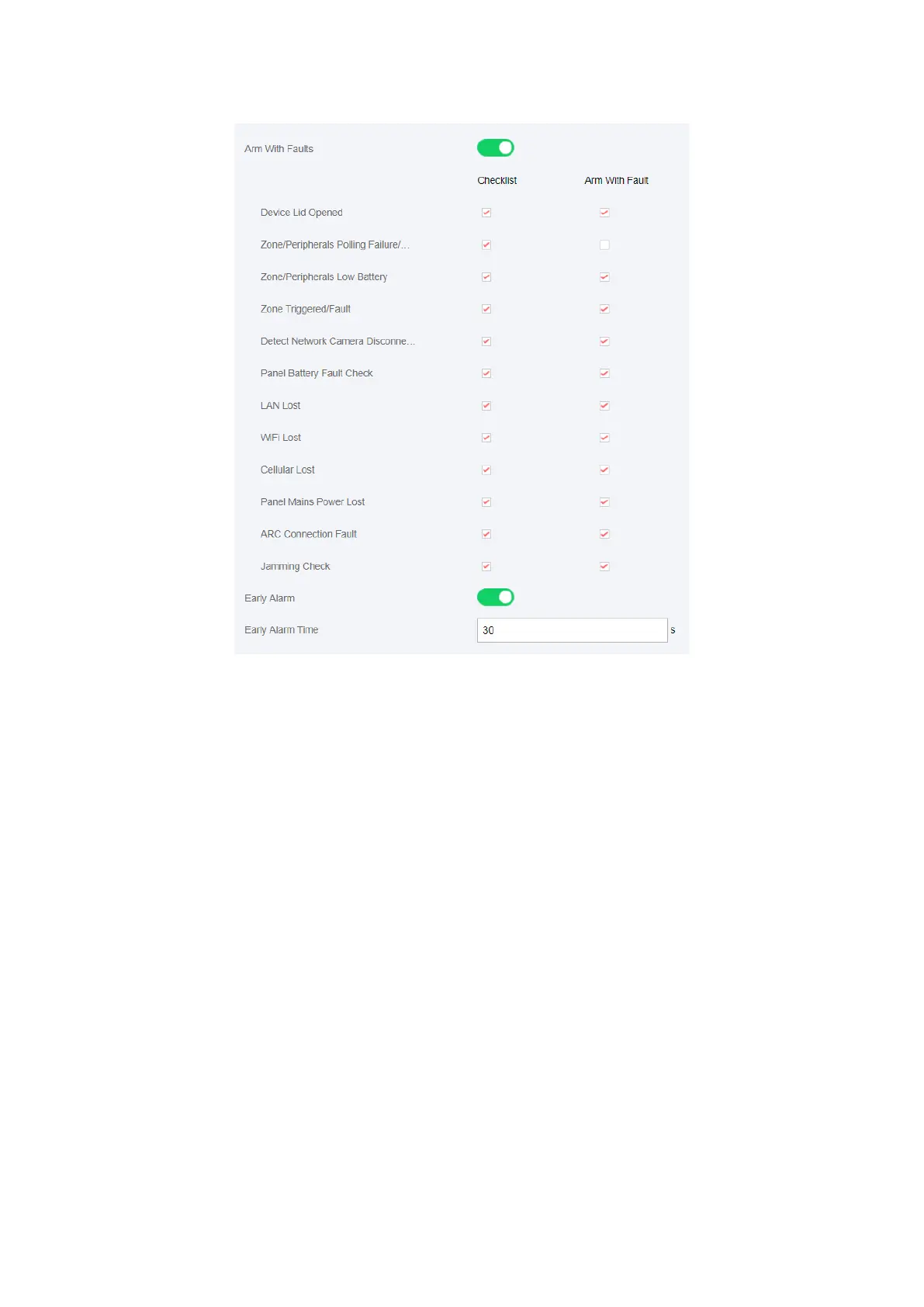

You can set the following parameters:
Arm with Fault
Check the faults in the Arm with Fault list, and the device will not stop the arming process when
faults occurred.
Fault Checklist
The system will check if the device has the faults in the checklist during the arming process.
Early Alarm
A delay zone is triggered first, and the area is in the "Entry Delay" stage. During the delay time
period, an instant zone is triggered. At this time, the area enters the early alarm stage. There
are control panel voice alarm and local sounder alarm, but no alarm message is pushed. If the
zone is disarmed or silence before both the early alarm and entry delay end, the alarm message
will not be reported. Otherwise, both the delayed zone and the instant zone will alarm.

HIKVISION DS-PHA64-LP Specifications

General

Wi-Fi	Yes
Wi-Fi frequency	2.4 GHz
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Number of alarm zones	64
Connectivity technology	Wired & Wireless
Operating temperature (T-T)	-10 - 40 °C
Number of simultaneous users	62 user(s)
Operating relative humidity (H-H)	10 - 90 %
Number of simultaneously connected devices (max)	-
Batteries included	No
Number of door/window sensors	- pc(s)
Mounting type	Wall
Product color	White
Housing material	Plastic
Battery life	36 h
Alarm current	2000 mA
Input voltage	100 - 240 V
Battery voltage	12 V
Battery capacity	7000 mAh

Weight and Dimensions

Alarm control panel weight	997 g
Alarm control panel dimensions (W x D x H)	261 x 86.4 x 199 mm
