HIKVISION DS-PHA64-LP User Manual

21
4. Click OK.
5. Optional: Click the Lock icon to unlock the locked module.
3.1.2 Device Management
You can manage the enrolled peripherals including detector, sounder, keypad, etc. in this section.
Zone
You can set the zone parameters on the zone page.
Steps

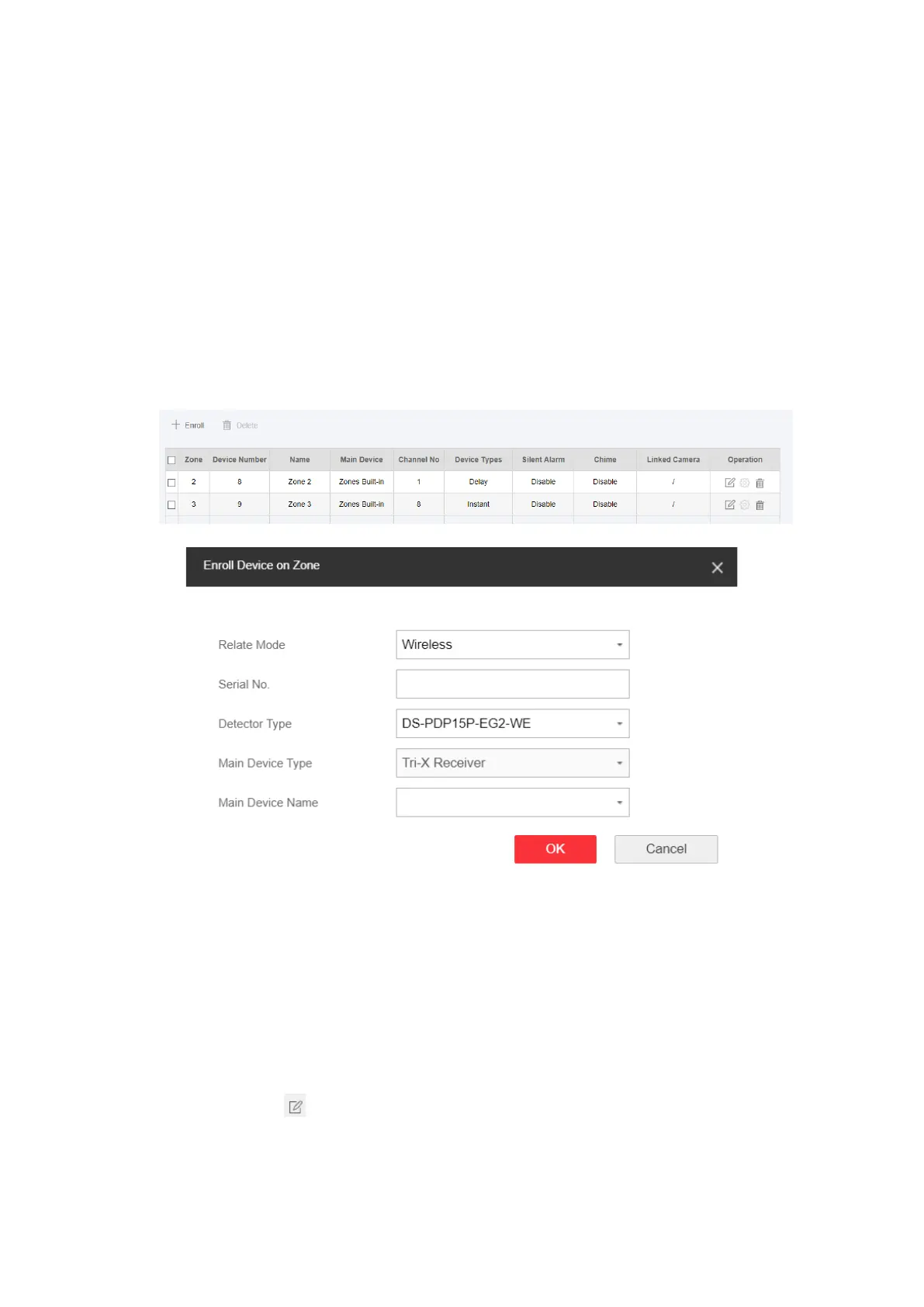

1. Click Device → Zone to enter the Zone page.
2. Click Enroll to add a zone.
3. Select Relate Mode.
Wireless
Enter Serial Number, and select Detector Type. Select Main Device Type and Main Device
Name. Click OK, it will start enrolling. Power on the detector and finish configuration in the
pop-up page. Click OK to add a wireless zone.
Wired
Select Main Device Type. Select Main Device Name and Channel. Click OK, it will start
enrolling. Finish configuration in the pop-up page. Click OK to add a wired zone.
4. Select a zone and click to enter the Zone Settings page.

HIKVISION DS-PHA64-LP Specifications

General

Wi-Fi	Yes
Wi-Fi frequency	2.4 GHz
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Number of alarm zones	64
Connectivity technology	Wired & Wireless
Operating temperature (T-T)	-10 - 40 °C
Number of simultaneous users	62 user(s)
Operating relative humidity (H-H)	10 - 90 %
Number of simultaneously connected devices (max)	-
Batteries included	No
Number of door/window sensors	- pc(s)
Mounting type	Wall
Product color	White
Housing material	Plastic
Battery life	36 h
Alarm current	2000 mA
Input voltage	100 - 240 V
Battery voltage	12 V
Battery capacity	7000 mAh

Weight and Dimensions

Alarm control panel weight	997 g
Alarm control panel dimensions (W x D x H)	261 x 86.4 x 199 mm
