Network Traffic Camera User Manual
59
4. Select Capture Type. All and Motor Vehicle are selectable.
All: capture and recognize pedestrian, non-motor vehicle and motor vehicle.
Motor Vehicle: capture and recognize motor vehicle.
5. Draw LPR area.
1) Click Draw LPR Area.
2) (3 lanes for instance) Adjust the position and length of Lane Line 1, Lane Line
2, Lane Line 3, and Lane Right Border.
Notes:
● When drawing lines, you should avoid the overlap among lanes.
● Invalid areas should not be included in the surveillance area.

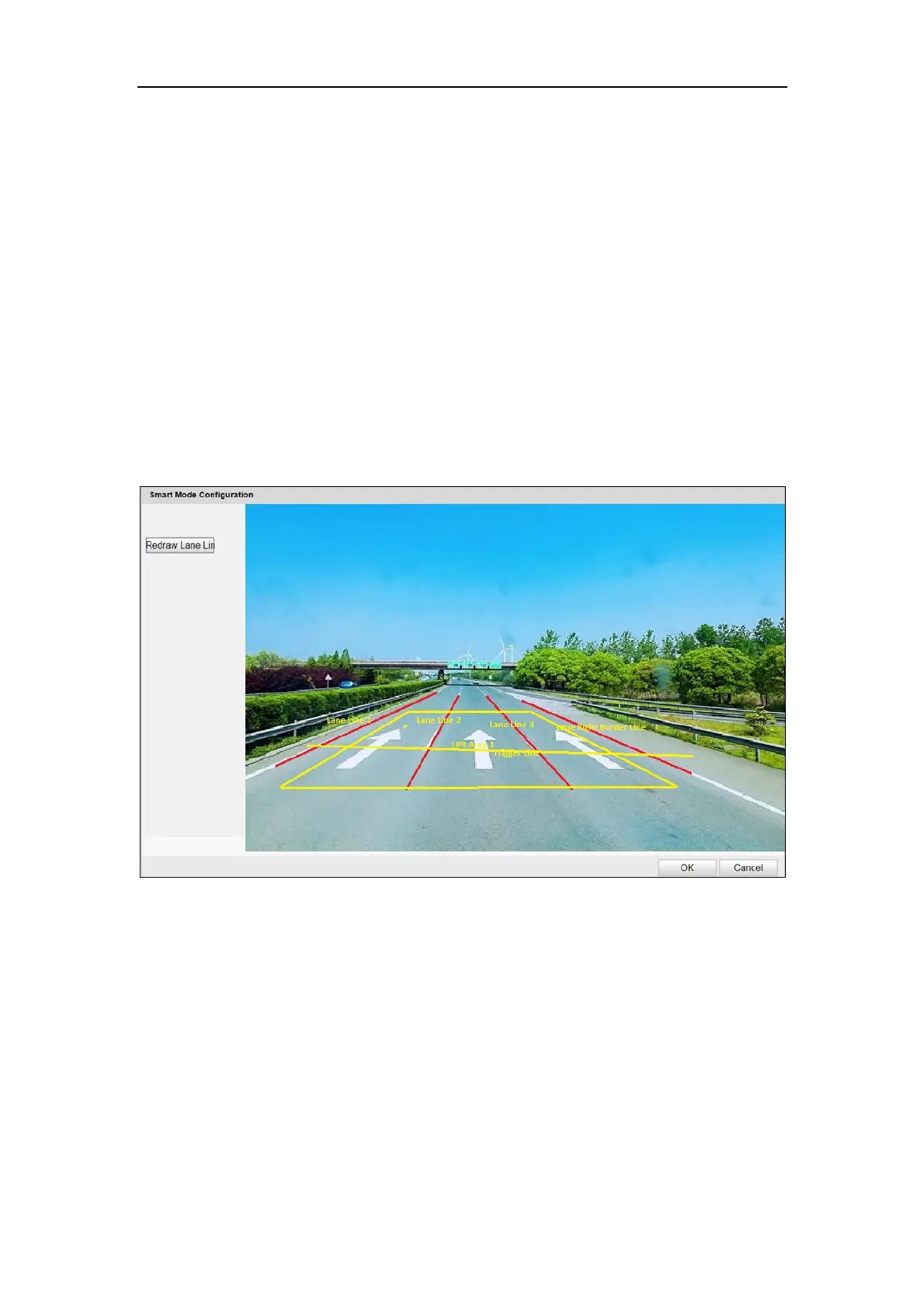

Figure 14-2 Draw LPR Area
3) Save the drawing.
6. Set Lane Direction and Linked Lane No. for lanes.
14.2 License Plate Recognition System
Steps:
1. Go to Configuration > Device Configuration > Application Mode.
2. Select Application Mode as License Plate Recognition System.
To Next Page
