HIKVISION iDS-TCM403-AI User Manual

Network Traffic Camera User Manual
60
3. Select Total Lanes. Only 1 lane is selectable.

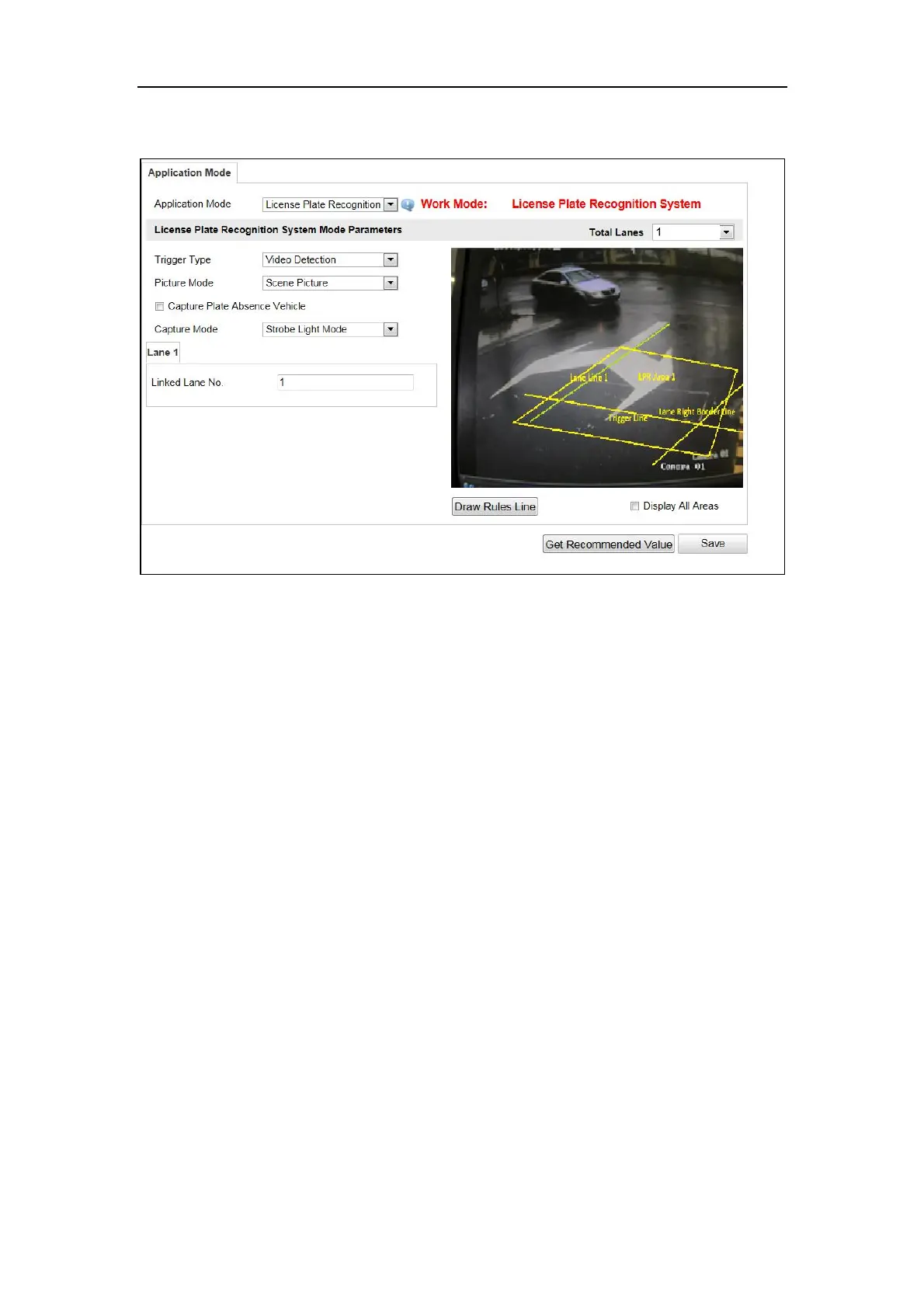

Figure 14-3 License Plate Recognition System Configuration
4. Select Trigger Type. Vehicle Detection, I/O Coil, and RS-485 are selectable.
 Vehicle Detection
1) Select Picture Mode. Scene Picture and Scene Picture + Close-up Picture
are selectable.
2) (Optional) Check Capture Plate Absence Vehicle to capture the vehicle
without license plate.
3) Select Capture Mode. Strobe Light Mode is selectable.
4) Enter the Linked Lane No. ranging from 1 to 99. The lane No. will be
overlaid on the captured picture.
 I/O Coil
1) Select Picture Mode. Scene Picture and Scene Picture + Close-up Picture
are selectable.
2) Enter the Linked Lane No. ranging from 1 to 99. The lane No. will be
overlaid on the captured picture.
3) Select I/O Trigger Default Status. Rising Edge and Falling Edge are
selectable.
