4) Select I/O No. When the coil detects that there is vehicle passing, a rising or
falling edge signal is sent to the linked I/O of the capture unit to trigger
capture.
Note:
The I/O Trigger Default Status and I/O No. should be configured according
to the actual conditions.
RS-485
1) Select Picture Mode. Scene Picture and Scene Picture + Close-up Picture
are selectable.
2) Enter the Linked Lane No. ranging from 1 to 99. The lane No. will be
overlaid on the captured picture.
3) Enter RS-485 Linked Camera No. ranging from 1 to 16. The No. refers to
the RS-485 serial port connected channel No. of the vehicle detector.
5. Draw rules line.
1) Click Draw Rules Line.
2) Check Lane Line, Lane Right Border Line, and Trigger Line.
3) Adjust the position and length of the lines.

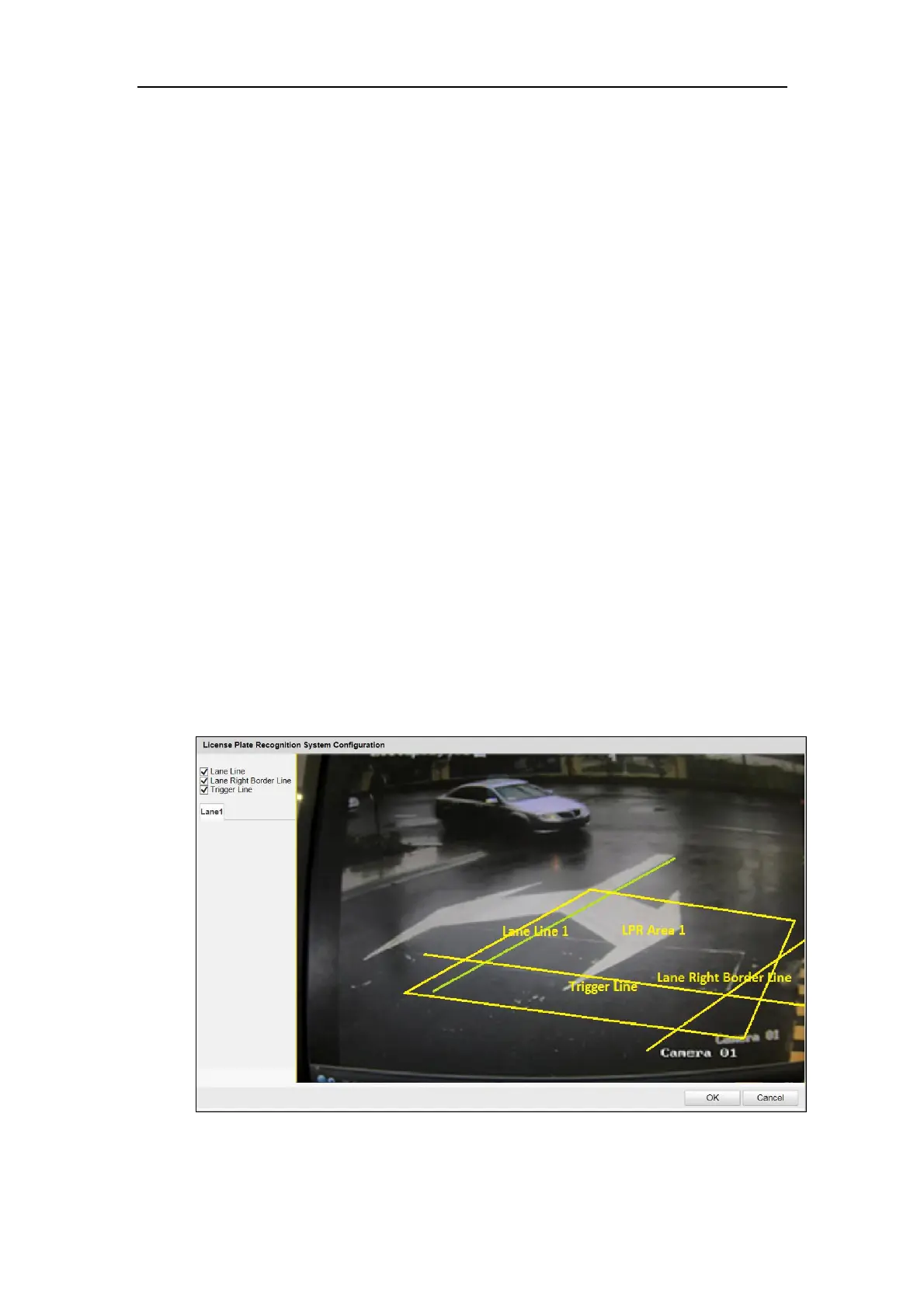

Figure 14-4 Draw Rules Line
4) Click OK to save the drawing.
To Next Page
