Door Magnetic Wiring for DS-KD3002-VM

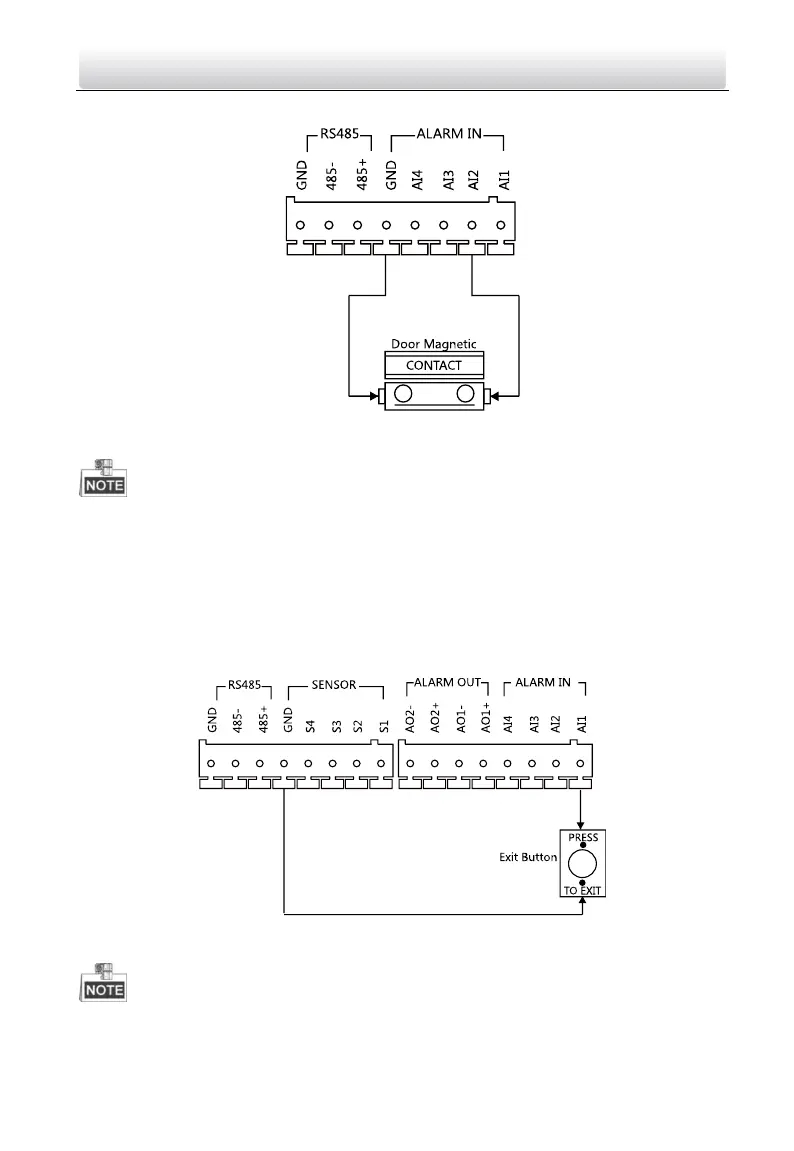

Figure 4-6 Door Magnetic Wiring for DS-KD3002-VM
To connect the door magnetic, it is required to set the output of terminal AI2 to be door
magnetic with Batch Configuration Tool or iVMS-4200.
4.2.3 Exit Button Wiring
Exit Button Wiring for DS-KD8102-V/DS-KD8002-VM
For DS-KD8102-V/DS-KD8002-VM, there are two optional ways of exit button wiring.
Figure 4-7 Exit Button Wiring for DS-KD8102-V/DS-KD8002-VM (1)
