PanoVu Series Camera·Quick Start Guide
8
2 Mounting Application
Before you start:
For cement wall, you need to use the expansion screw to fix the bracket. The mounting hole of
the expansion pipe on the wall should align with the mounting hole on the bracket.
For wooden wall, you can just use the self-tapping screw to fix the bracket.
The wall must be thick enough to install the expansion screws.
Please make sure that the wall is strong enough to withstand more than 8 times the weight of
the camera and the bracket.
2.1 Installing the Bracket
The wall mounting bracket is suitable for 4+1 PanoVu Camera, as shown in 2.1.1. For 7+1 PanoVu
Camera and 8+1 PanoVu Camera, please use the hoop mounting bracket, as shown in 2.1.2.
2.1.1 Installing the Wall Mounting Bracket
When you select a thread bracket, please install the pendent adapter (supplied) between the
bracket and PanoVu Camera. Any mismatch problems shall be taken responsibility by the
user.
The dimension of pendant adapter is G1
1
2
.
For cement wall, you need to use the expansion screw to fix the bracket.
For wooden wall, you can just use the self-tapping screw to fix the bracket.
Please make sure that the wall is strong enough to withstand at least 8 times the weight of
the camera and the bracket.
The wall must be thick enough to mount the expansion screws.
There are several ways to install the PanoVu Camera. In this section, the non-thread bracket
installation is taken as an example. Refer to the following steps for details:
Steps:
1. Get the bracket and screws from the packing box as shown follows.

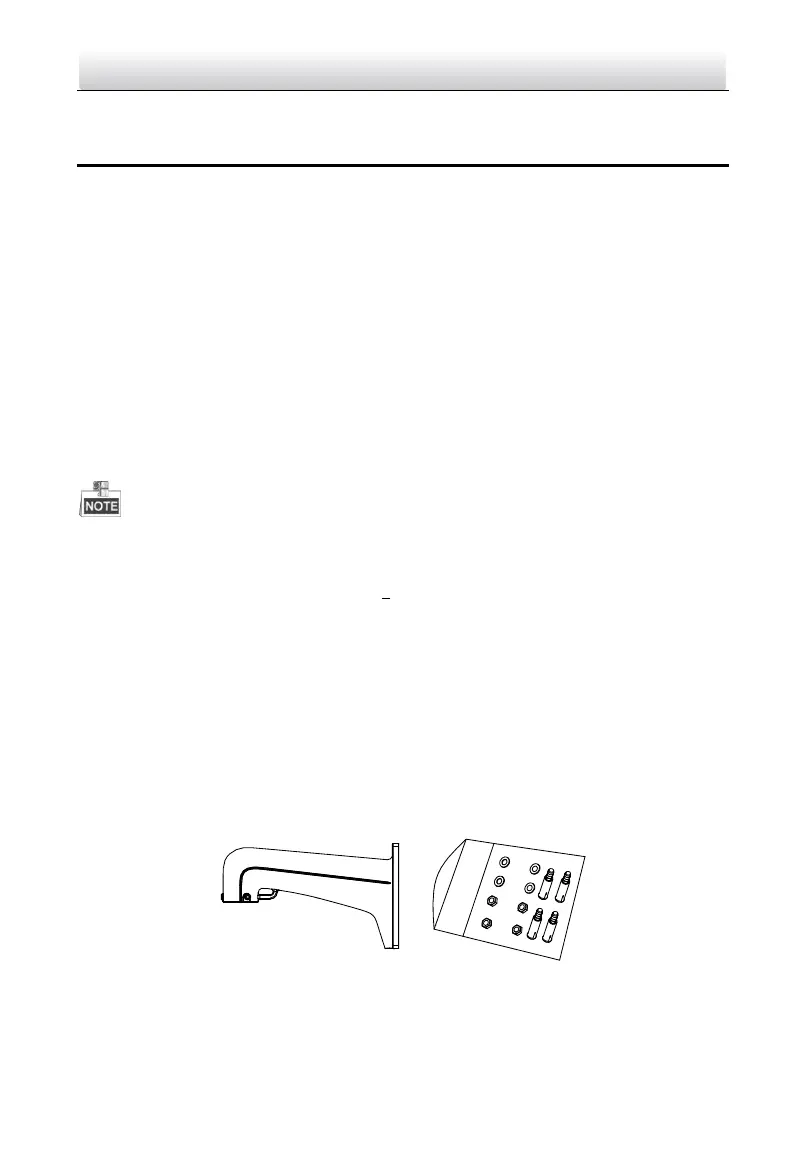

Figure 1-3 Wall Mounting Bracket and Accessories
2. Drill 4 φ9 screw holes in the wall according to the hole locations of the bracket, and then
insert M8 expansion screws into the screw holes.
