Page 68 171051(9) - Hill-Rom® 900 Electric Bed User Manual
PROPRIETARY AND CONFIDENTIAL DRAFT: May 18, 2018
Syringe-driver holder (AC963A)
Safe working load: 15 kg
(1)
Do not position the accessory facing inwards, particularly under the head section
when it is raised, so as to prevent any risk of the accessory obstructing the head
section or siderail when being handled.
This accessory is designed to accept a syringe-driver and is fitted at the head end
of the bed in the sockets provided.

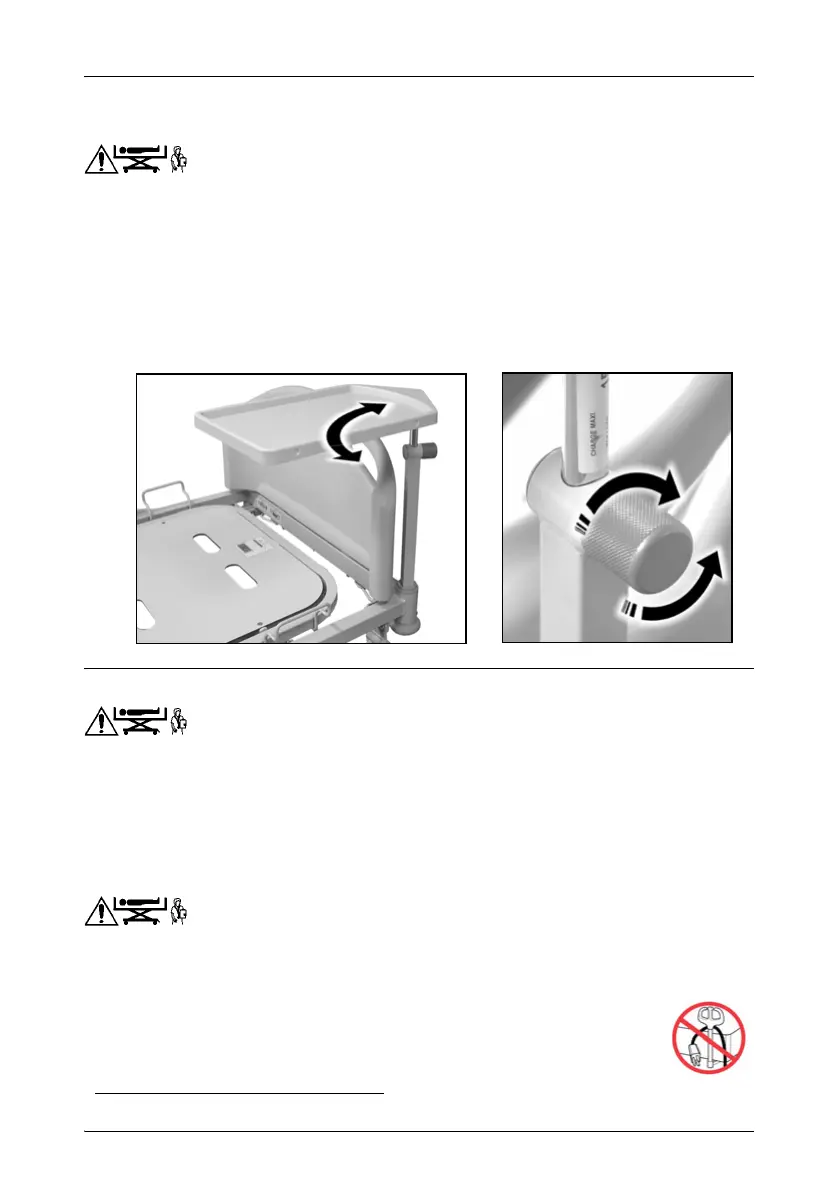

To adjust position of the syringe driver holder:
• hold the tablet and loosen the knob,
• position the tablet as required and then tighten the knob.
Line manager & support (AD286A)**
This accessory must be fitted by an authorized technician.
Please refer to the fitting instructions provided with the accessory when fitting the
accessory.
A Line Manager is on each side of the head end of the bed. The Line Manager
helps to keep lines (such as IV lines, suction lines, etc.) togetherand away from
the articulating frame. The flexibility of the Line Manager lets you bend it in any
direction.
Make sure the lines are not pinched or kinked and there is sufficient slack in the lines
for bed articulations and patient movement. Failure to do so could cause injury or
equipment damage.
• Do not wrap the power cord or communication cable around the line
manager.
1. The safe working load specifications allow for a substantial safety margin.
