WI_Delivery Assist Trng CSM - DIR 50011929 ver F_2020-12-21 6
7. Electrical Safety testing
7.1. EST of the CSM without the APM is not required
7.2. EST of the CSM including the APM is required - Refer to DIR# 20014129 – EST Excel document
7.3. Open the Excel document titled “20014129 – Electrical Safety Testing
9
” – these are the testing measurements
7.4. The PDF document titled “20014129 – Electrical Safety Testing
9
” – this provides the guidelines and is for
reference only
7.5. On the Excel document, open the Product Guidance Tab.
7.6. Use the filter option in Column A and select APM (CSM) (Non-Serviceable)
7.7. For the tests that have Yes under them, refer to the Tab titled Certificate
7.8. Follow the Measurements, Methods and Specifications information for Protective Earth Resistance test and
Leakage Current tests.
Fill out the Delivery Assist Result Summary form at the end of this document with a Pass/Fail for each monitor.
7.9. Plug the mains connector of the CSM into the EST equipment

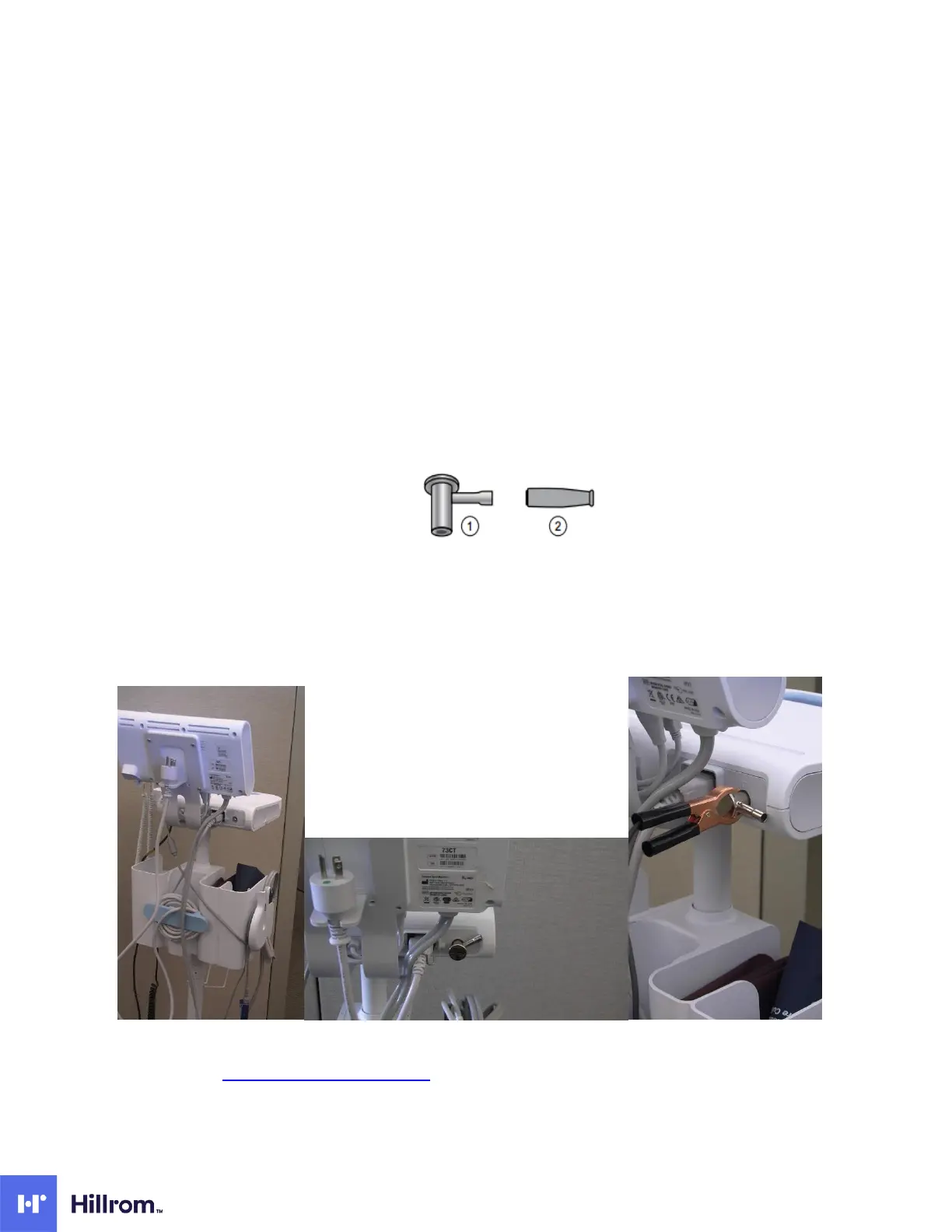

7.10. You will need to source the following Ground Stud Connector to perform this test – it can be ordered in the
HRC Parts-On-Line System under Alpha code DGTF
7.11. Connect the EST ground test lead cable with the ground-lug / EP stud on the CSM (situated next to the mains
connection port) – if using an alligator clip style EST ground lead connector, you will not need item #2 above.
If you need further assistance with the connection set-up and testing, please review the Video on Sharepoint
located here - Electrical Safety Testing Video – the video is using the Connex Vital Signs Monitor (CVSM), but
the process is the same for CSM.
