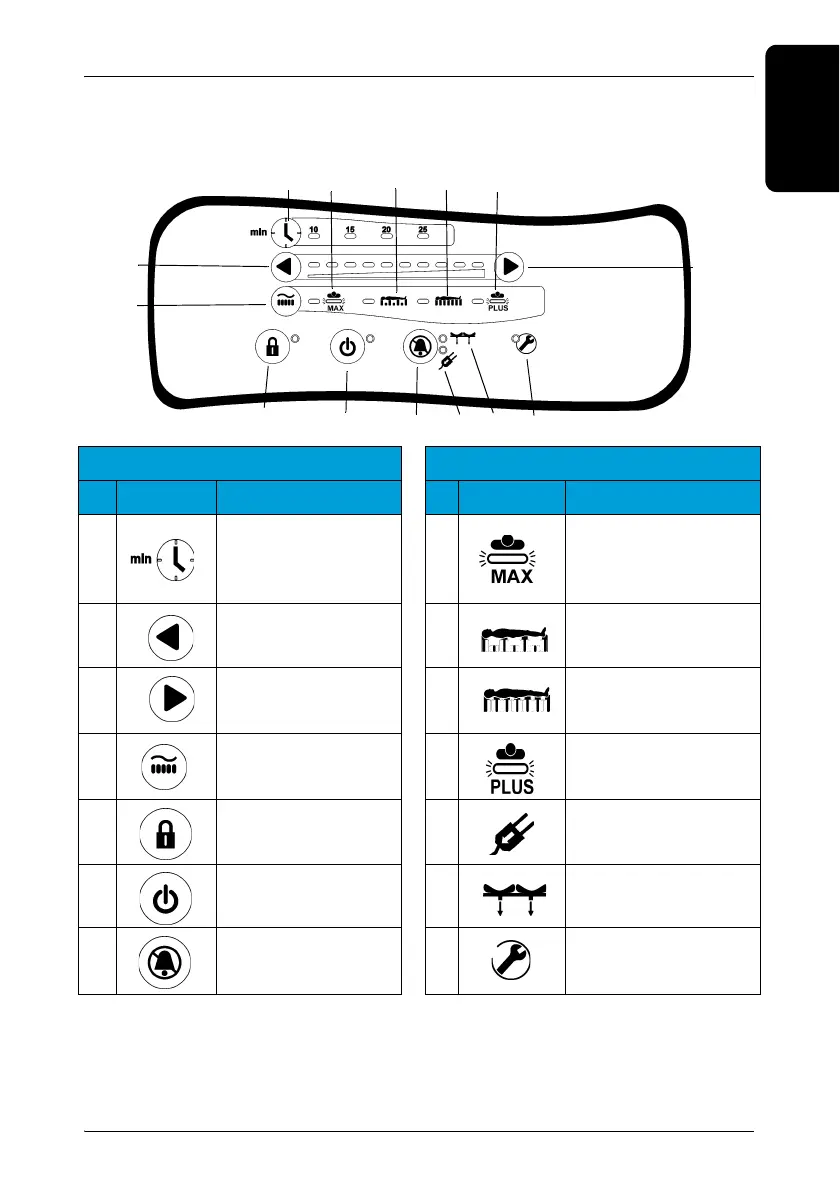

Symbols on the Control Unit
Buttons and Indicator Lights
Buttons Indicator Lights
Symbol Description Symbol Description
A
Alternating Pressure
Cycles (every
5 minutes)
1
Maximum Inflation
(P-max)
B
Comfort Setting:
Reduce the Pressure
2
Alternating
Low Pressure Mode
C
Comfort Setting:
Increase
the Pressure
3
Continuous
Low Pressure Mode
D
Selection
of the Operating
Mode
4 Over-Inflation
E Security Lock 5
Mains Power Fault
Indicator
FOn/Off 6
Low Pressure
Indicator
G
Audible Indicator
Silence
7 Malfunction Indicator
A
B
D
E
F
C
G
1
2
3
4
5 6
7
