Electrical safety
▶ Before beginning work, check the working area for concealed electric cables, gas pipes and water
pipes. External metal parts of the power tool can become live, presenting a risk of electric shock, if you
accidentally damage an electric cable.
Power tool use and care
▶ Immediately switch off the power tool if the accessory tool jams. The power tool might twist off-line.
▶ Wait until the power tool stops completely before you lay it down.
3 Description

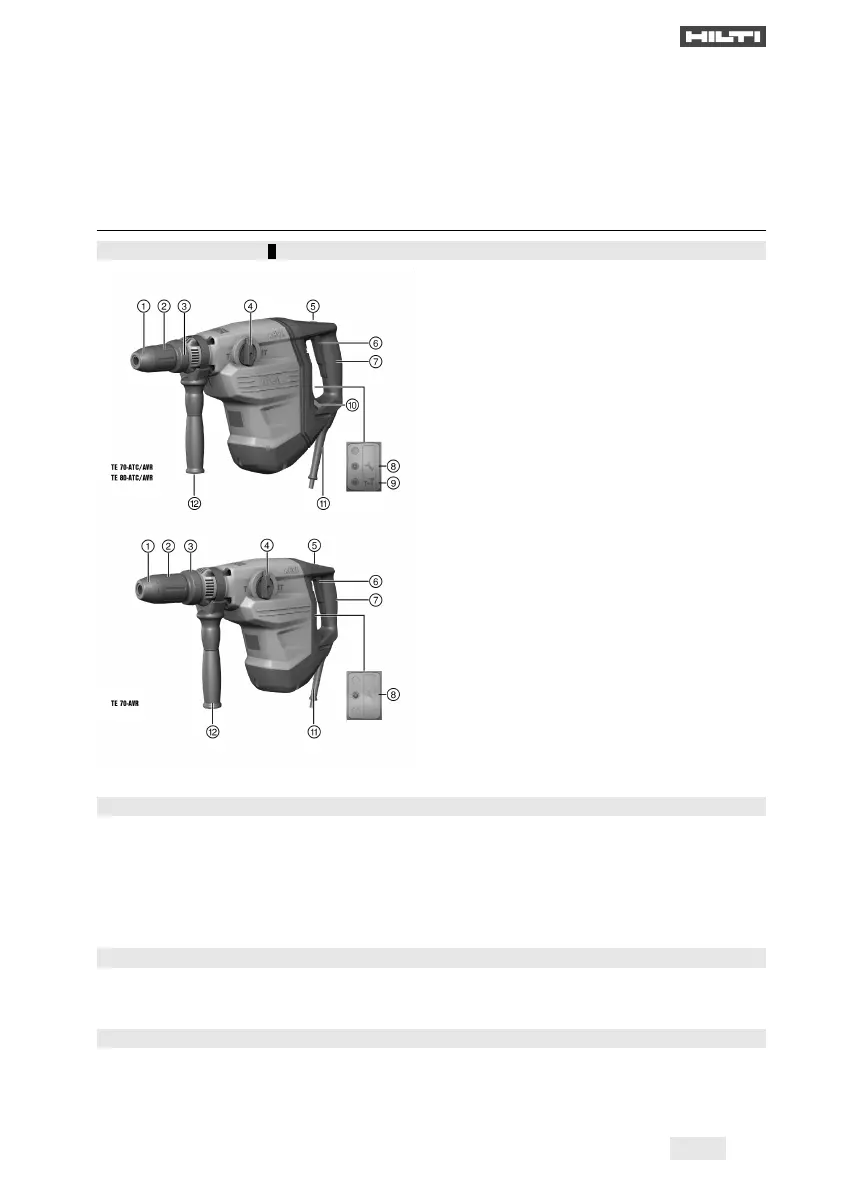

3.1 Product overview 1
@
Dust shield
;
Chuck
=
Accessory tool release
%
Function selector switch
&
Control switch lock
(
Control switch
)
Grip
+
Service indicator
§
Indicator for half power (ATC version only)
/
Button for half power (ATC version only)
:
Supply cord
∙
Side handle
3.2 Intended use
The product described is an electrically powered combihammer with pneumatic hammering mechanism. It
is designed for drilling in concrete, masonry, wood and metal. The product can also be used for light- to
medium-duty chiseling on masonry and surface finishing work on concrete.
Under certain conditions, the product is also suitable for stirring / mixing.
▶ The tool may be operated only when connected to a power source providing a voltage and frequency in
compliance with the information given on the type identification plate.
3.3 AVR option
The product may be optionally equipped with an Active Vibration Reduction (AVR) system, which reduces
vibration noticeably.
3.4 ATC
The power tool is equipped with the ATC (Active Torque Control) quick-acting electronic cut-out.
If the accessory tool sticks or stalls, the power tool will suddenly pivot about its own axis in the opposite
direction. ATC detects thissudden pivoting movementof thepower tooland switchesthe tool off immediately.
