OPTIONS | PAGE 30
9. OPTIONS
New functions can be added to the CEC7 control unit using the CAN bus
connection via expansion modules.
9.1 TELESIGNAL

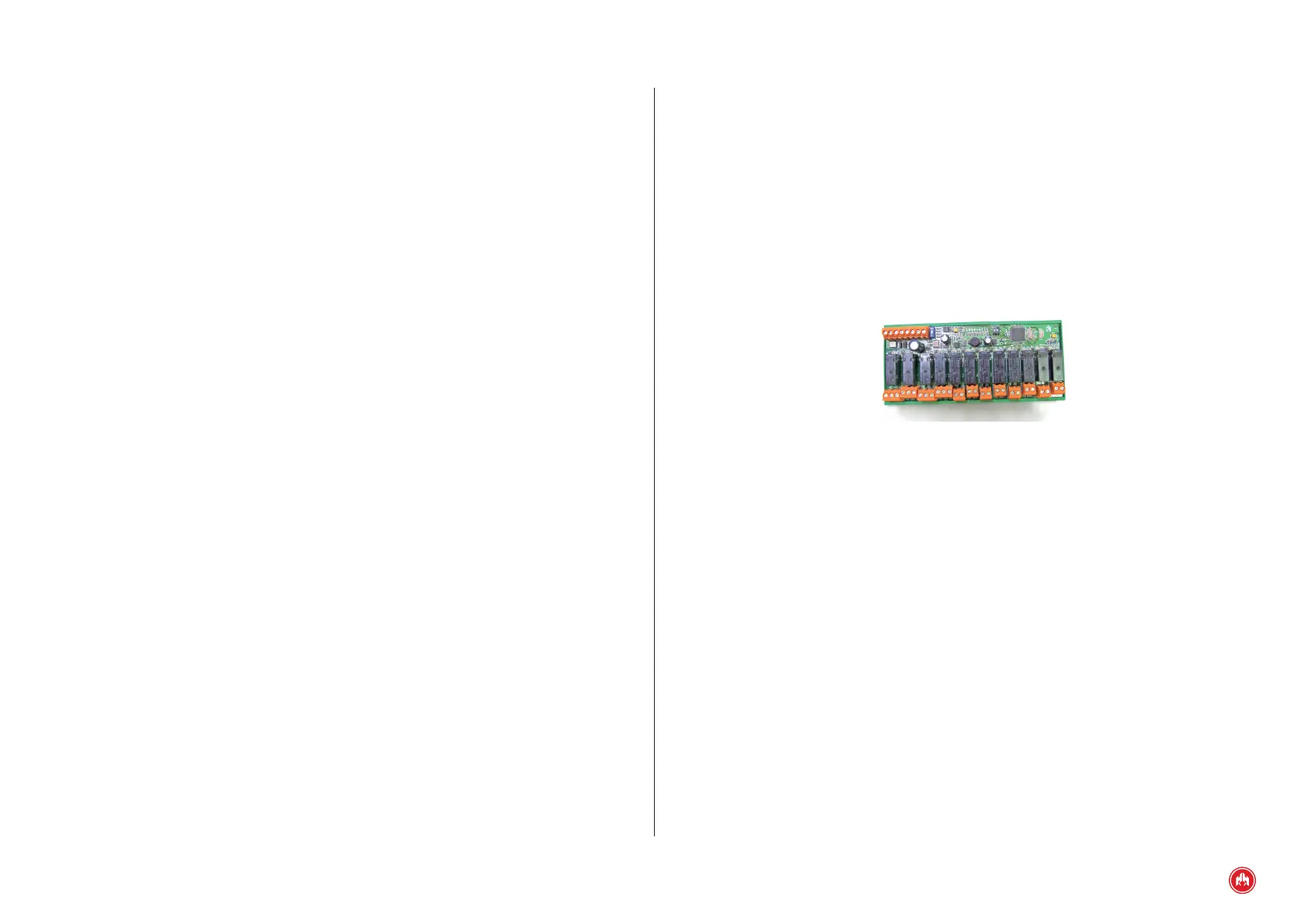

The CEC7 control unit allows connection of a Telesignal device. The Telesignal
device has 12 relay outputs (4 with NO and NC contact, 8 with NO contact).
The outputs of the Telesignal device can be programmed to be activated
depending on:
• Any active alarm or pending noti cation from the control unit.
• Any active input of the control unit.
• Any active output of the control unit.
• Control unit mode (Automatic or manual).
Each output of the Telesignal device is activated when at least one of the
activation conditions have been programmed.
