(APPENDIX IV) DIMENSIONS, WIRING AND MECHANICAL PARTS | PAGE 58
INSTALLATION AND WIRING
To power the CEC7 device and make the other connections you should use a ca-
ble with a section of 1 mm
2
.
The CEC7 device is mounted on the front of an electrical panel. There are no
special ventilation requirements due to the low power consumed by the device.
The CEC7 device has a CAN terminator activation switch of 120 Ω active in ON
position.

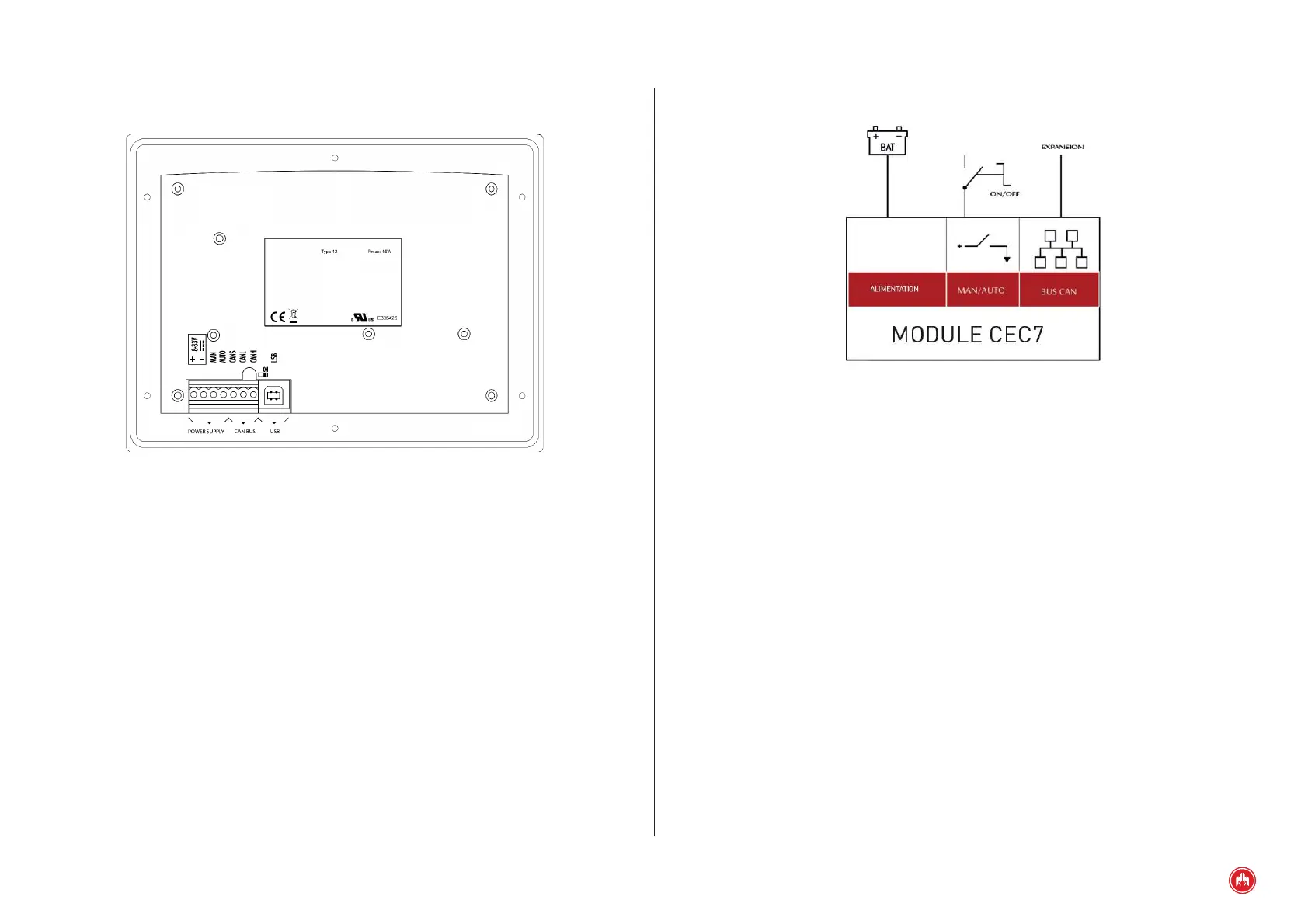

13.2 CEC7 MODULE
Fig.2
CEC7 module
