Hioki 3283 - Leak Current Measurement ∼A

8
Chapter 2 Measurement Procedure
NOTE

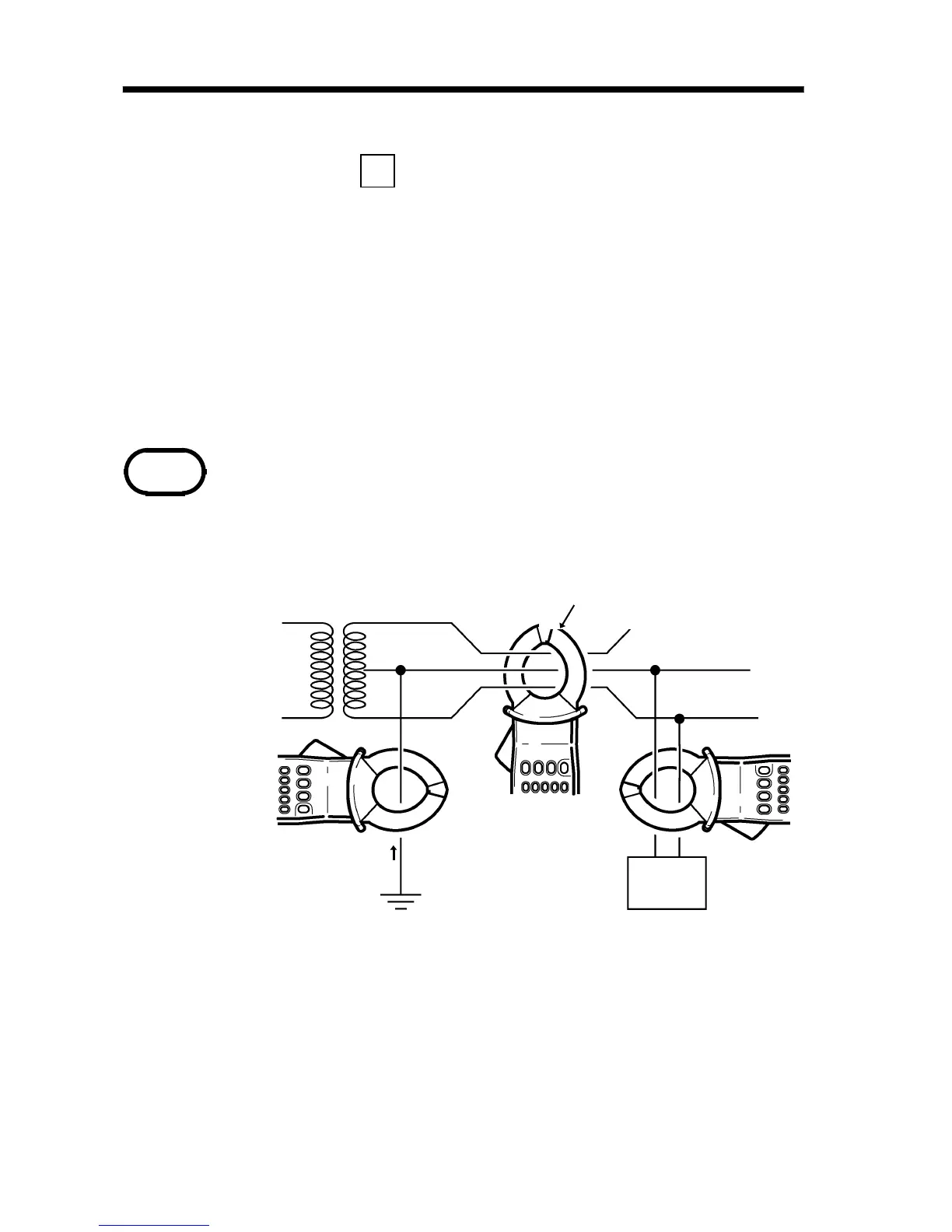

single-phase 3-lead circuits
Transformer
b
clamp all three leads
of the circuit
b
a
Ig: leak Current
E
2
Class 2 grounding line
Load
device
Ig
2.2 Leak Current Measurement A
～
～～
～
1. Press the
A
〜
〜〜
〜
key.
2. Clamp the tester on the conductor, so that
the conductor passes through the center of
the clamp core. For measurement of grounded
leads, clamp the tester on one lead only (see
a). For overall measurements, clamp the
tester on the entire circuit path (see B).
･ When the current to be measured is
unknown, begin measurement with the 200 A
range selected (filter off).
