Chapter 2 Measurement Procedure
rms value
→
elapsed time
→
elapsed time
→
current range
(instantaneous value)(hours)(minutes)
【Bar graph indication BAR GRAPH】
The bar graph display can be changed. It is
also possible to display the current range,
effective (rms) value of the measured current,
and the elapsed time (hours and minutes).
1. Press the
BAR GRAPH
key.
2. The current range display switches to bar
graph indication.
Each push of the
BAR GRAPH
key cycles
through the following modes:
When the elapsed time display is activated,
the bar graph segments flash and the elapsed
time from the point when the
MAX/MIN
key
was pressed is displayed.
When "hour" is selected, one segment
corresponds to one hour, and the maximum
length of time that can be displayed is 59
hours. When "min" is selected, one segment
corresponds to one minute, and the maximum
length of time that can be displayed is 59
minutes.

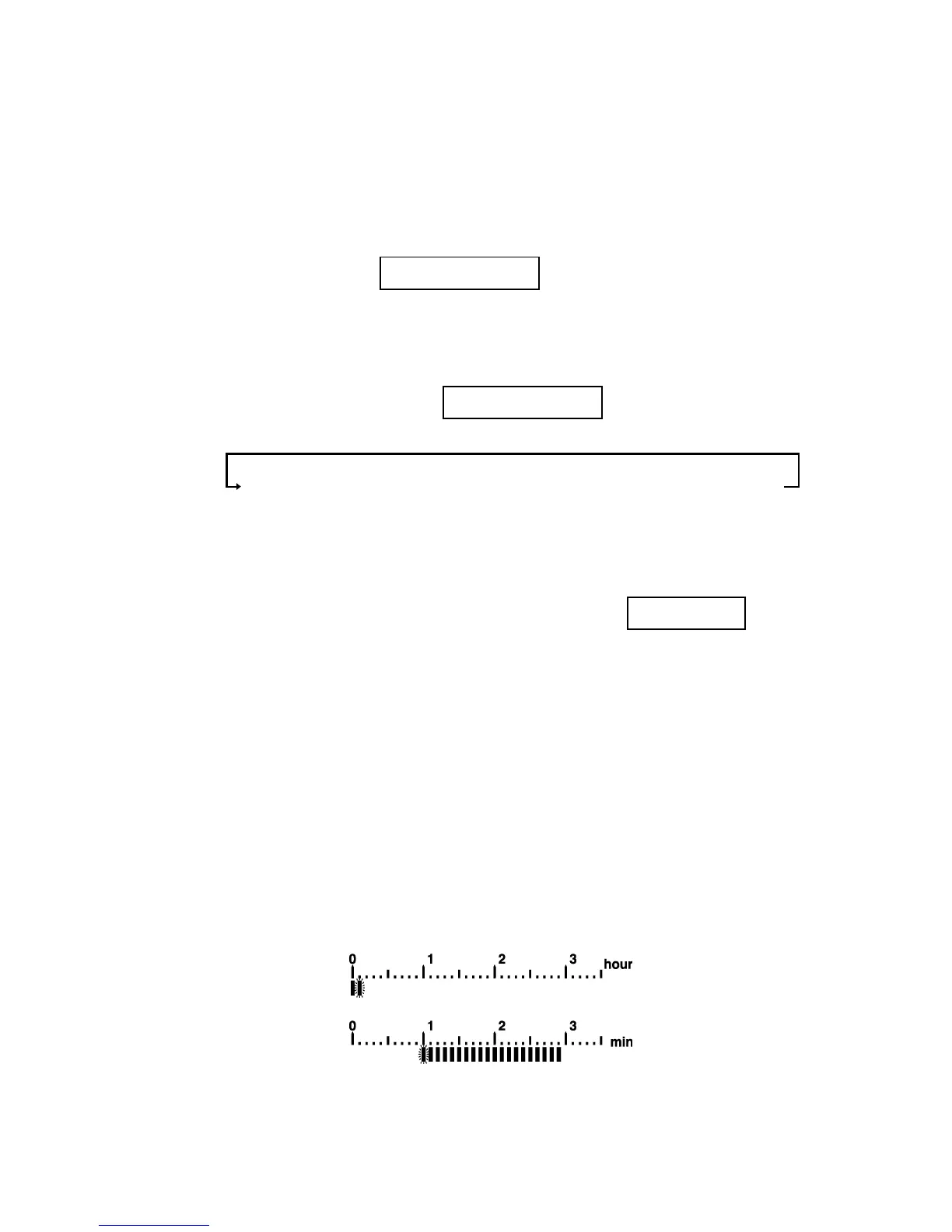

The illustration below shows indication when
1 hour 40 minutes have elapsed.
