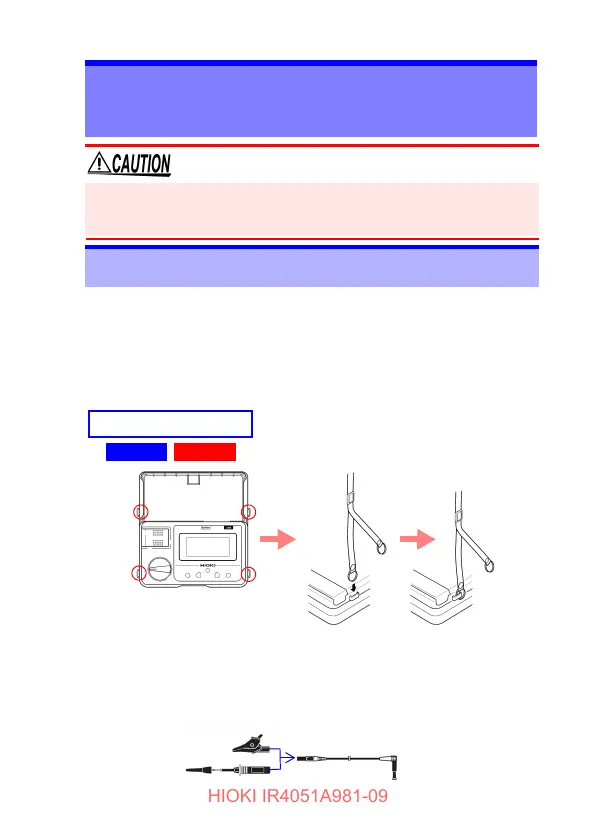

2.1 Measurement Preparations
Measurement
Procedures Chapter 2
Attach the strap securely to the four fittings on the instrument. If
insecurely attached, the instrument may fall and be damaged
when carrying.
2.1 Measurement Preparations
1.
Attach the strap.
2.
Insert the batteries. (p.68)
3.
Connect the test lead (connect the black test lead to the
EARTH terminal, and the red test lead to the LINE terminal)
Pass the ring on both ends of the supplied strap through
each of the four holes in the instrument.
Attaching the strap
IR4051 IR4053
Slightly extend each of the four dou-
ble-loop split rings and pass the ring
through a lug-hole on the instrument.
4.
Attach each test pin or alligator clip to a lead.
or
Fully insert the test lead to the test pin
or alligator clip.
