Installing the Z3210 Wireless Adapter (IR4057-50 only)
Procedure
You will need:
• Phillips-head screwdriver (No. 2)
• Flat-head screwdriver
• Z3210 Wireless Adapter (option)
Rear
2
,
5
2
5
3
4
1

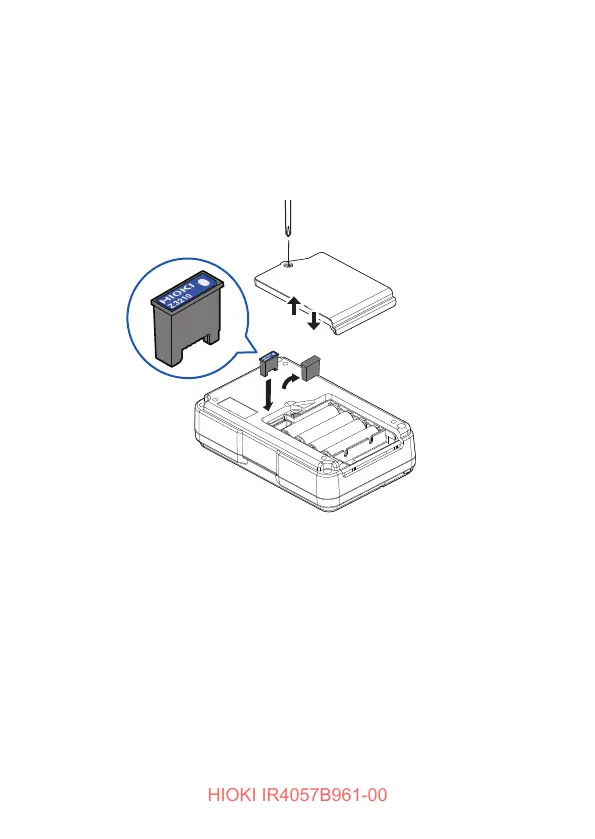

Turn off the rotary switch and remove the test leads.
2
Unscrew the screws and remove the battery cover.
3
Remove the protective cap with a at-head screwdriver.
4
Exercising care to orient the Z3210 correctly, install the
Z3210 as far as it will go.
5
Reattach the battery cover and tighten the screws.
