19

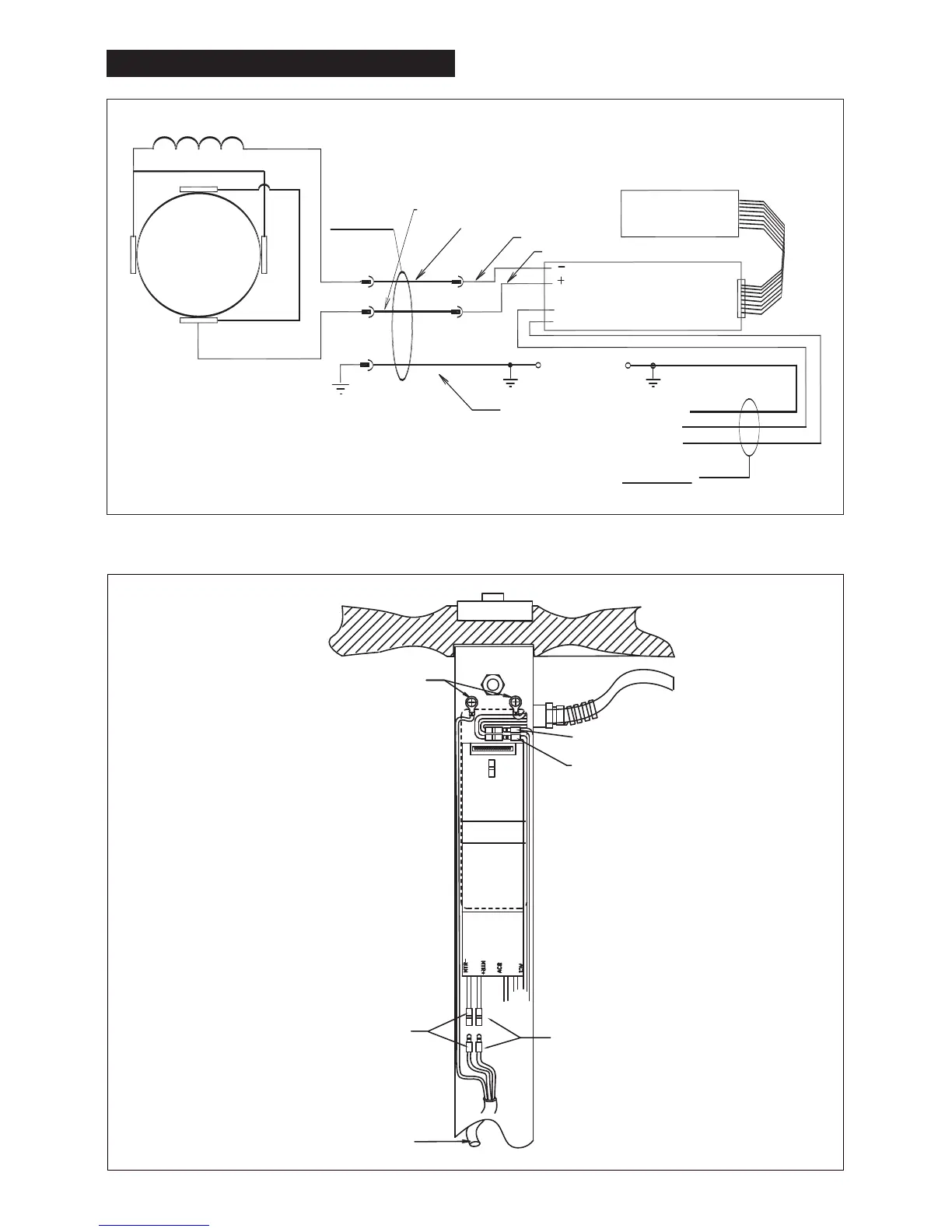

HT CIRCUIT DIAGRAM8
MULTI SPEED CONTROLLER CABLE ROUTING AND LAYOUT-
FIELD
CABLE REF.20
BROWN WHITE AMERICA( - N. )
GREEN YELLWO GREEN AMERICA/ ( - N. )
BLUE BLACK AMERICA( - N. )
BROWN WHITE AMERICA( - N. )
CABLE REF.39
BLUE BLACK AMERICA( - N. )
BLACK OR GREY
RED
MULTI SPEED CONTROL UNIT-
(024525=230V, 024530=115V)
MULTI SPEED SWITCH-
(024520)
MOTOR SUPPLY
AC POWER IN
ARMATURE
NO VOLTAGE AND OVERLOAD PROTECTION
EARTH GROUND TERMINALS CONNECT GREEN YELLOW CONDUCTORS() /
()GREEN FOR NORTH AMERICA
CONNECT BLUE CONDUCTOR BLACK FOR NORTH AMERICA()
CONNECT BROWN CONDUCTOR WHITE FOR NORTH AMERICA()
MAINS LEAD
CONNECT BLACK OR GREY MOTOR LEAD TO BLUE CONDUCTOR
()BLACK FOR NORTH AMERICA
CONNECT RED MOTOR LEAD TO BROWN CONDUCTOR
()WHITE FOR NORTH AMERICA
MOTOR LEAD
