Hirschmann MACH 100 Programming Manual

Link Aggregation
16
2.1 Example of link aggregation
Redundanz L2P
Release 5.0 04/09

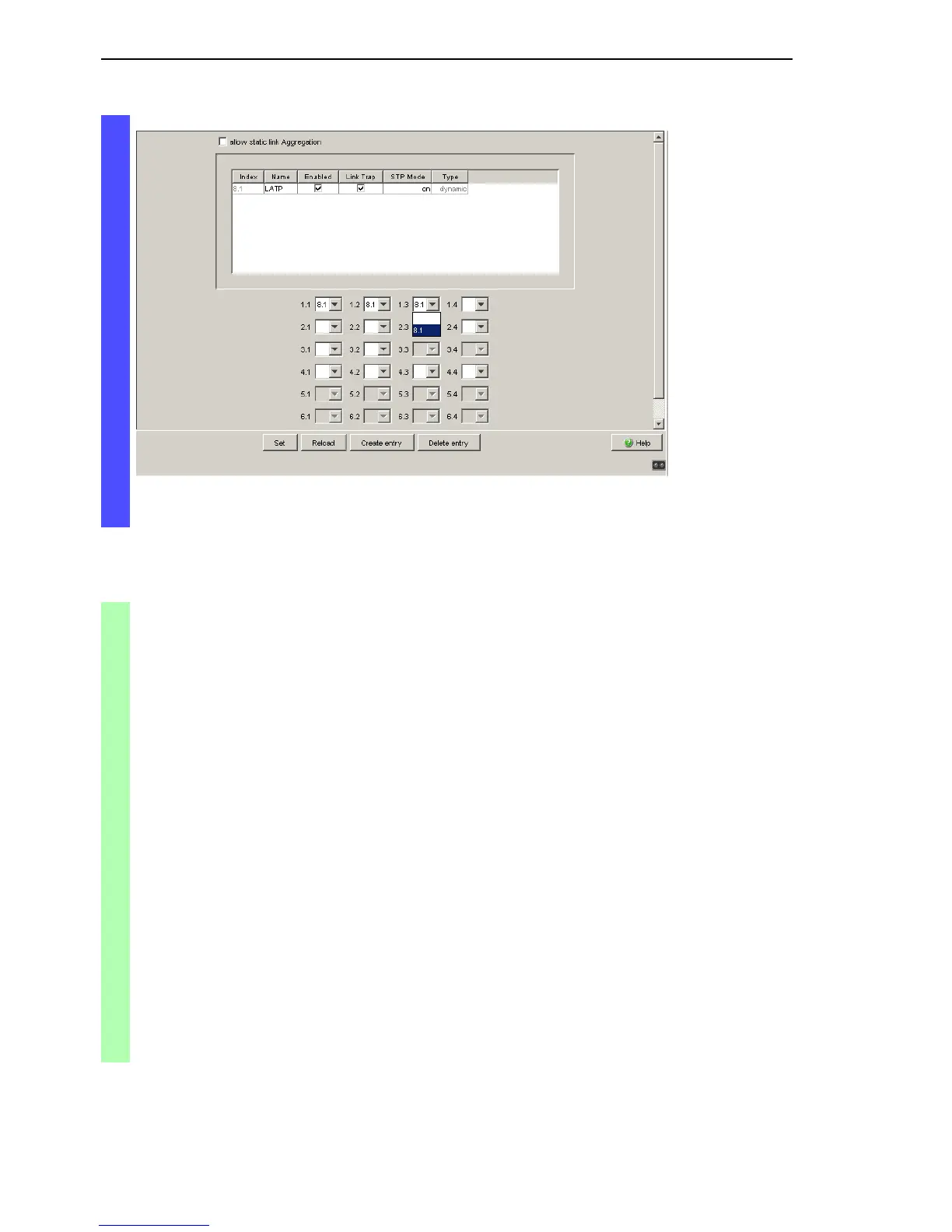

Figure 5: Assigning ports to link aggregation
enable Switch to the Privileged EXEC mode.
configure Switch to the Configuration mode.
link-aggregation LATP Create a new link aggregation with the name
LATP.
New link aggregation created. Slot/port is 8.1.
Interface 1/1 Configuration for port 1.1
addport 8/1 Assign port 1.1 to link aggregation 8.1.
Interface 1/2 Configuration for port 1.2
addport 8/1 Assign port 1.2 to link aggregation 8.1.
Interface 1/3 Configuration for port 1.3
addport 8/1 Assign port 1.3 to link aggregation 8.1.
exit Switch to the privileged EXEC mode.
show link-aggregation brief Show the parameters of all the link aggregations
created on the device.
Max. num. of LAGs: 7
Slot no. for LAGs: 8
Static Capability: Disabled
Logical Link-Aggr.
Interface Name Link State Mbr Ports Active Ports
---------- ---------- ------------ --------- -------------------
8/1 LATP Down 1/1,1/2, 1/3
