Autopolarity
In addition, the MSM22 media module allows you to use Power over
Ethernet (PoE) according to IEEE 802.3af and Power over Ethernet
Plus (PoE+) according to IEEE 802.3at.
The PoE power is supplied via the wire pairs transmitting the signal
(phantom voltage).
Delivery state: Autonegotiation activated
1/2.5 Gbit/s F/O port
This port is an SFP slot.
The port allows you to connect network components according to the
IEEE 802.3 1000BASE-SX/1000BASE-LX standard.
The port allows you to connect network components according to
IEEE P802.3bz 2.5 Gbit/s.
This port supports:
Full duplex mode
Delivery state:
1/2.5 Gbit/s full duplex when using a Gigabit Ethernet SFP transceiver
100/1000 Mbit/s F/O port
This port is an SFP slot.
The 100/1000 Mbit/s F/O port allows you to connect network components
according to the IEEE 802.3 100BASE-FX/1000BASE-SX/1000BASE-LX
standard.
100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
1000 Mbit/s full duplex
State on delivery:
100 Mbit/s full duplex when using a Fast Ethernet SFP transceiver
1000 Mbit/s full duplex when using a Gigabit Ethernet SFP transceiver
100 Mbit/s F/O port
This port is a DSC socket or a DST socket.
The 100 Mbit/s F/O port allows you to connect network components
according to the IEEE 802.3 100BASE-FX standard.
100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
State on delivery:
100 Mbit/s, full duplex
Figure Pin MSM20 MSM22
Function PoE (PSE)
1 TD+ Transmission path +
2 RD+ Receive path −
3TD− Transmission path +
4RD− Receive path −
Housing: shield

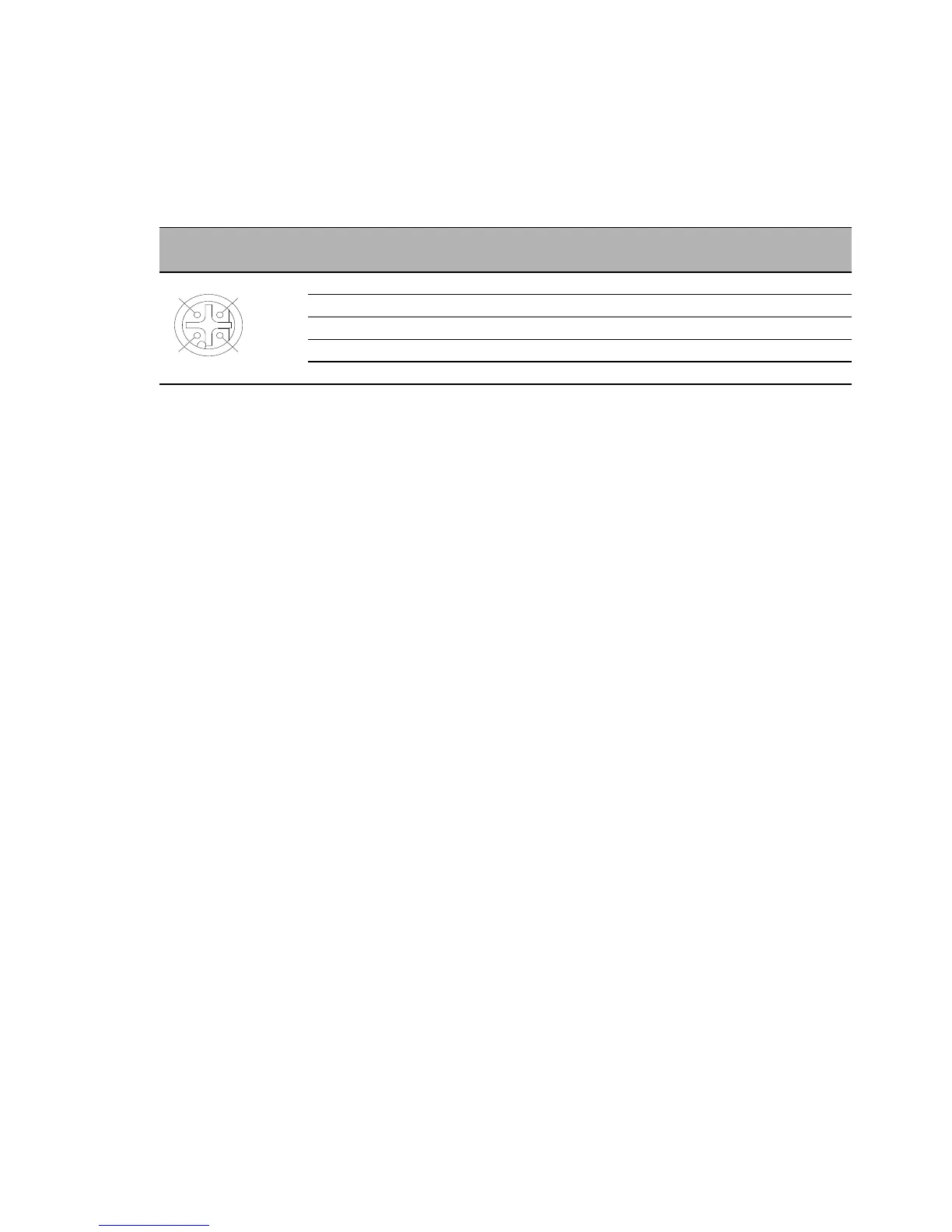

Table 29: Pin assignment of 10/100 Mbit/s twisted pair port, M12 socket
1
23
4
