68
Installation MSP30/32/40/42 and MSM20/22/24/40/42/46/50
Release
12
06/2018
7 Disassembly
7.1 Removing an SFP transceiver (optional)

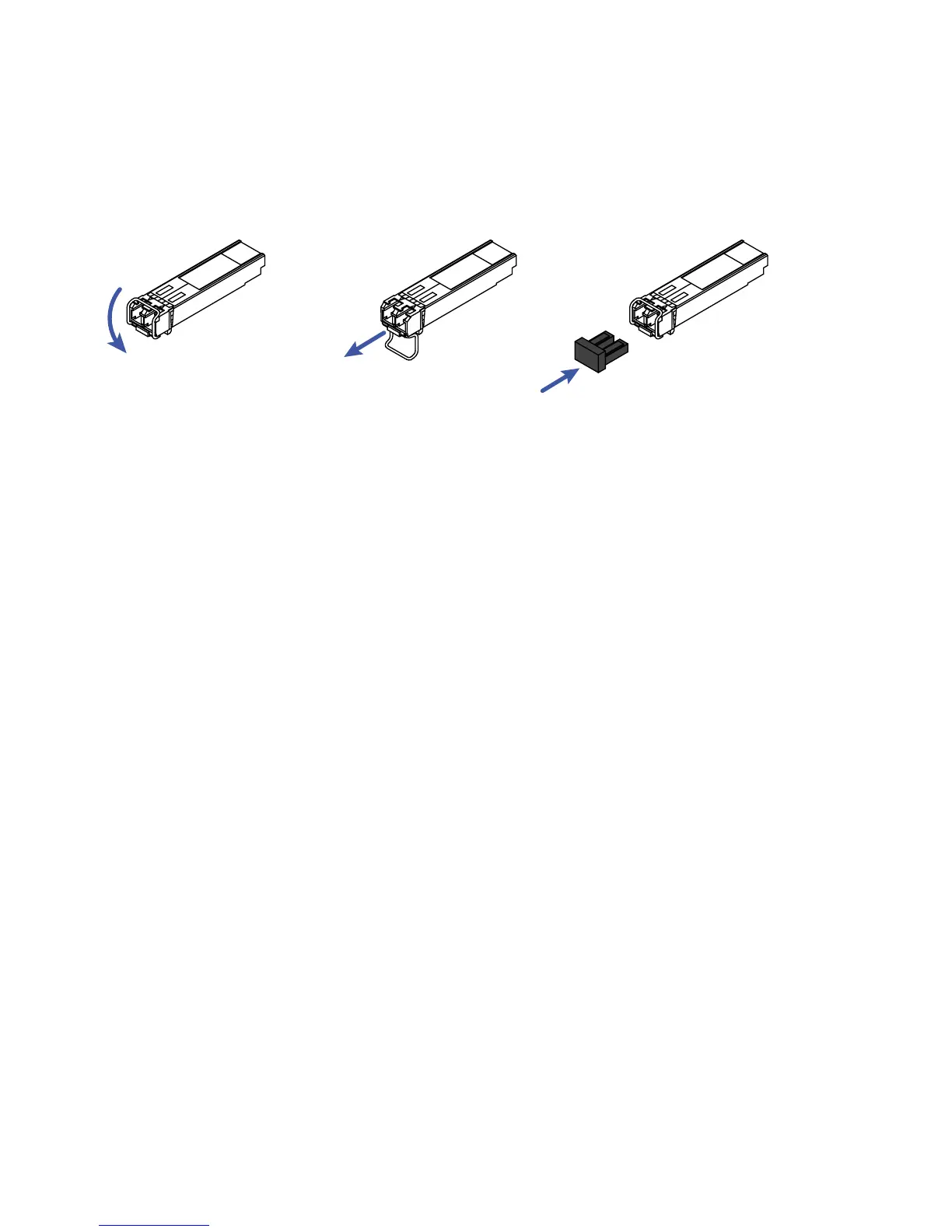

Figure 7: Removing an SFP transceiver: Removal sequence
Proceed as follows:
Open the locking mechanism of the SFP transceiver (1).
Pull the SFP transceiver out of the slot via the open locking
mechanism (2).
Close the SFP transceiver with the protection cap (3).
7.2 Removing a media module
You have the option to remove the media modules while the device is
operating.
