Hirschmann PowerMICE MM3-4FXM2

PowerMICE
Release 01 04/2014
17

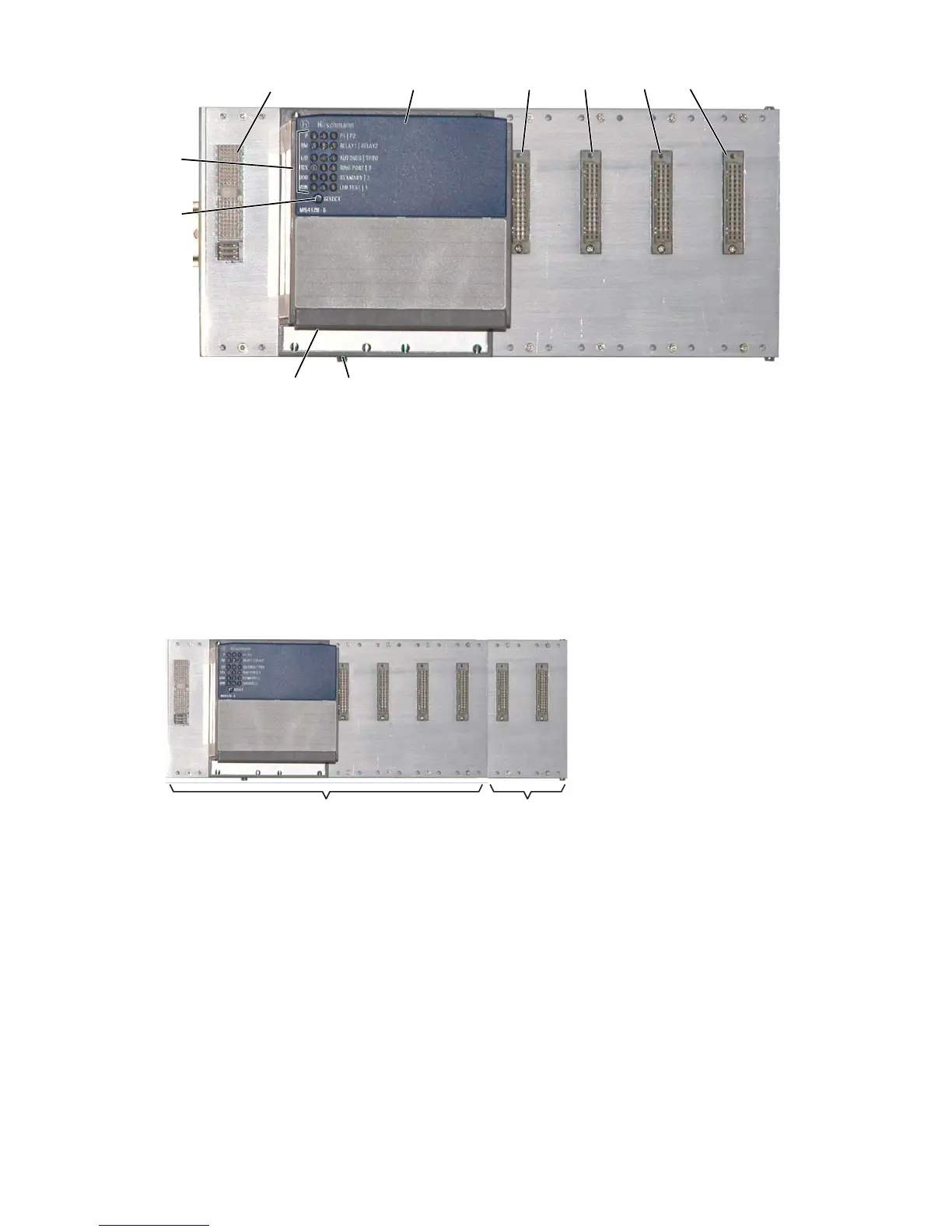

Figure 2: Front of the basic module
1 – Slot for SFP module MM4...
2 – Basic module
3 – Slot for media modules MM2… or MM3… with 2 to 4 ports each
4 – Ground screw
5 – Connections on the bottom of the basic module
6 – Button for setting the display status
7 – LEDs for device status and display status
Figure 3: Basic module with expansion module
1 – Expansion module MB-2T
2 – Basic module
1
2
4
6
7
5
33 33
21
