Hirschmann PowerMICE MM3-4FXM2

PowerMICE
Release 01 04/2014
43

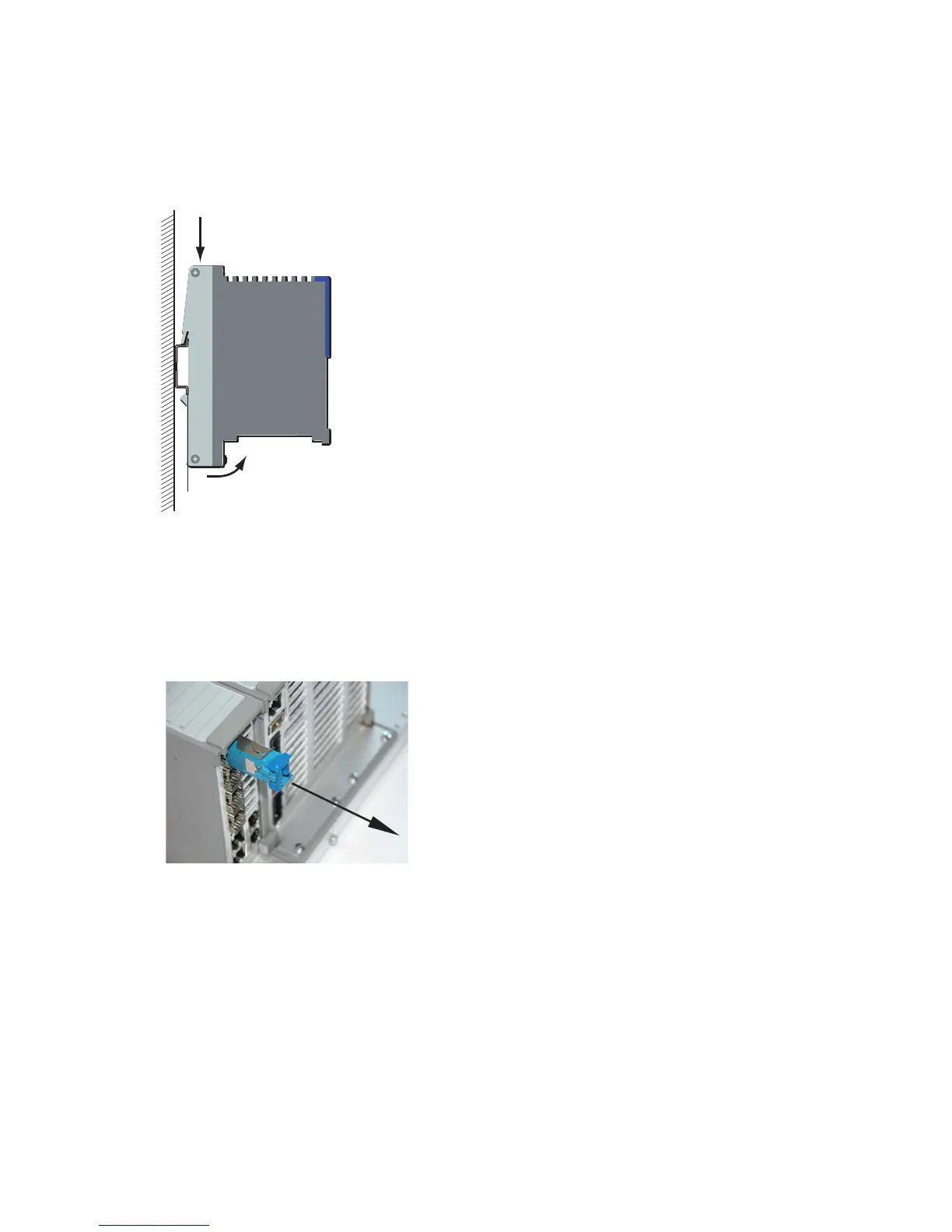

2.6 Disassembly
 Disassembling the device
 To remove the device from the hat rail, press the device downwards
and pull it out from under the hat rail.
Figure 18: Disassembly
 Disassembling the SFP modules
 Pull the module out of the socket by means of the opened lock.
 Close the socket with the protective cap.
Figure 19: Deinstalling an SFP module
