Rapid Spanning Tree

Redundanz L2P

Release

5.0

04/09

6.7

Combination of RSTP and MRP

107

6.7 Combination of RSTP

and MRP

In the MRP compatibility mode, the device allows you to combine RSTP with

MRP.

With the combination of RSTP and MRP, the fast switching times of MRP are

maintained.

The RSTP diameter (see fig. 53) depends on the “Max Age”. It applies to the

devices outside the MRP-Ring.

Note: The combination of RSTP and MRP requires the root bridge and the

backup root bridge to be within the MRP-Ring.

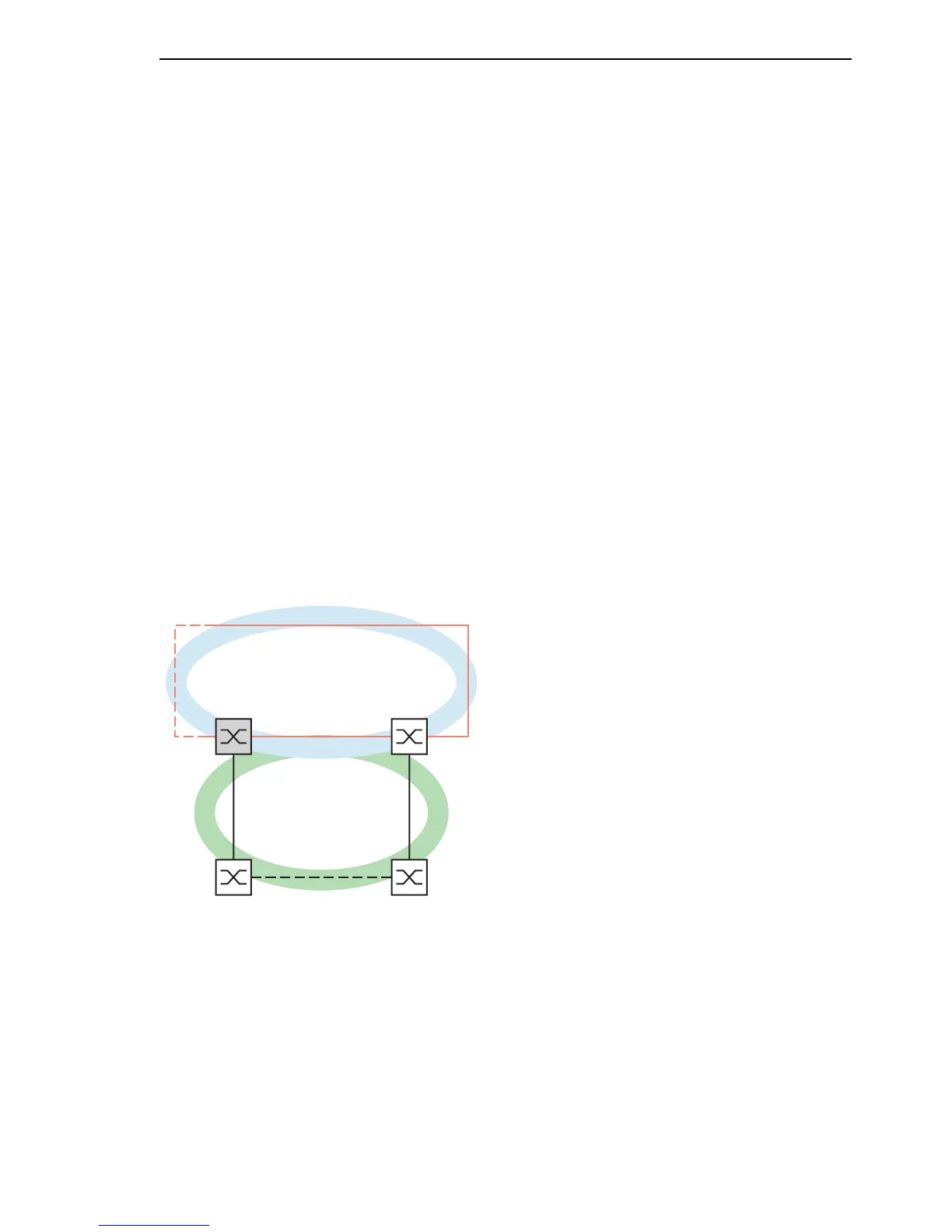

Figure 55: Combination of RSTP and MRP

1: MRP-Ring

2: RSTP-Ring

RM: Ring Manager
