Sub-Ring (RSR20, RSR30, MACH1000)

Redundanz L2P

Release

5.0

04/09

4 Sub-Ring

(RSR20, RSR30, MACH1000)

The Sub-Ring concept enables you to easily couple new network segments

to suitable devices in existing redundancy rings (basis ring). The devices of

the basis ring to which the new Sub-Ring is being coupled are known as Sub-

Ring Managers (SRM).

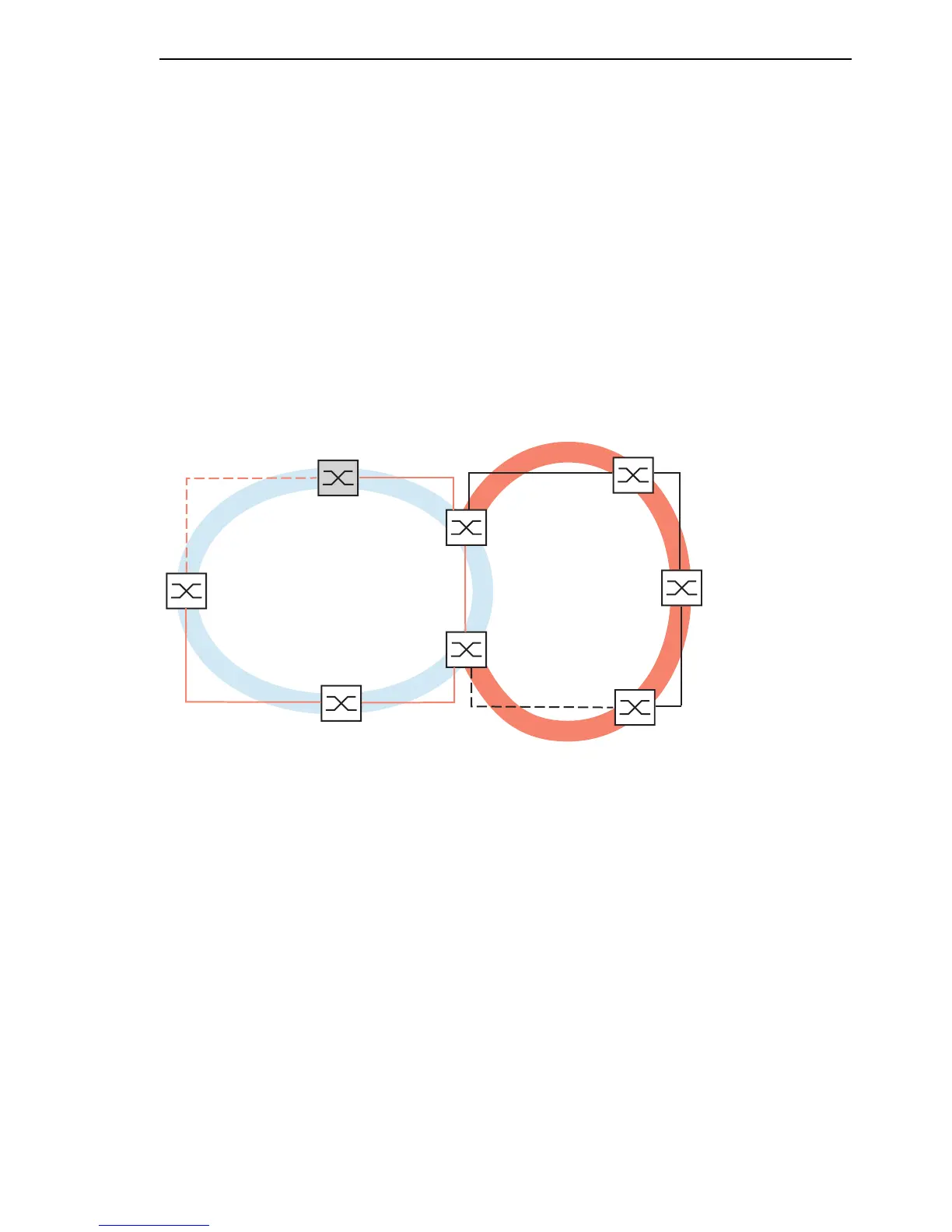

Figure 15: Example of a Sub-Ring structure

1 Blue ring = basis ring

2 Orange ring = Sub-Ring

SRM = Sub-Ring Manager

RM = Ring Manager

Note: The following devices support the Sub-Ring Manager function:

–RSR20/RSR30

– MACH 1000

In a Sub-Ring, you can integrate all devices that support MRP.

1.1

1.2

1.1 1.2

1.1

1.2

1.11.2

1.1 1.2

1.9

SRM 1

SRM 2

1.1

1.2

1.9

1.1

1.2
