Hirschmann RS20 Programming Manual

Sub-Ring (RSR20, RSR30, MACH1000)
42
Redundanz L2P
Release 5.0 04/09
Setting up Sub-Rings has the following advantages:
X Through the coupling process, you include the new network segment in
the redundancy concept.
X You can easily integrate new company areas into existing networks.
X You easily map the organizational structure of a company in the network
topology.
X As an MRP-Ring, the switching times of the Sub-Ring in redundancy cas-
es are typically <100 ms.
The following graphics show examples of possible Sub-Ring topologies:

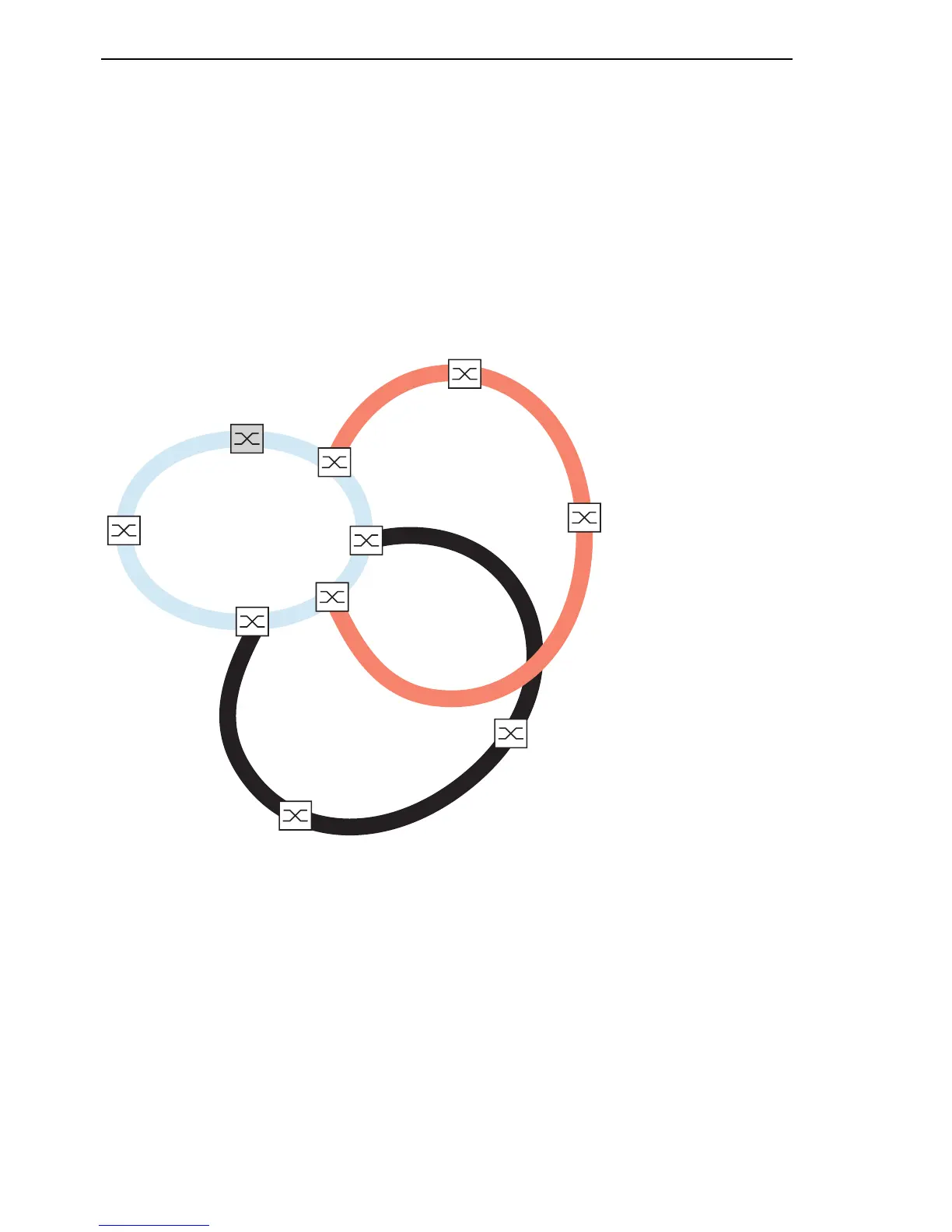

Figure 16: Example of an overlapping Sub-Ring structure
RM
SRM 1
SRM 2
SRM 4
SRM 3

Hirschmann RS20 Specifications

General

Mounting	DIN Rail
Operating Temperature	-40°C to +70°C
Protection Class	IP30
Switching Technology	Store-and-Forward
Product Type	Industrial Ethernet Switch
Port Details	10/100 Mbps Ethernet ports
Switching Capacity	3.2 Gbps
MAC Address Table	8k
Management	Web, SNMP
Redundancy	MRP
Ports	8 or 16
