Link Aggregation
12
2.1
Example of link aggregation
Redundanz L2P
Release
5.0
04/09
2.1 Example of link aggregation
In a network consisting of seven devices in a line topology, there are two
segments with a particularly large amount of data traffic. You therefore
decide to set up link aggregations in these segments. As well as dividing the
load between a number of lines, you also get increased redundancy reliability
in these segments through the redundant lines.
The link aggregation LATP (Link Aggregation Twisted Pair) consists of
3 twisted pair lines, and the link aggregation LAFO (Link Aggregation Fiber
Optic) consists of 2 glass fiber lines.

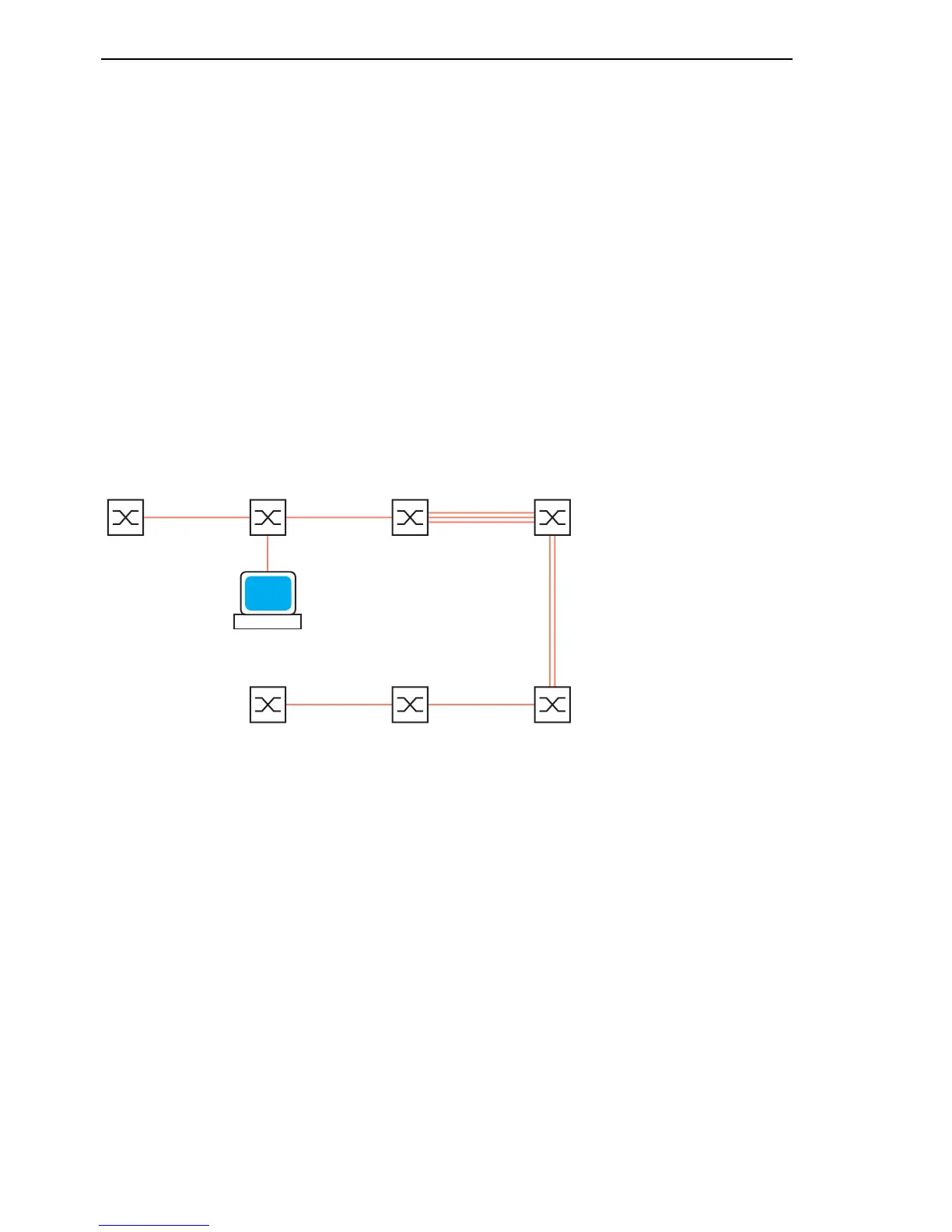

Figure 1: Example of link aggregation
NMS = Network Management Station
LATP = Link Aggregation Twisted Pair
LAFO = Link Aggregation Fiber Optic
The following example describes the configuration of the LATP link aggrega-
tion. For this link aggregation, you provide three free twisted pair ports at
each of the two participating devices. (Connection: Module1 Port1 to Port3).
3 x TP FDX
300 Mbit/s
2 x FO FDX
2 Gbit/s
10 km singlemode
NMS
LATP
LAFO
