Hirschmann RS20 Programming Manual

Ring/Network coupling
60
5.2 Preparing a Ring/Network coupling
Redundanz L2P
Release 5.0 04/09

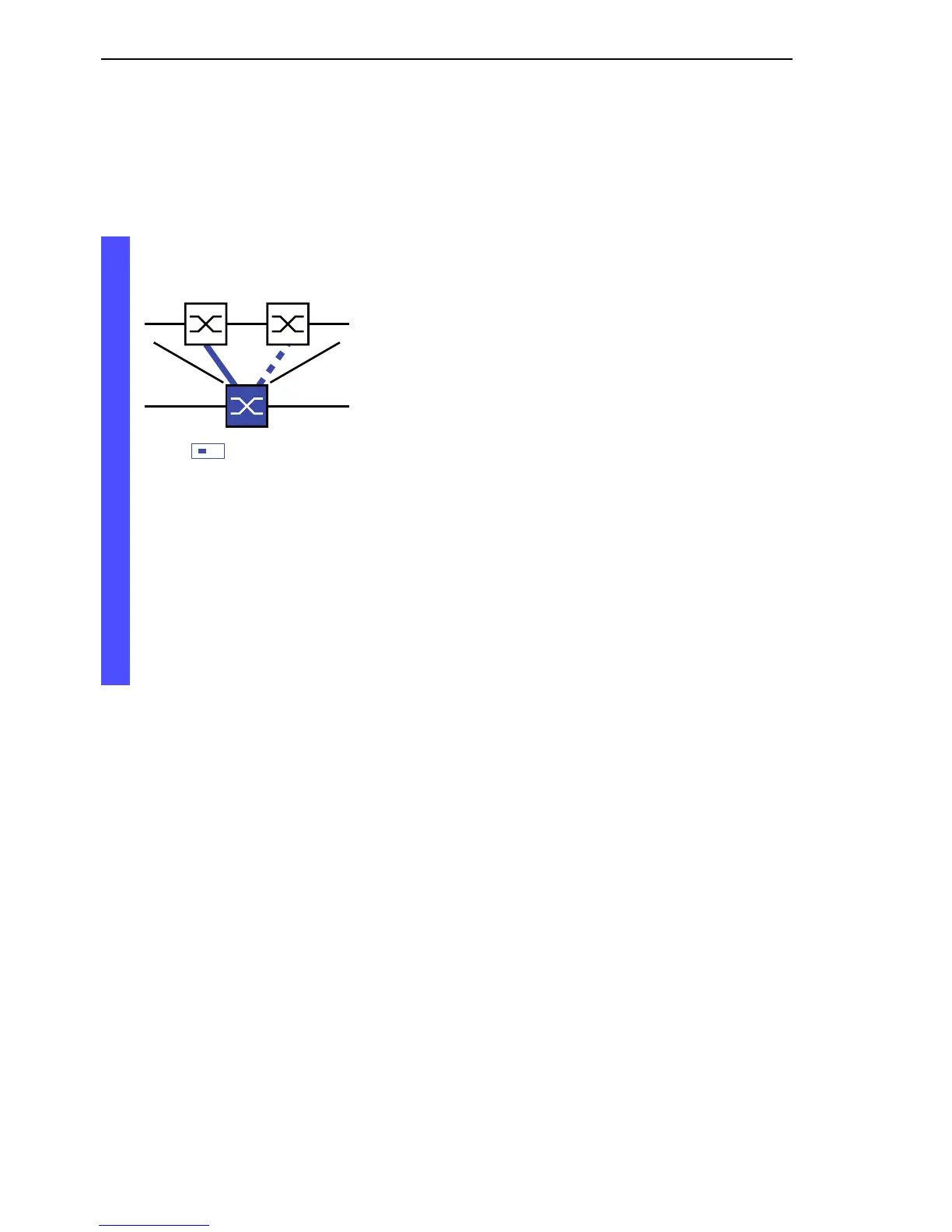

The coupling between two networks is effected by the main line (thick blue
line), which is connected to the partner coupling port. If the main line fails, the
redundant line (thick blue dotted line), which is connected to the coupling
port, takes over coupling the two networks. The coupling is effected by one
Switch.
The following tables show the selection options and default settings for the
ports used in the Ring/Network coupling.
 Select the Redundancy:Ring/Network Coupling dialog.
 Select one-Switch coupling (see fig. 24).
Figure 24: One-Switch-coupling
1: Coupling port
2: Partner coupling port
The following settings apply to the Switch displayed in blue in the
selected graphic.
 Select the partner coupling port (see fig. 25), (see table 9).
With “Partner coupling port” you specify at which port you are
connecting the control line.
IO
STAND-BY
2 1

Hirschmann RS20 Specifications

General

Mounting	DIN Rail
Operating Temperature	-40°C to +70°C
Protection Class	IP30
Switching Technology	Store-and-Forward
Product Type	Industrial Ethernet Switch
Port Details	10/100 Mbps Ethernet ports
Switching Capacity	3.2 Gbps
MAC Address Table	8k
Management	Web, SNMP
Redundancy	MRP
Ports	8 or 16
