Ring/Network coupling

5.2

Preparing a Ring/Network coupling

Redundanz L2P

Release

5.0

04/09

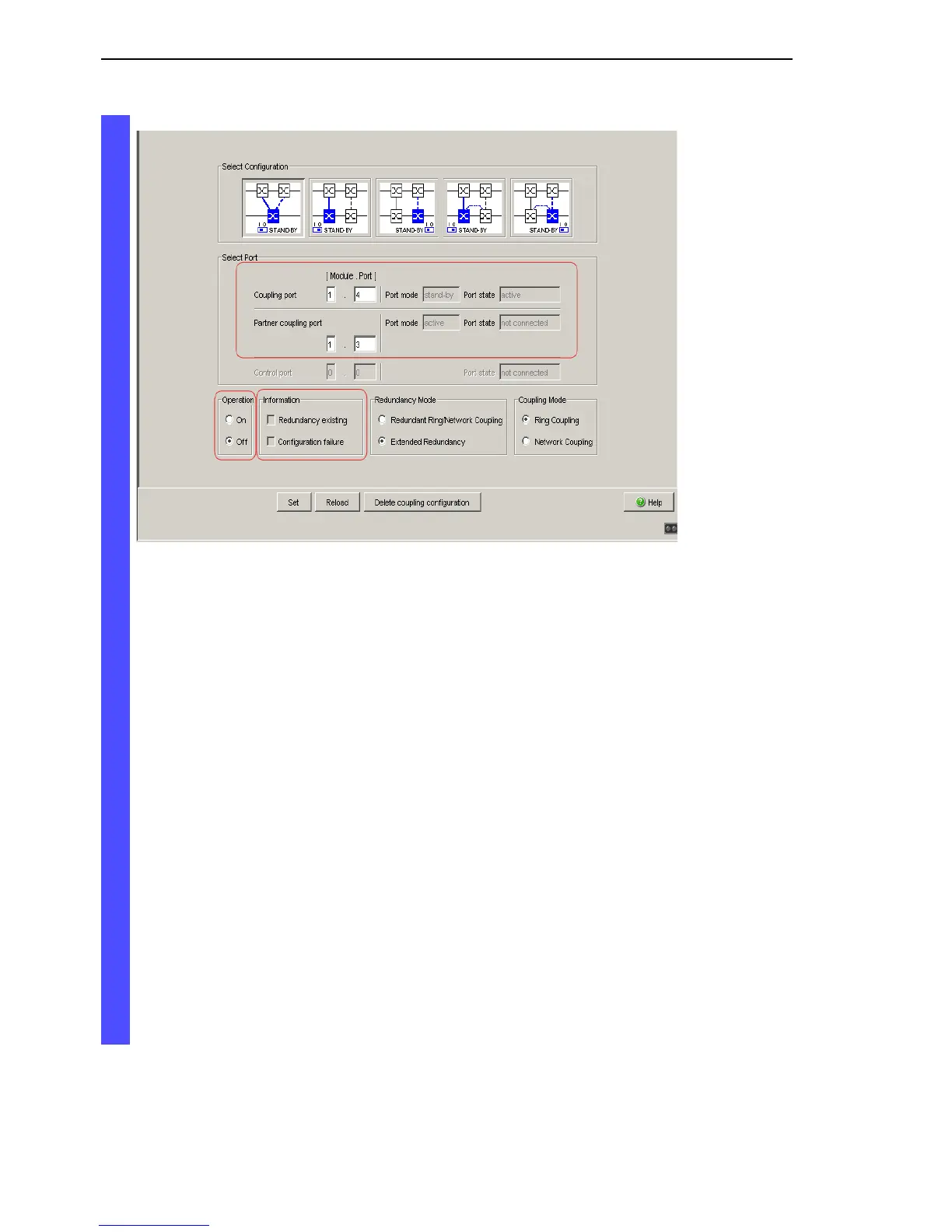

Figure 25: Selecting the port and enabling/disabling operation

Note: The following settings are required for the coupling ports (you

select the Basic Settings:Port Configuration dialog):

– Port: on

– Automatic configuration (autonegotiation):

on for twisted-pair connections

– Manual configuration: 100 Mbit/s FDX

for glass fiber connections

Note: If VLANS are configured, note the VLAN configuration of the

coupling and partner coupling ports.

In the Network/Ring Coupling configuration, select for the coupling and

partner coupling ports

– VLAN ID 1 and “Ingress Filtering” disabled in the port table and

– VLAN membership U in the static VLAN table.

Redundancy mode

 In the “Redundancy Mode” frame, select (see fig. 26)

– “Redundant Ring/Network Coupling” or

– “Extended Redundancy”.
