Ring/Network coupling
80
5.2
Preparing a Ring/Network coupling
Redundanz L2P
Release
5.0
04/09

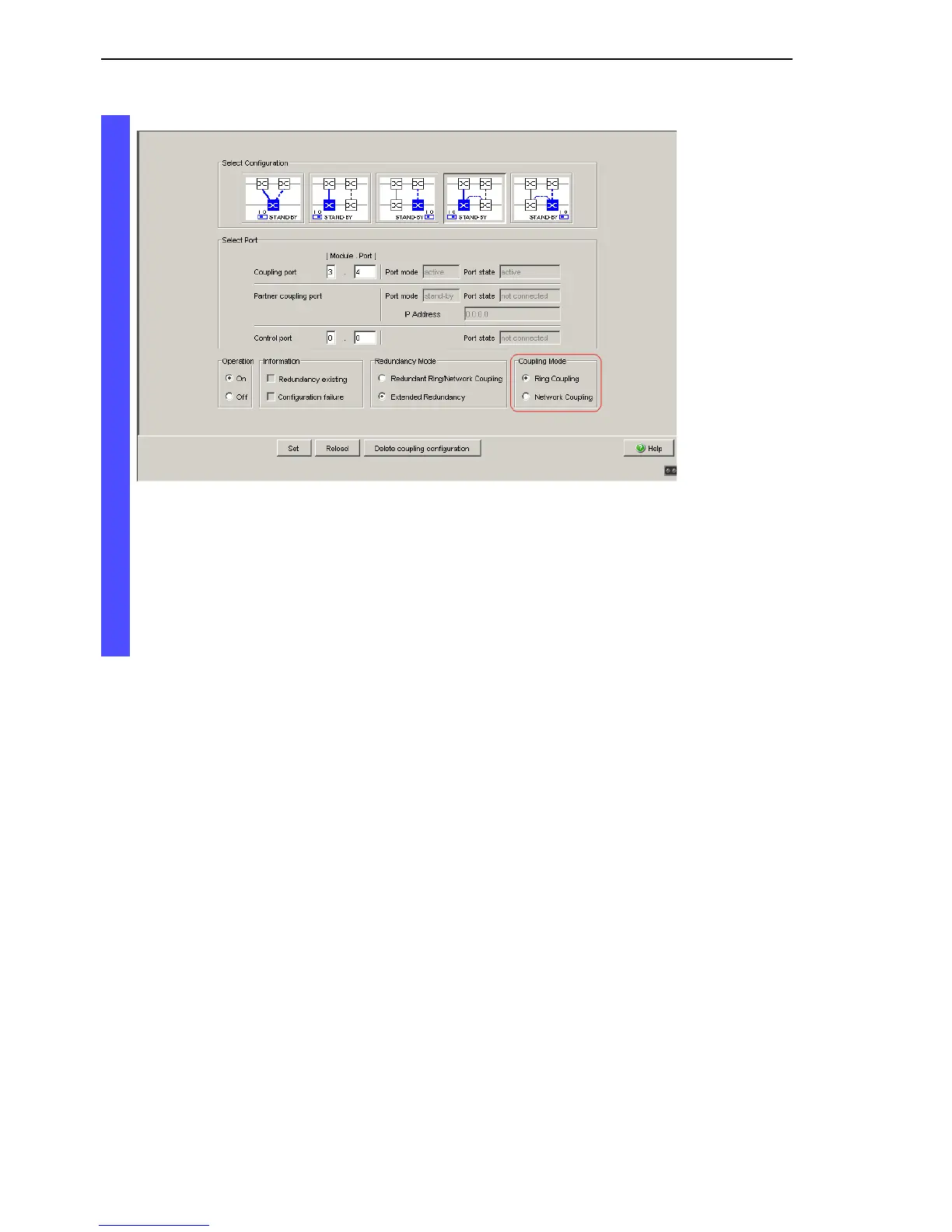

Figure 42: Selecting the coupling mode
Select “Ring coupling” if you are connecting a redundancy ring.
Select “Network Coupling” if you are connecting a line structure.
Delete coupling configuration
The “Delete coupling configuration” button in the dialog allows you
to reset all the coupling settings of the device to the state on delivery.
