RS20/RS30...U
Release
01
06/2012

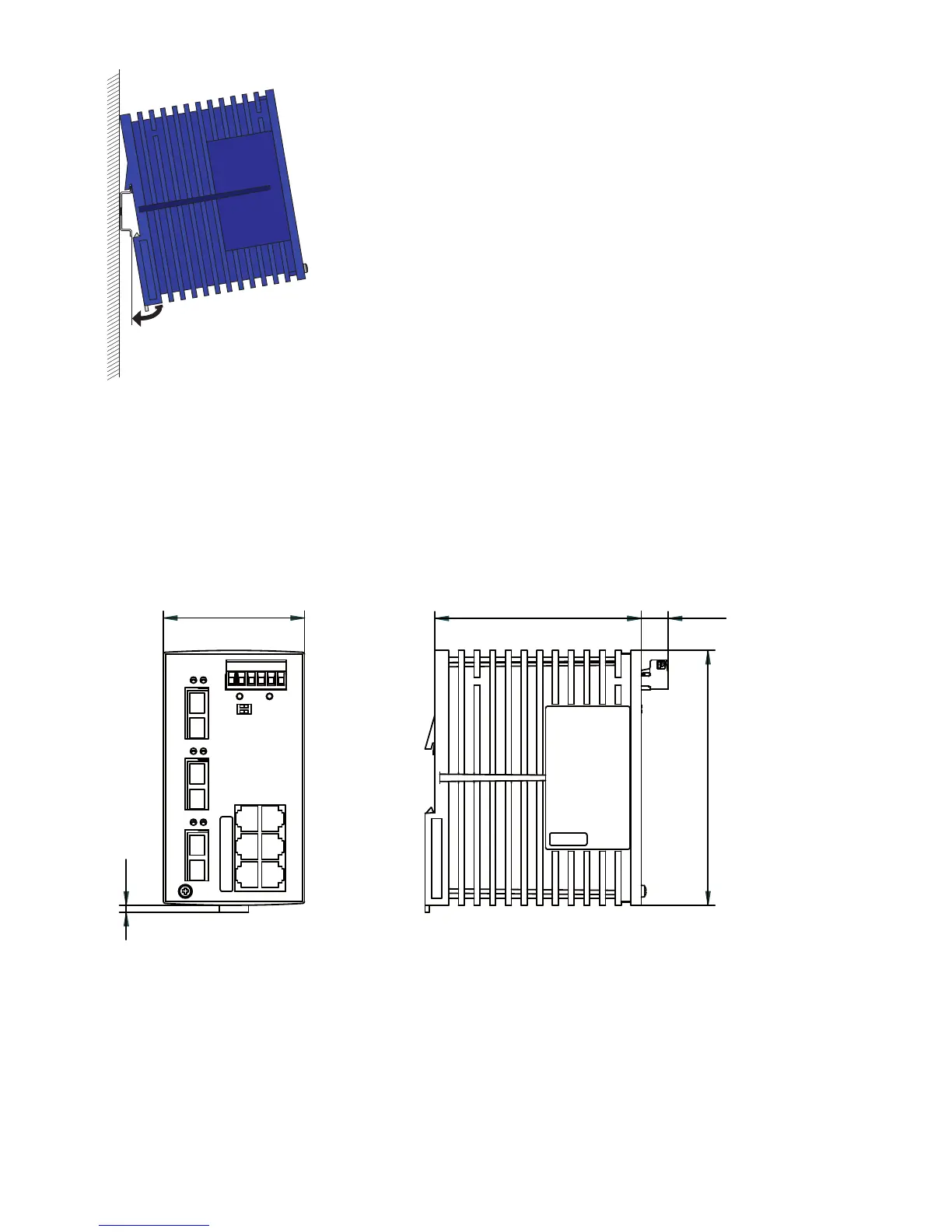

Figure 12: Mounting on the DIN rail
Grounding
The device is grounded by the separate ground screw on the front panel.
2.1.6 Dimension drawings
Figure 13: Dimensions of device variants RS20...U/RS30...U with 8 to max. 10 ports
130
105,3 13,73
3,5
72
