Hirschmann RS30-...U Series User Manual

32
RS20/RS30...U
Release 01 06/2012

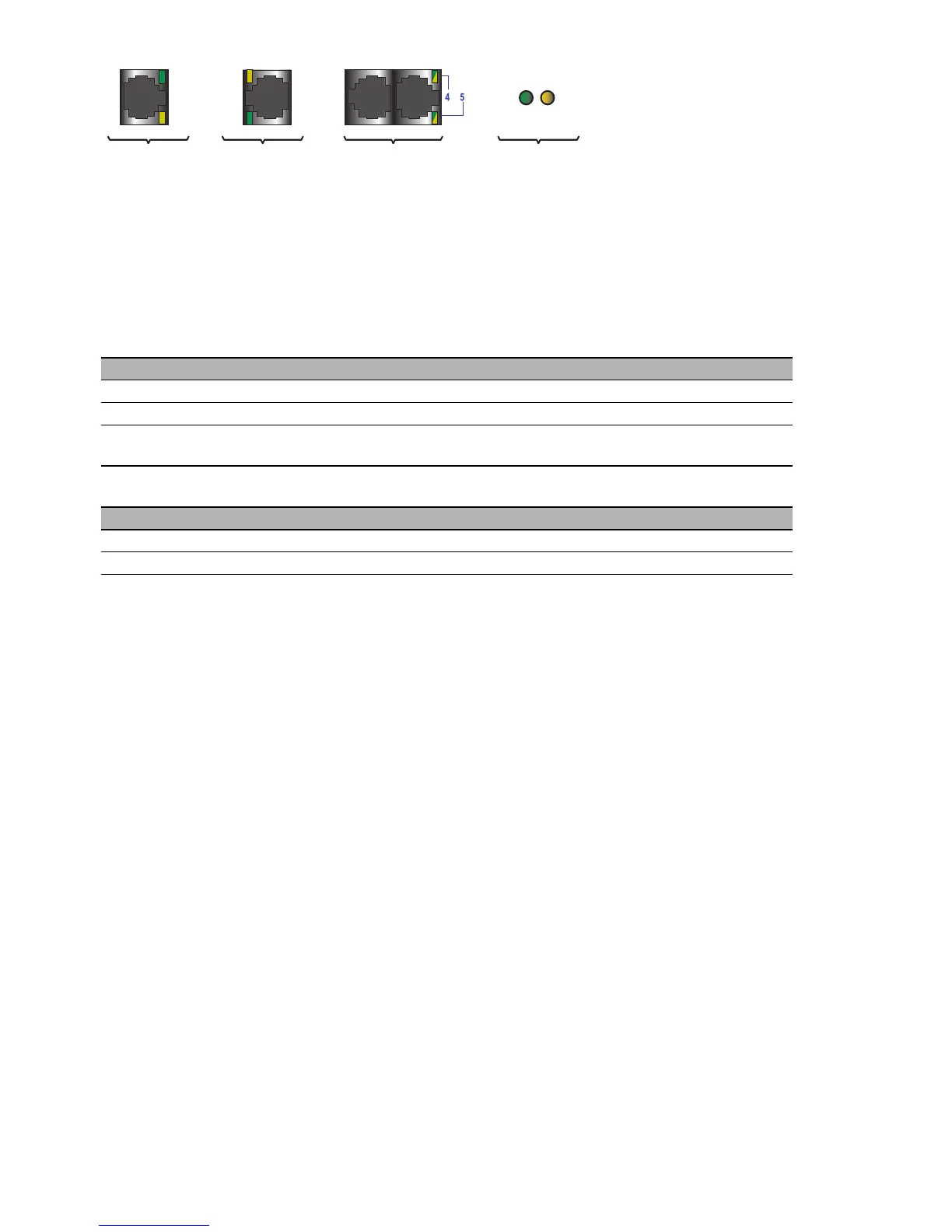

Figure 16: Port status LEDs 
1 – Port status LEDs for isolated or single-row RJ45 sockets: one green
and one yellow LED per port. 
2 – Port status LEDs for double-row RJ45 sockets: one LED per port,
glowing/flashing either green or yellow. 
3 – Port status LEDs for DSC, ST, SFP
2.3 Maintenance
 When designing this device, Hirschmann was largely able to forego using
parts that are subject to waer and tear. The parts subject to wear are
designed to last longer than the lifetime of the product when it is operated
properly. Operate this device according to the specifications (see
“Technical data”).
 Relays are subject to natural wear. This wear depends on the frequency
of the switching operations. Check the resistance of the closed relay
contacts and the switching function depending on the frequency of the
switching operations.
 Hirschmann is continually working to improve and develop our software.
You should regularly check whether there is a new version of the software
that provides you with additional benefits. You will find software
information and downloads on the product pages of the Hirschmann
website.
 Check that the ventilation slots are not obstructed at regular intervals,
depending on the degree of pollution in the operating environment.
LS - link status (green LED)
Not glowing No valid connection.
Glowing green Valid connection.
Not glowing, and flashes
approx. every 5 seconds
Link monitoring is enabled for the port - no valid connection
Glowing green, and goes out
briefly approx. every 5 seconds
Link monitoring is enabled for the port - valid connection
DA - data (yellow LED)
Not glowing No data reception at corresponding port
Flashing yellow Data reception at corresponding port
DA
1
LS
LS DA
1132
LS
1
DA
