 10/100/1000 Mbit/s twisted pair connection
These connections are RJ45 sockets.
10/100/1000 Mbit/s TP ports enable the connection of terminal devices or
independent network segments according to the IEEE 802.3 10BASE-T/
100BASE-TX/1000BASE-T standard.
These ports support:
 Autonegotiation
 Autopolarity
 Autocrossing
Delivery state: autonegotiation activated
The socket housing is electrically connected to the front panel.
The pin assignment corresponds to MDI-X.
 100 Mbit/s F/O connection
In device variants RS20...U, these ports are DSC connectors or ST
connectors.
In device variants RS30...U, these ports are SFP slots.
100 MBit/s F/O ports enable the connection of terminal devices or
independent network segments in compliance with the IEEE 802.3
100BASE-FX standard. 
These ports support:
 Full duplex mode
State on delivery: full duplex FDX

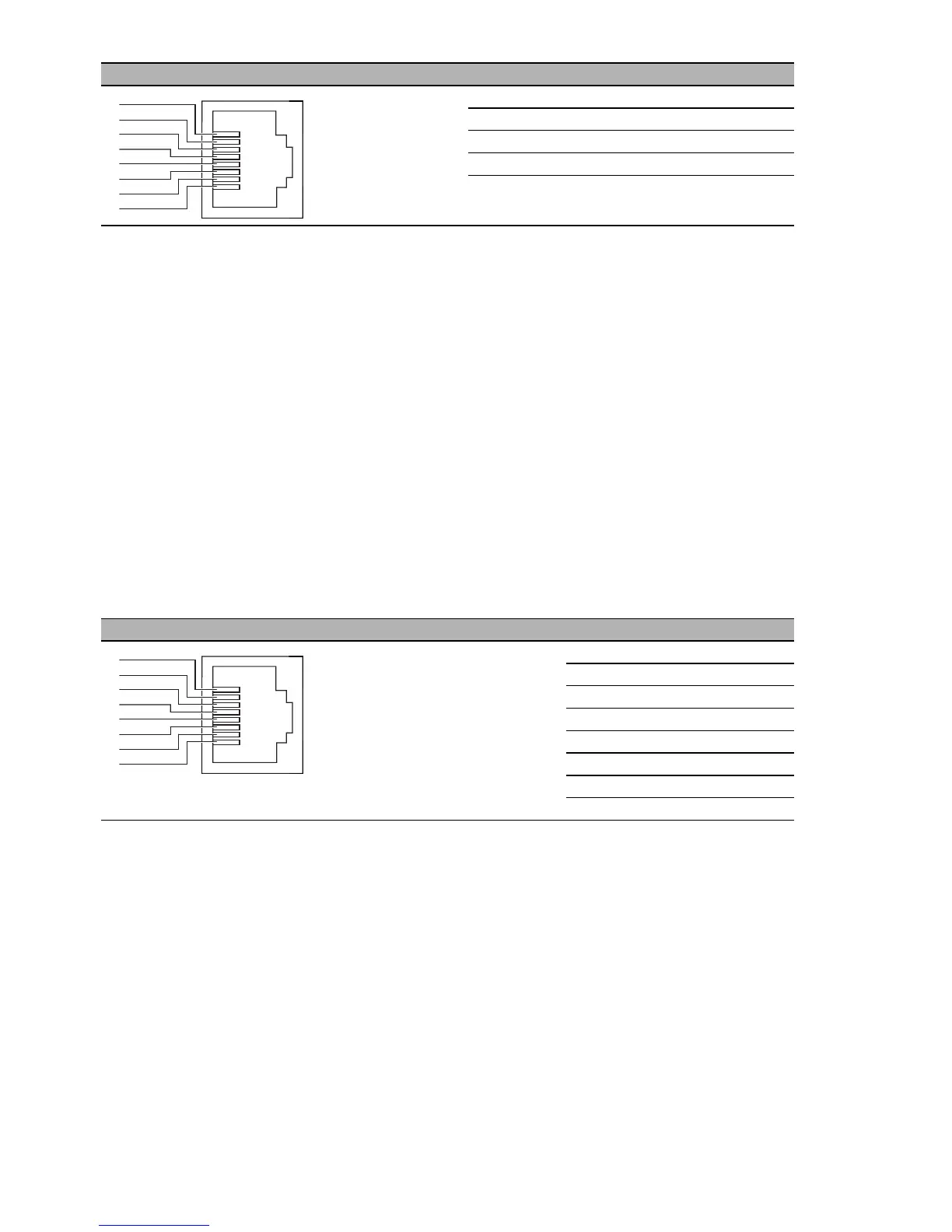

Figure Pin Function
1 RD+ Receive Data +
2 RD- Receive Data -
3 TD+ Transmit Data +
6 TD- Transmit Data -
4,5,7,8 Not used
Table 5: Pin assignment of a TP/TX interface in MDI-X mode, RJ45 socket
Figure Pin Function
1 BI_DB +
2 BI_DB -
3 BI_DA +
4 BI_DD +
5 BI_DD -
6 BI_DA -
7 BI_DC +
8 BI_DC -
Table 6: Pin assignment of a 1000 Mbit/s TP interface, RJ45 socket
8
7
6
5
4
3
2
1
8
7
6
5
4
3
2
1
