Hirschmann RSP 30 User Manual

Installation RSP 20/25/30/35
Release 15 12/2017
53

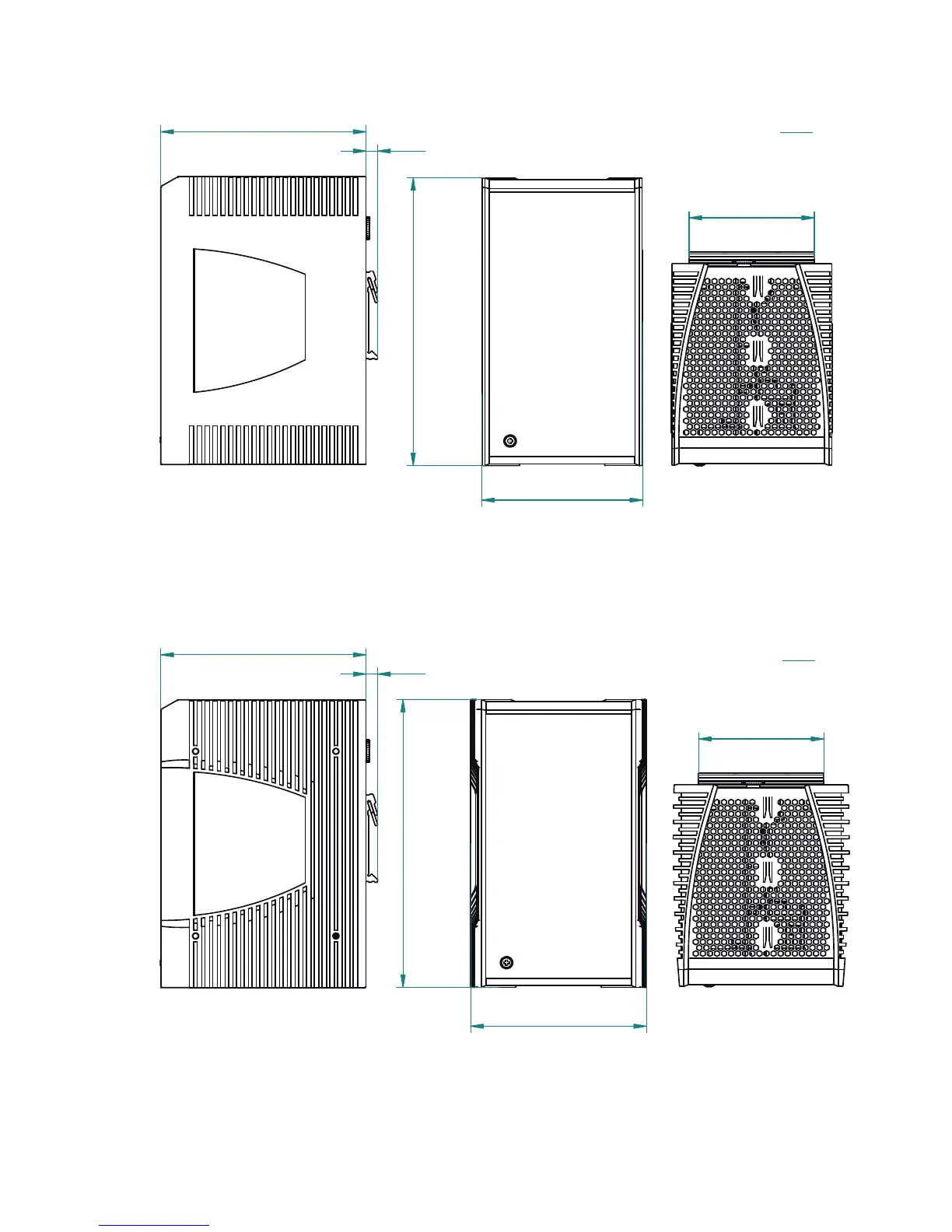

8.3 Dimension drawings
Figure 7: Dimensions of the device variants with operating temperature
characteristic value S. For the characteristic value, cf. “Device name and
product code” on page 19.
Figure 8: Dimensions of device variants with operating temperature characteristic
value E and T. For the characteristic value, cf. “Device name and product
code” on page 19.
mm
inch
70
2.76
4.52
114,7
6,55
0.26
89,9
3.54
163,6
6.44
mm
inch
98,29
3.87
163,6
6.44
70
2.76
4.52
114,7
6,55
0.26
