Hirschmann RSPL 20

22
Installation RSPL 20/30
Release 04 02/2013
100/1000 Mbit/s F/O ports enable the connection of terminal devices or
independent network segments according to the IEEE 802.3 100BASE-
FX/1000BASE-SX/1000BASE-LX standard.
These ports support:
 1000 Mbit/s full duplex
 100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
State on delivery:
 100 Mbit/s full duplex when using a Fast Ethernet SFP transceiver
 1000 Mbit/s full duplex when using a Gigabit Ethernet SFP transceiver
1.6.2 10/100 Mbit/s twisted pair connection
These connections are RJ45 sockets.
10/100 Mbit/s TP ports enable the connection of terminal devices or
independent network segments according to the IEEE 802.3 10BASE-
T/100BASE-TX standard.
These ports support:
 Autonegotiation
 Autopolarity
 Autocrossing (if autonegotiation is activated)
 100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
 10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode
Delivery state: autonegotiation activated
The socket housing is electrically connected to the front panel.
1.6.3 100 Mbit/s F/O connection
These ports are SFP slots.
100 MBit/s F/O ports enable the connection of terminal devices or
independent network segments in compliance with the IEEE 802.3
100BASE-FX standard.
These ports support:
 100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
Default setting: Full duplex

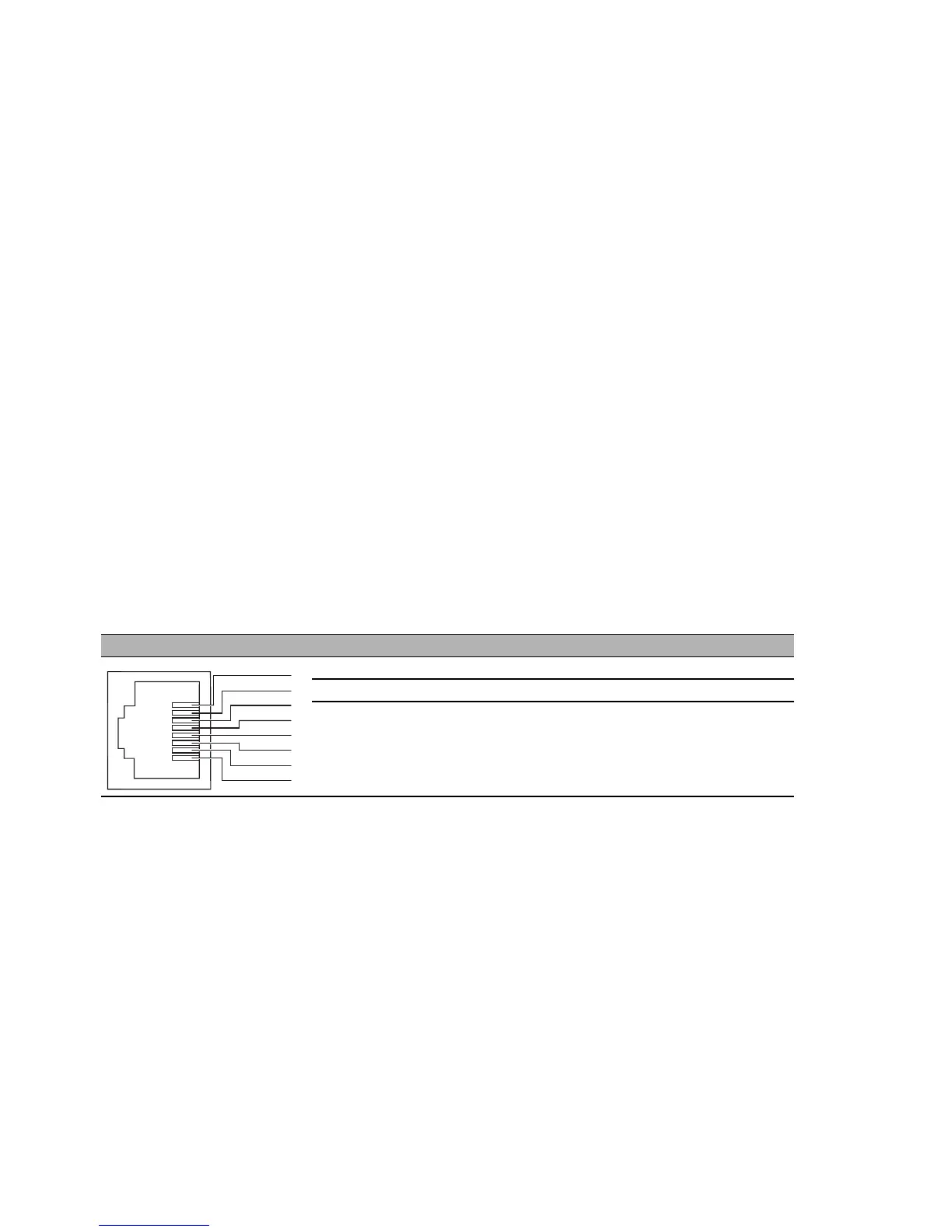

Figure Pin Operation
1+2 One line pair: receiver path
3+6 One line pair: sender path
4,5,7,8 —
Table 6: Pin assignment of a TP/TX interface in MDI-X mode, RJ45 socket
1
2
3
4
5
6
7
8
