Installation RSPL 20/30
Release
04
02/2013
31
To connect supply voltage, perform the following steps:
Ensure the required conditions for connecting the supply voltage are
observed (see page 5 “Supply voltage”).
Remove the power connector from the device.
Connect the protective conductor to the protective conductor terminal.
Connect the lines for the supply voltage to the terminals +/L and −/N.
Operating voltage type CC
You have the option to supply the supply voltage redundantly, with no
load distribution.
Both inputs are separate from one another.

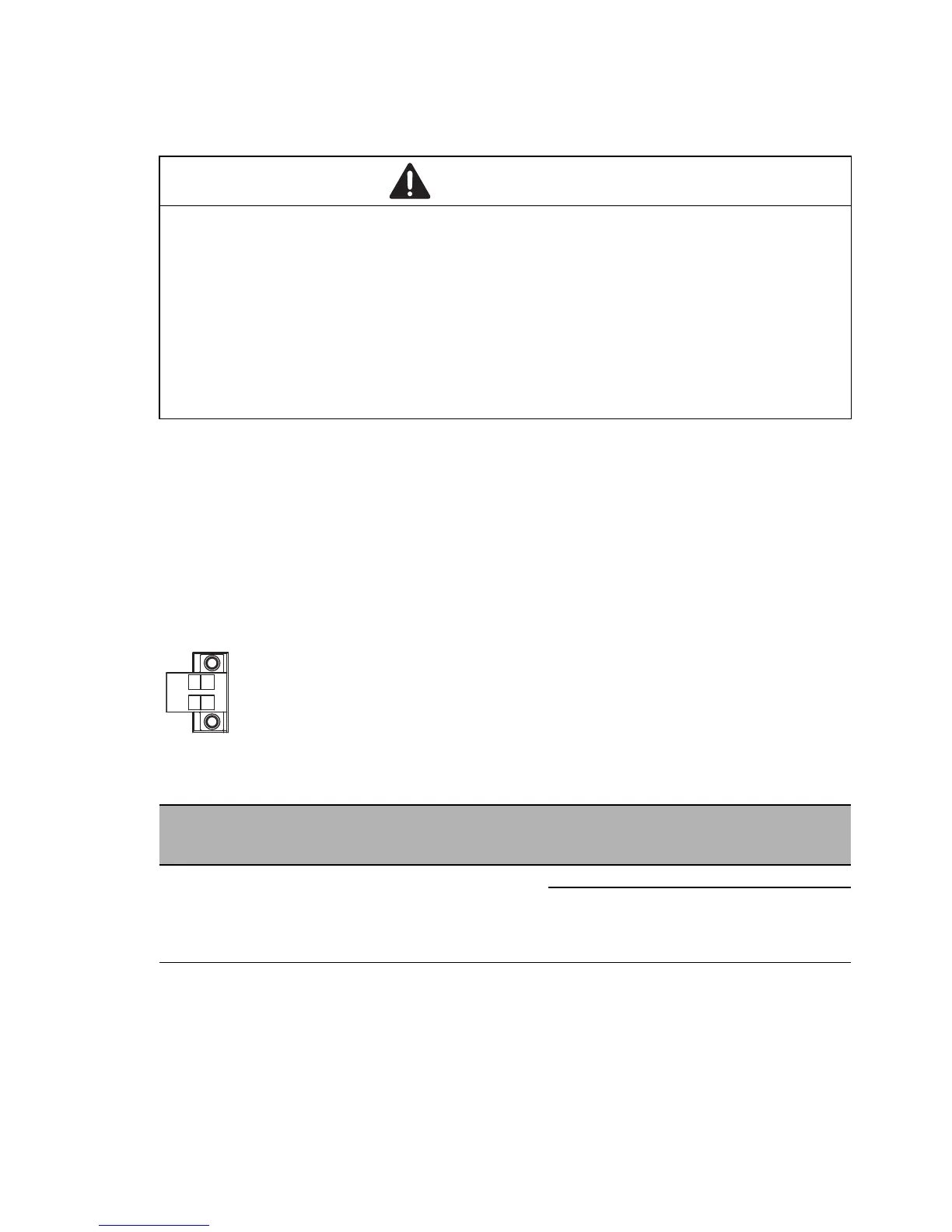

Figure 7: Operating voltage type CC: 2-pin terminal block with screw locking
WARNING
ELECTRIC SHOCK
Only start connecting the supply voltage if all the above mentioned
requirements are fulfilled.
See “Supply voltage” on page 5.
Only install this device in a switch cabinet or in an operating site with limited
access, to which only maintenance staff have access.
Failure to follow these instructions can result in death, serious injury,
or equipment damage.
Type of the voltages
that can be
connected
Size of the supply voltage Connections
DC voltage Rated voltage range DC
24 V ... 48 V Class 2
Voltage range DC incl.
maximum tolerances
18 V ... 60 V Class 2
+ Plus terminal of the supply voltage
− Minus terminal of the supply
voltage
Table 9: Operating voltage type CC: Type and size of the supply voltage,
connections
