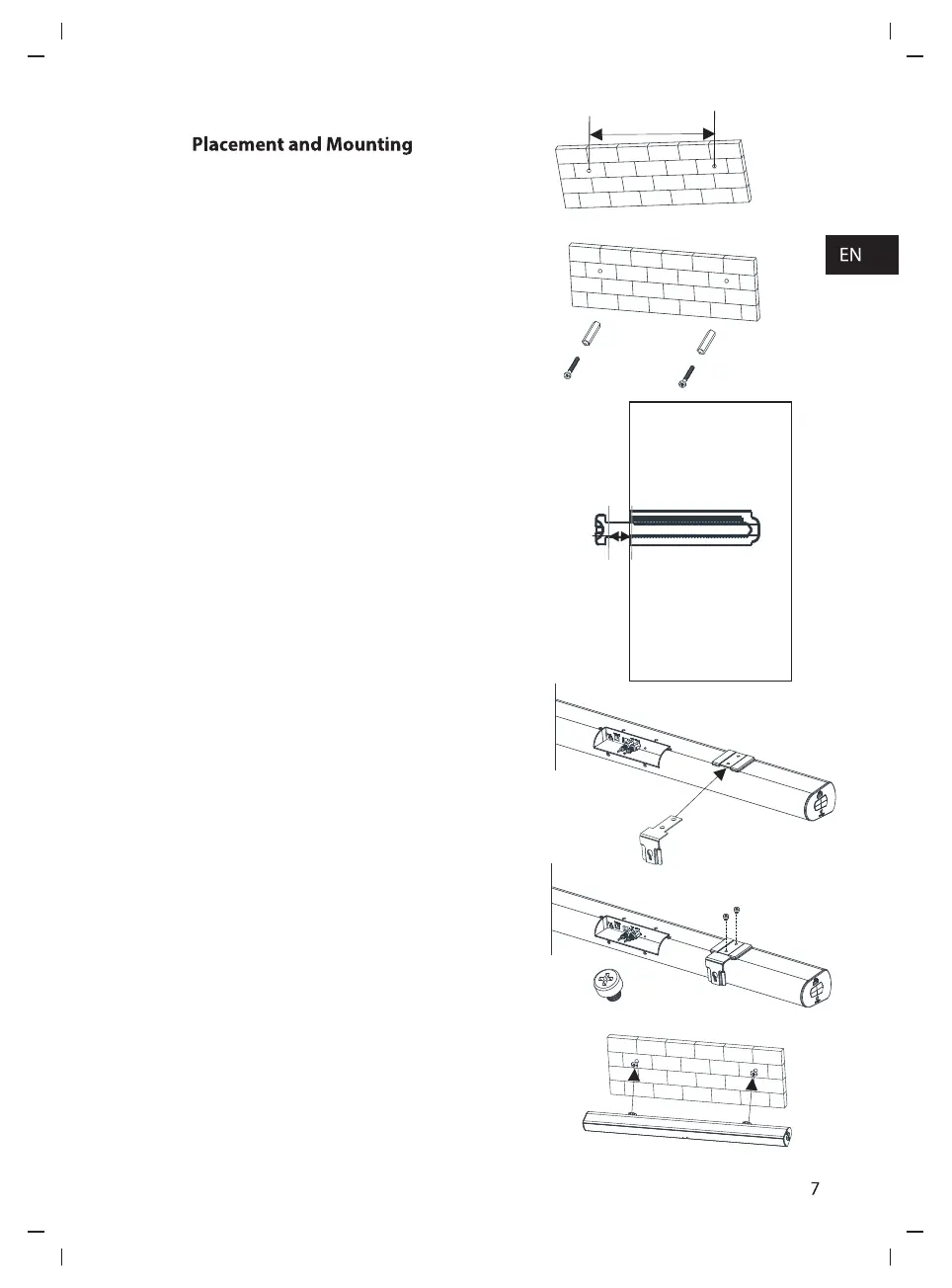

Hisense HS212 - Placement and Mounting; Wall Mounting Guide

Mounting soundbar on a wall
In order to prevent injuries,the sound base device
must be securely fasten to the wall in accordance
with the below installation instructions.
1.Drill the two holes(about 6mm diameter ) in the wall
and keep the distance between drill holes of the
sound base is 500mm.As shown in the picture on the
right(diagram 1).
2. Insert the two plugs supplied into two drilled holes
and then insert two screws supplied into two holes
and tighten.As shown in the picture on the
right(diagram 2).
3.
heads and wall.As shown in the picture on the
right(diagram 3).
Take care to leave 4 mm between the screw
500mm
4mm
Diagram 1
Diagram 2
Diagram 3
4.Insert the wall-mounting bracket supplied
into the pedestal of the sound base.As shown
in the picture on the right(diagram 4).
5.Use the bracket screws supplied to insert
the wall-mounting bracket hole and
tighten.As shown in the picture on the
right(diagram 5).
6.Use the assembled sound base to hang on
the setscrews on the wall .As shown in the
picture on the right(diagram 6).
Diagram 4
Diagram 5
Diagram 6
