3. Refit the fine filter and turn the lock ring clockwise to its stop position. Check that the edges seal
properly.
Remember to refit the coarse filter!
NOTE!
Dishwashing results may be affected if the coarse and fine filters are incorrectly fitted. The
dishwasher must not be used without the filters in place!

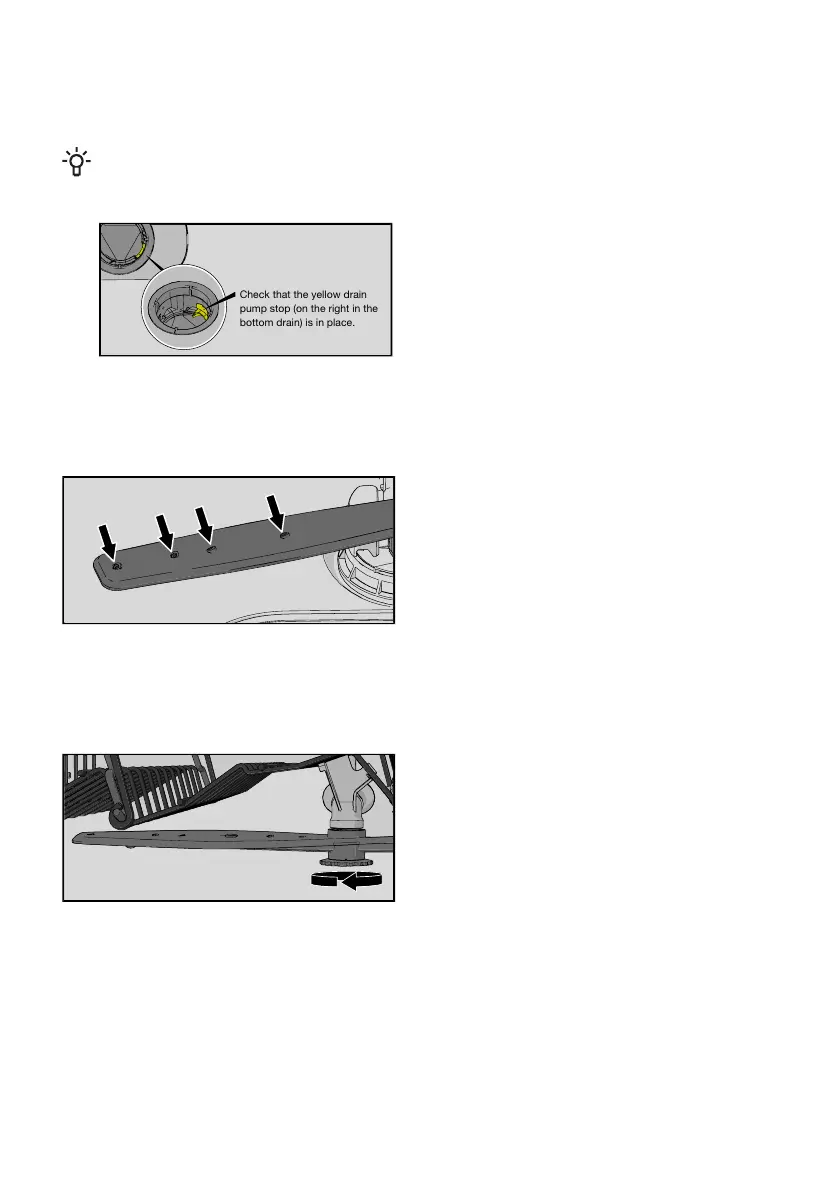

Check that the yellow drain
pump stop (on the right in the
bottom drain) is in place.
Cleaning the spray arms
Holes and bearings can become blocked. Remove debris using a needle or similar item. The spray
arms have holes on the bottom.
Spray arms can be removed for cleaning. Remember to put them firmly back into place afterward.
Upper spray arm
• Pull out the upper basket.
• Unscrew the spray arm bearings counterclockwise to remove the spray arm from the upper basket.
22
