4. Adjust the front feet by turning them clockwise to raise and counterclockwise to lower the
dishwasher.
5. Verify there is an air gap of at least 0.1" (3 mm) between the underside of the countertop and the
top edge of the dishwasher.
6. Slide the dishwasher into desired location.
7. Check that the machine is installed such that the door opens freely, otherwise door lock functionality
may be disrupted.
8. Make any final adjustments to the front feet (the dishwasher may lean no more than 0.2" (5 mm)).

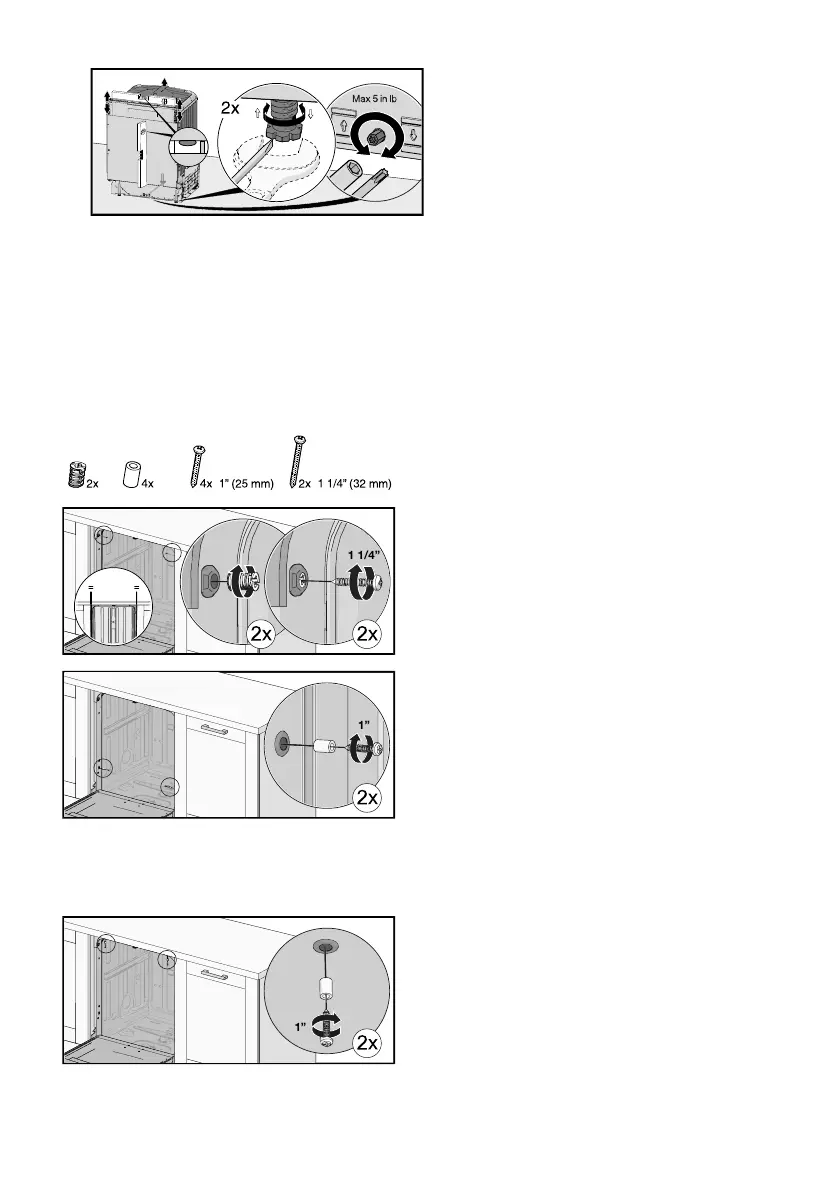

5. Screwing the dishwasher into place
After fastening the machine, check that the front feet still touch the floor.
Screw into the countertop
Alternatively, the dishwasher can be screwed into the underside of the countertop.
33
