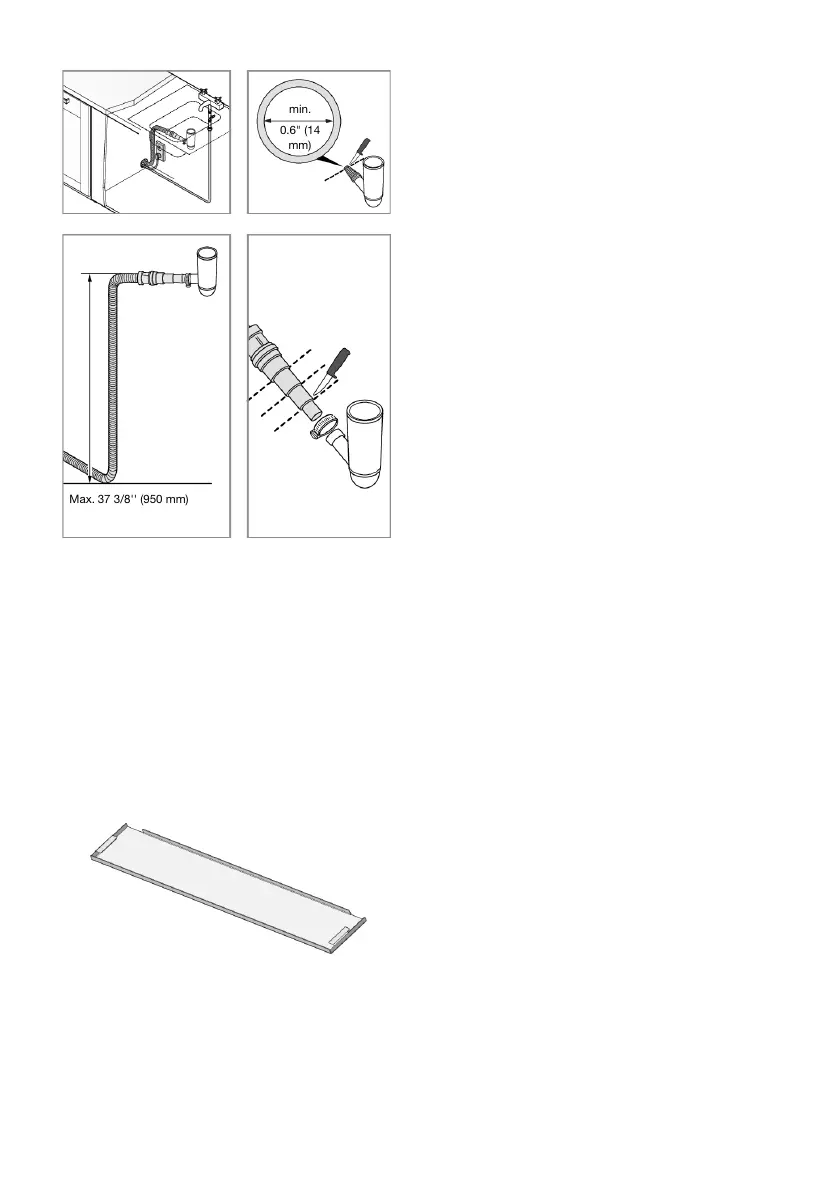

The drain hose can also be connected to a connection nipple on the sink unit's water trap. The
connection nipple must have an internal diameter of at least 0.6" (14 mm).
The drain hose may be extended by a maximum of 118" (3 m) (the total length of the drain hose must
not exceed 177" (4.5 m)). Any joints and connecting pipes must have an internal diameter of at least
0.6" (14 mm). However, the drain hose should ideally be replaced with a new hose without joints.
No part of the drain hose may be more than 37.4" (950 mm) above the bottom of the dishwasher.
Attach the drain hose with a hose clamp. Ensure that the drain hose has no kinks.
9. Dishwasher toe kick
The dishwasher is supplied with a toe kick.
36
